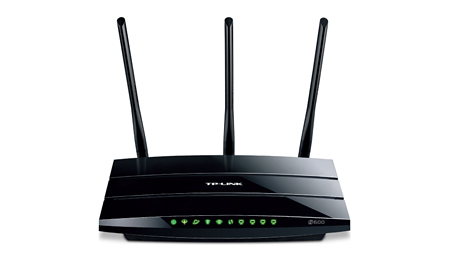

TP-Link TD-W8980B wireless router Gigabit Ethernet Dual-band (2.4 GHz

TP-Link TD-W8980B wireless router Gigabit Ethernet Dual-band (2.4 GHz

5 GHz) Black

Model TD-W8980BEAN 5054484241676

64 specifications

SpeedWi-Fi 4 (802.11n)
ColourBlack
Ethernet WANYes
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
3GNo
Ethernet LAN (RJ-45) ports4

See all specifications

Overview

Speed: Wi-Fi 4 (802.11n)
Colour: Black
Ethernet WAN: Yes
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
3G: No
Ethernet LAN (RJ-45) ports: 4

Brand: TP-Link
Category: Wireless Router
Model: TD-W8980B
Part number: TD-W8980B
EAN / UPC: 5054484241676, 5054533241671, 6935364061135, 6935364091088
Also known as: TP-Link TD-W8980B wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black

Specifications

64 specifications in 18 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	Yes

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
VPN tunnels quantity	10
VPN support	PPTP, L2TP

Mobile network

Specification	Value
3G	No
4G	No

DSL features

Specification	Value
ADSL2+	Yes
DSL specification	G.992.1, G.994.1, G.995.1, G.992.3, G.992.5

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
RJ-11 ports quantity	1
DC-in jack	Yes

Management features

Specification	Value
Web-based management	Yes
Quality of Service (QoS) support	Yes
Reset button	Yes

Security

Specification	Value
Security algorithms	128-bit AES, 128-bit WEP, 192-bit AES, 256-bit AES, 3DES, 64-bit WEP, DES, WPA, WPA-PSK, WPA2, WPA2-PSK
Authentication method	MD5, SHA-1
Firewall	Yes
Stateful Packet Inspection (SPI)	Yes
Filtering	Yes
MAC address filtering	Yes
URL filtering	Yes
DMZ support	Yes
Network address translation (NAT)	Yes

Protocols

Specification	Value
Universal Plug and Play (UPnP)	Yes
Routing protocols	RIP-1, RIP-2

Design

Specification	Value
Product colour	Black
On/off switch	Yes

Packaging content

Specification	Value
Cables included	LAN (RJ-45), Phone (RJ-11)
AC adapter included	Yes
Quick start guide	Yes

Certificates

Specification	Value
Certification	CE, FCC, RoHS

Antenna

Specification	Value
Antenna design	Internal & external
Antenna connector type	RP-SMA
Antennas quantity	5
Detachable antenna(s)	Yes

Features

Specification	Value
Firmware upgradeable	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C

System requirements

Specification	Value
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes

Weight & dimensions

Specification	Value
Depth	160.6 mm
Height	32.5 mm
Width	243 mm

Other features

Specification	Value
Mobile network connection	No
Filtering description	MAC/IP/URL
Frequency band	2.4 & 5
Frequency range	2.4 - 5 GHz
Rack mounting	No
USB ports quantity	2
USB version	2.0
WLAN data transfer rates supported	300 Mbit/s
xDSL connection	Yes
