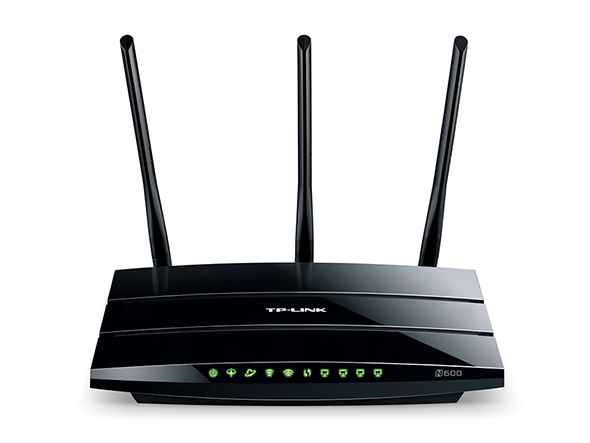

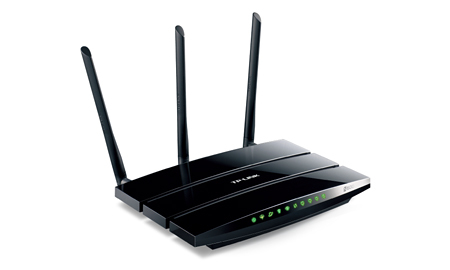

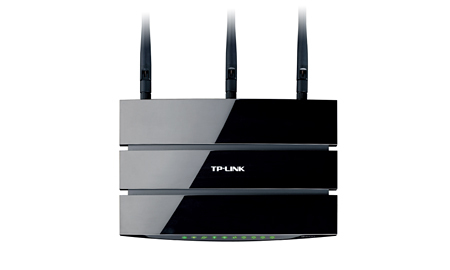

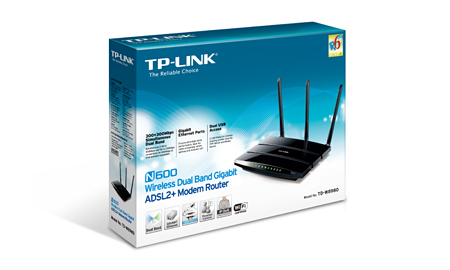

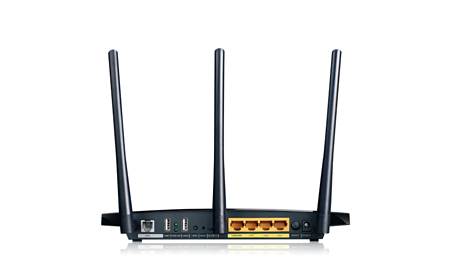

TP-Link TD-W8980 wireless router Gigabit Ethernet Dual-band (2.4 GHz

TP-Link TD-W8980 wireless router Gigabit Ethernet Dual-band (2.4 GHz

5 GHz)

Model TD-W8980EAN 5054629178133

54 specifications

SpeedWi-Fi 4 (802.11n)
DSL WANYes
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
3GNo
Ethernet LAN (RJ-45) ports4
Authentication methodMD5, SHA-1

See all specifications

Overview

Speed: Wi-Fi 4 (802.11n)
DSL WAN: Yes
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
3G: No
Ethernet LAN (RJ-45) ports: 4
Authentication method: MD5, SHA-1

Brand: TP-Link
Category: Wireless Router
Model: TD-W8980
Part number: TD-W8980
EAN / UPC: 5054629178133, 021112581560, 088037808882, 132017881058 +10 more
Also known as: TP-Link TD-W8980 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz)

Specifications

54 specifications in 19 groups

WAN connection

Specification	Value
DSL WAN	Yes

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
VPN tunnels quantity	10
VPN support	PPTP, L2TP

Mobile network

Specification	Value
3G	No
4G	No

DSL features

Specification	Value
ADSL2+	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
RJ-11 ports quantity	1
DC-in jack	Yes

Management features

Specification	Value
Web-based management	Yes
Quality of Service (QoS) support	Yes
Reset button	Yes

Security

Specification	Value
Security algorithms	128-bit AES, 128-bit WEP, 256-bit AES, 3DES, 64-bit WEP, DES, WPA, WPA-PSK, WPA2, WPA2-PSK
Authentication method	MD5, SHA-1
Stateful Packet Inspection (SPI)	Yes
Filtering	Yes
MAC address filtering	Yes
Network address translation (NAT)	Yes

Protocols

Specification	Value
Management protocols	SNMP V1/V2C
Supported network protocols	ATM/PPP

Design

Specification	Value
On/off switch	Yes

Packaging content

Specification	Value
Cables included	LAN (RJ-45), Phone (RJ-11)
AC adapter included	Yes

Certificates

Specification	Value
Certification	CE, FCC, RoHS

Antenna

Specification	Value
Antenna design	Internal & external
Antenna connector type	RP-SMA
Antennas quantity	5

Features

Specification	Value
Firmware upgradeable	Yes

Power

Specification	Value
Output voltage	12 V

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C

System requirements

Specification	Value
Linux operating systems supported	Yes
Mac operating systems supported	Yes

Weight & dimensions

Specification	Value
Depth	160.6 mm
Height	32.5 mm
Width	243 mm

Other features

Specification	Value
Mobile network connection	No
Frequency band	2.4 & 5
Input current	1.5 A
Rack mounting	No
USB ports quantity	2
WLAN data transfer rates supported	300 Mbit/s
xDSL connection	Yes
