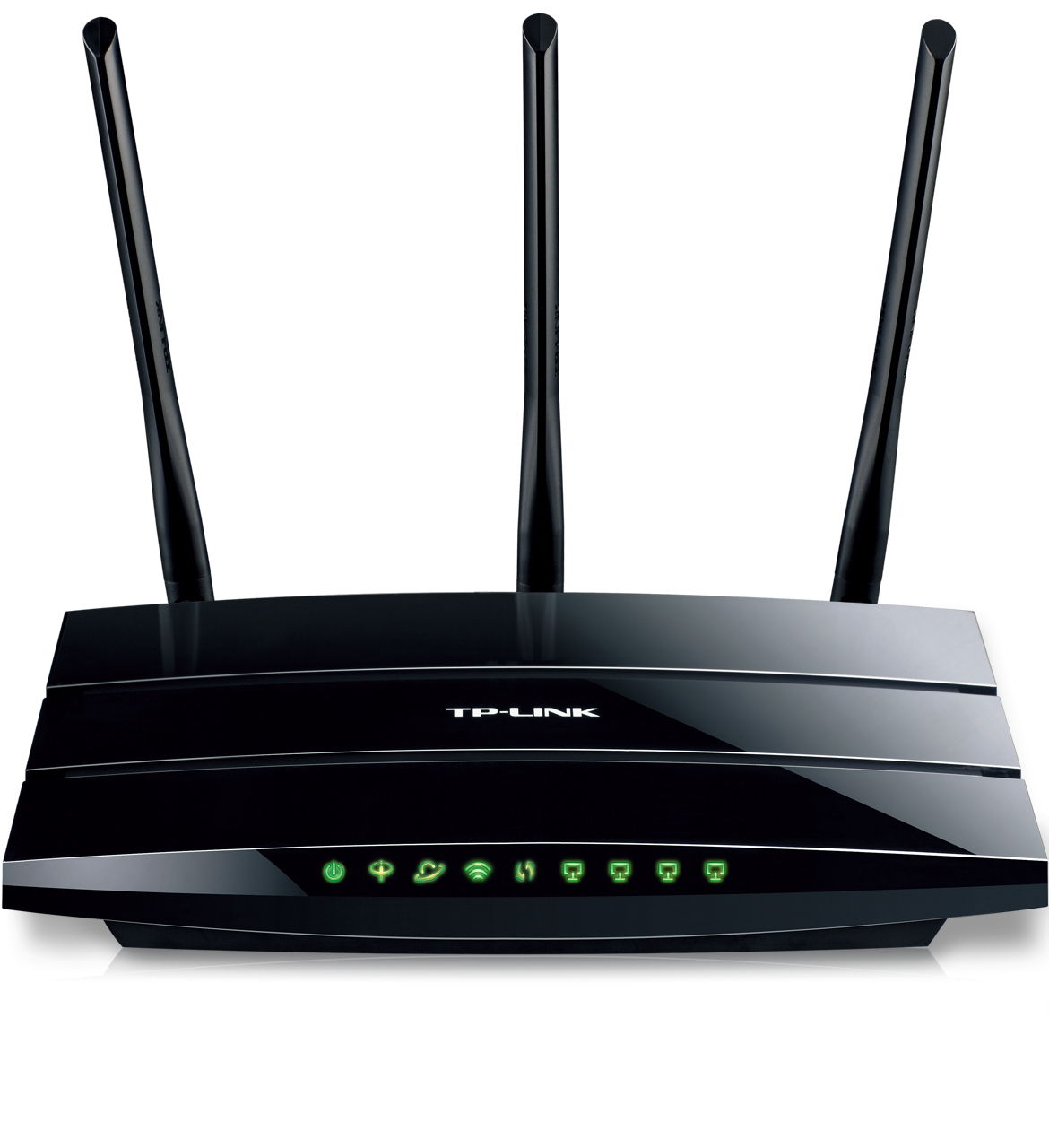

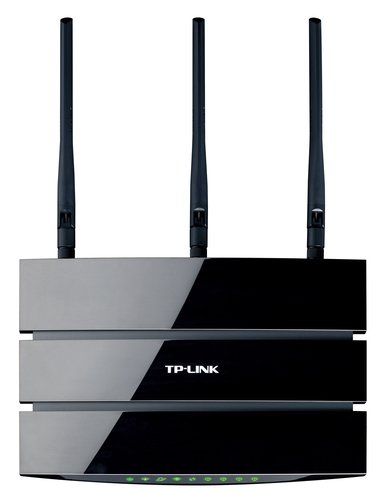

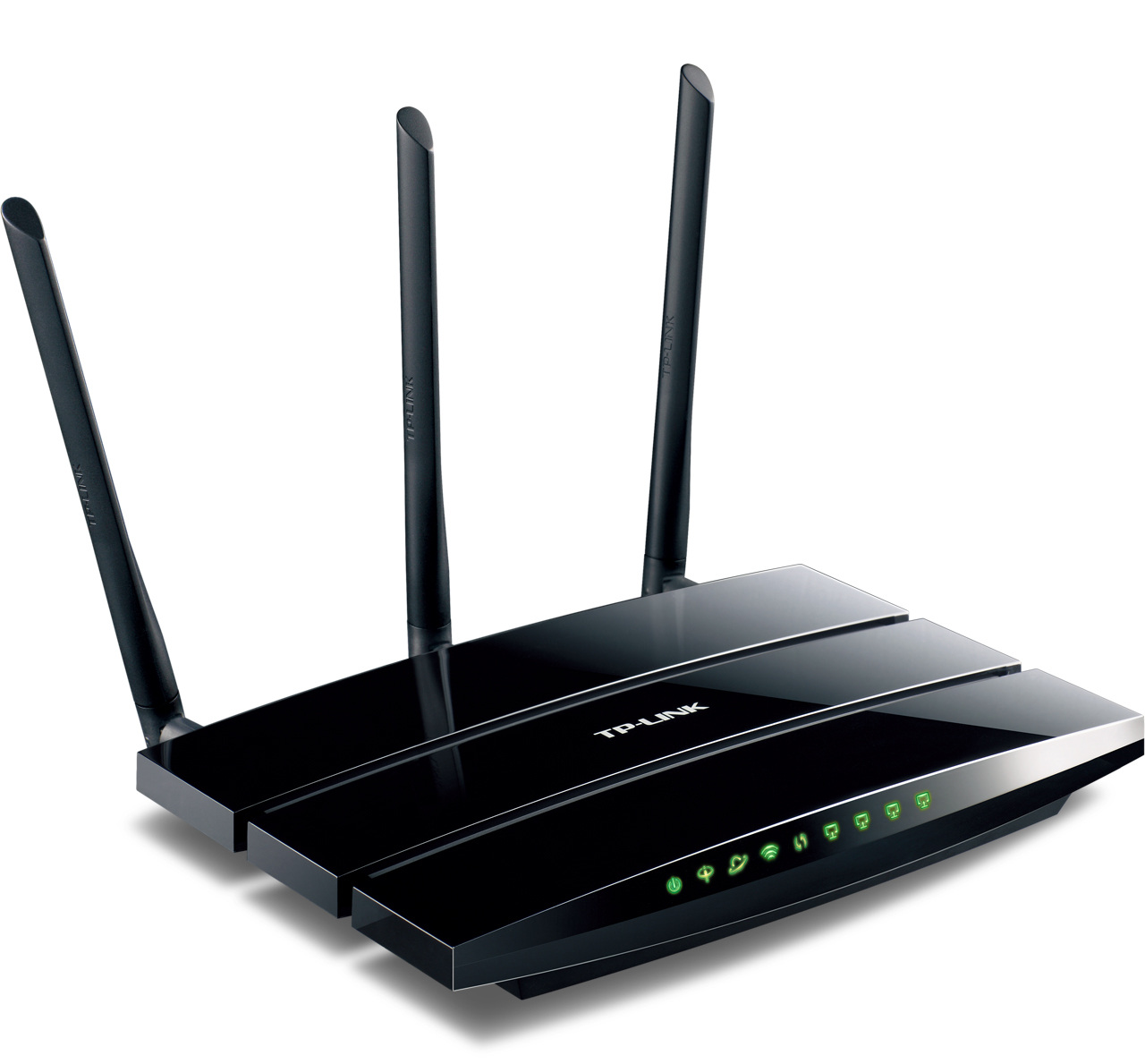

TP-Link TD-W8970B wireless router Gigabit Ethernet

TP-Link TD-W8970B wireless router Gigabit Ethernet

Model TD-W8970BPart no. TD-W8970B (DE)EAN 8592978042943

55 specifications

SpeedWi-Fi 4 (802.11n)
DSL WANYes
3GNo
Ethernet LAN (RJ-45) ports4
Antenna designExternal
Operating relative humidity (H-H)10 - 90%

See all specifications

Overview

Speed: Wi-Fi 4 (802.11n)
DSL WAN: Yes
3G: No
Ethernet LAN (RJ-45) ports: 4
Antenna design: External
Operating relative humidity (H-H): 10 - 90%

Brand: TP-Link
Category: Wireless Router
Model: TD-W8970B
Part numbers: TD-W8970B (DE), TD-W8970B
EAN / UPC: 8592978042943, 6935364060992, 8592978041885, 845973060992 +1 more
Also known as: TP-Link TD-W8970B wireless router Gigabit Ethernet

Specifications

55 specifications in 16 groups

WAN connection

Specification	Value
DSL WAN	Yes

Wireless LAN features

Specification	Value
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u
VPN support	PPTP, L2TP, IPSec Pass-through

Mobile network

Specification	Value
3G	No
4G	No

DSL features

Specification	Value
ADSL2+	Yes

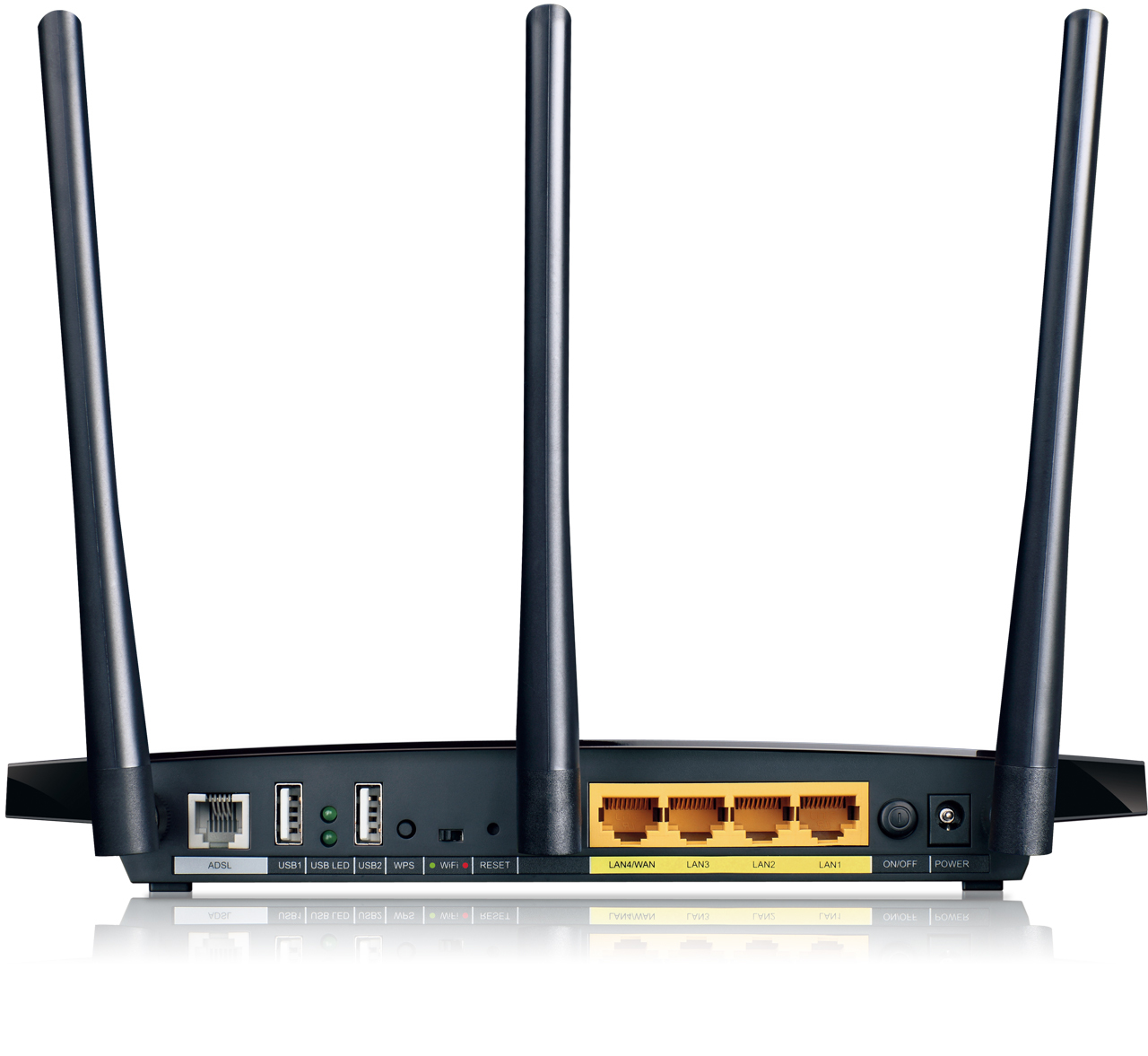

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
RJ-11 ports quantity	1
DC-in jack	Yes

Management features

Specification	Value
Web-based management	Yes
Quality of Service (QoS) support	Yes
Reset button	Yes

Security

Specification	Value
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Stateful Packet Inspection (SPI)	Yes
Filtering	Yes
MAC address filtering	Yes
DMZ support	Yes
Network address translation (NAT)	Yes

Protocols

Specification	Value
Universal Plug and Play (UPnP)	Yes
Routing protocols	RIP-1, RIP-2

Design

Specification	Value
LED indicators	Yes
On/off switch	Yes

Packaging content

Specification	Value
Cables included	LAN (RJ-45), Phone (RJ-11)
AC adapter included	Yes
Quick start guide	Yes

Certificates

Specification	Value
Certification	CE, FCC, RoHS, IPv6

Antenna

Specification	Value
Antenna design	External
Antenna connector type	RP-SMA
Antenna gain level (max)	5 dBi
Antennas quantity	3
Detachable antenna(s)	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C

System requirements

Specification	Value
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes

Other features

Specification	Value
Mobile network connection	No
Filtering description	MAC, IP, URL
Frequency band	2.4 GHz
Frequency range	2.4 - 2.4835 GHz
Rack mounting	No
Supported WAN type	Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.994.1 (G.hs), ITU-T G.995.1, ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.5
USB ports quantity	2
USB version	2.0
WLAN data transfer rates supported	300 Mbit/s
xDSL connection	Yes
