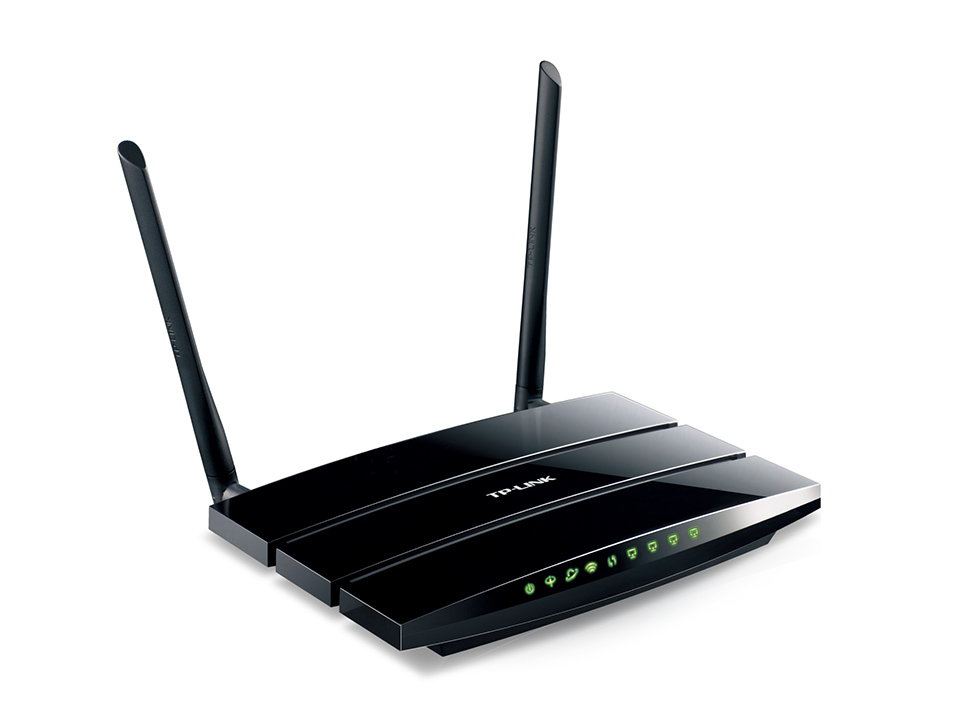

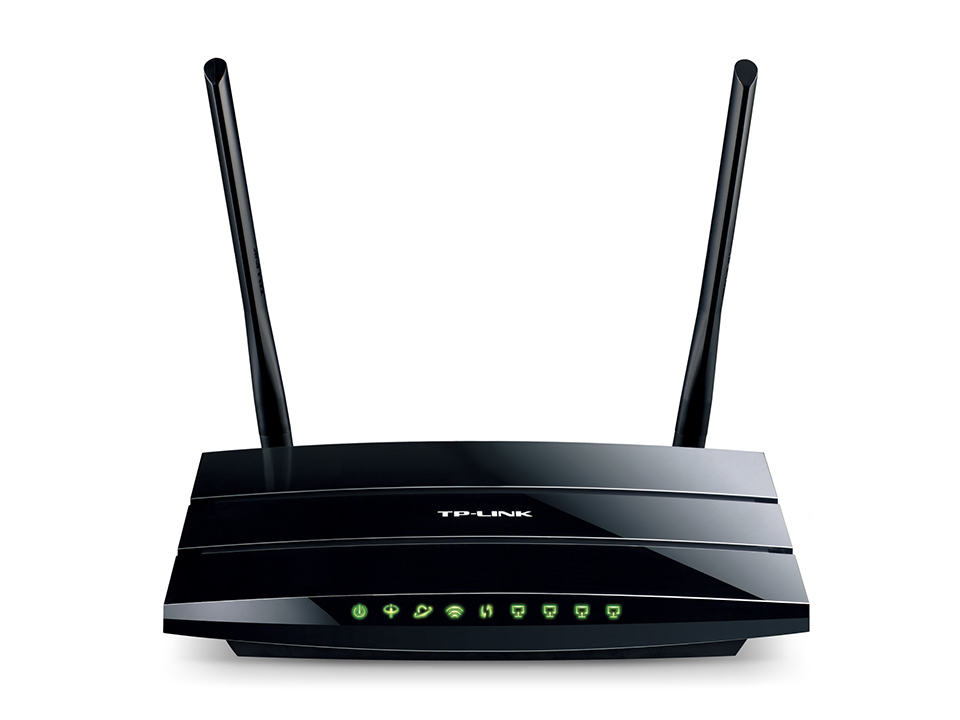

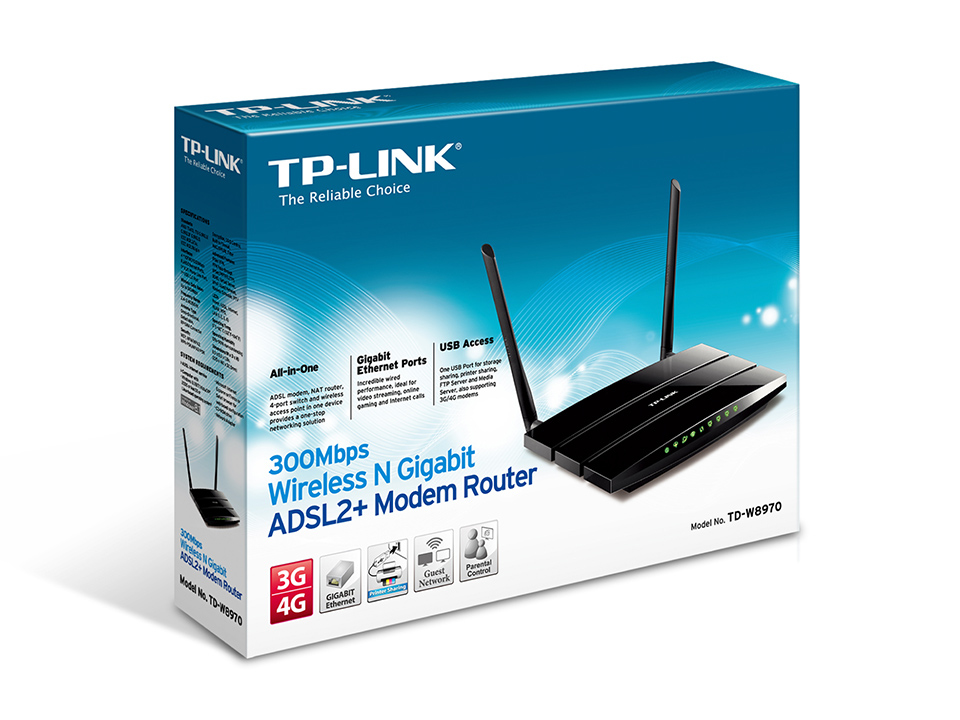

TP-Link TD-W8970 wireless router Gigabit Ethernet Black

Model TD-W8970Part no. TD-W8970 V1EAN 5054230491706

66 specifications

SpeedWi-Fi 4 (802.11n)
ColourBlack
DSL WANYes
Ethernet LAN (RJ-45) ports4
Authentication methodMD5, SHA-1
Antenna designExternal

See all specifications

Overview

Speed: Wi-Fi 4 (802.11n)
Colour: Black
DSL WAN: Yes
Ethernet LAN (RJ-45) ports: 4
Authentication method: MD5, SHA-1
Antenna design: External

Brand: TP-Link
Category: Wireless Router
Model: TD-W8970
Part numbers: TD-W8970 V1, TD-W8970
EAN / UPC: 5054230491706, 115971150378, 151903613825, 163120911264 +13 more
Also known as: TP-Link TD-W8970 wireless router Gigabit Ethernet Black

Specifications

66 specifications in 17 groups

WAN connection

Specification	Value
DSL WAN	Yes

Wireless LAN features

Specification	Value
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
VPN tunnels quantity	10
VPN support	PPTP, L2TP, IPSec Pass-through

DSL features

Specification	Value
ADSL2+	Yes
Internal modem	Yes

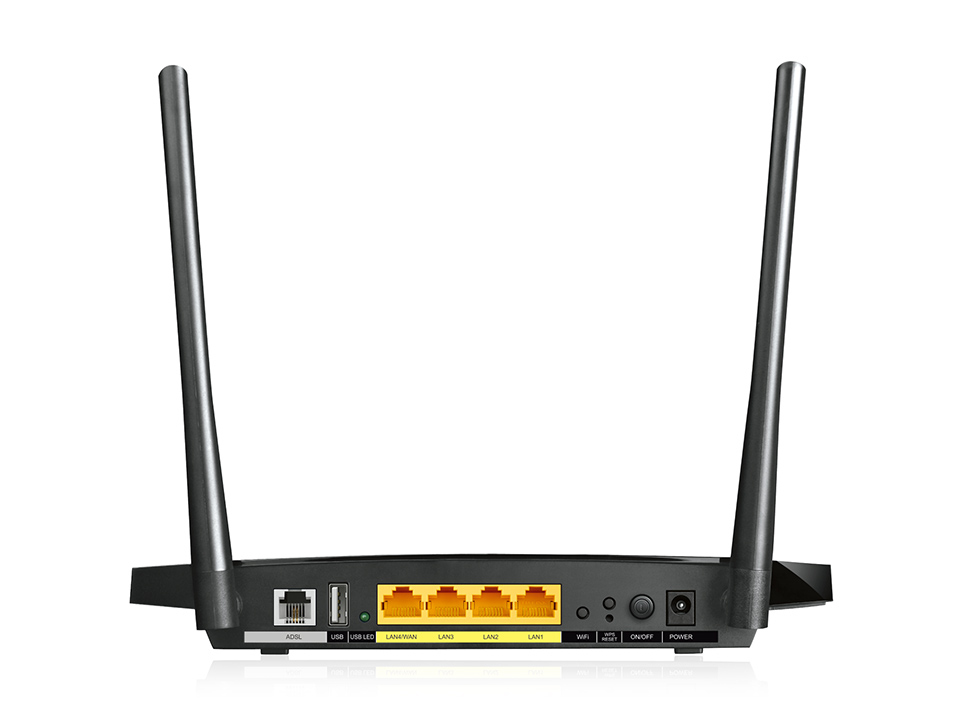

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
RJ-11 ports quantity	1
DC-in jack	Yes

Management features

Specification	Value
Web-based management	Yes
Quality of Service (QoS) support	Yes
Reset button	Yes

Security

Specification	Value
Security algorithms	128-bit AES, 128-bit WEP, 256-bit AES, 3DES, 64-bit WEP, DES, MD5, SHA-1, SSL/TLS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS
Authentication method	MD5, SHA-1
Firewall	Yes
Stateful Packet Inspection (SPI)	Yes
Filtering	Yes
MAC address filtering	Yes
IP address filtering	Yes
URL filtering	Yes
DMZ support	Yes
Network address translation (NAT)	Yes
NAT functionality	Yes

Protocols

Specification	Value
Universal Plug and Play (UPnP)	Yes
Routing protocols	RIP-1, RIP-2
Management protocols	SNMP v1/v2c
Supported network protocols	DHCP, ATM/PPP

Design

Specification	Value
Product colour	Black
LED indicators	Yes

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes

Certificates

Specification	Value
Certification	CE, FCC, RoHS, IPv6

Antenna

Specification	Value
Antenna design	External
Antenna connector type	RP-SMA
Antenna gain level (max)	5 dBi
Antennas quantity	2
Detachable antenna(s)	Yes

Power

Specification	Value
Power source type	DC

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C

System requirements

Specification	Value
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes

Weight & dimensions

Specification	Value
Depth	140 mm
Height	32.5 mm
Width	225 mm

Other features

Specification	Value
Compatibility	IPv6
Filtering description	MAC / IP / URL
Frequency band	2.4 GHz
Frequency range	2.4 - 2.4835 GHz
Input current	1.5 A
Input voltage	12 V
Rack mounting	No
USB ports quantity	1
USB version	2.0
WLAN data transfer rates supported	300 Mbit/s
xDSL connection	Yes
