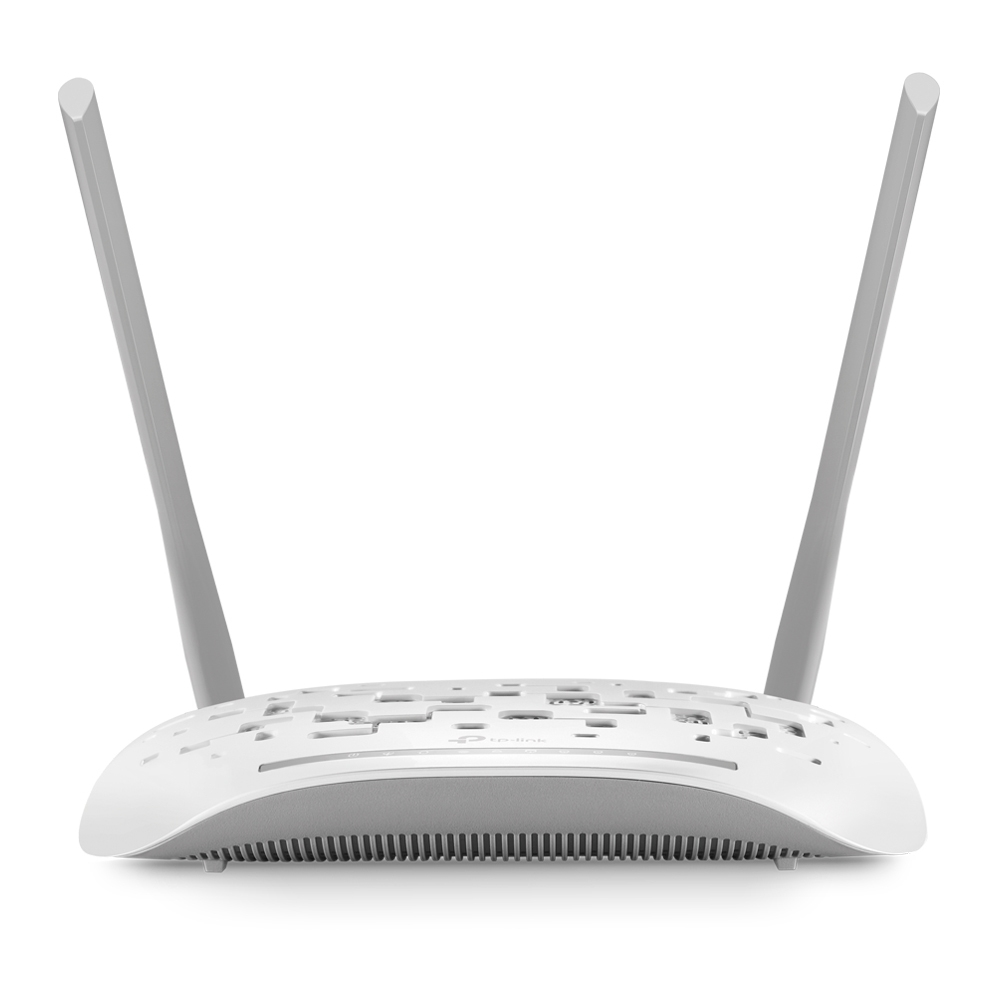

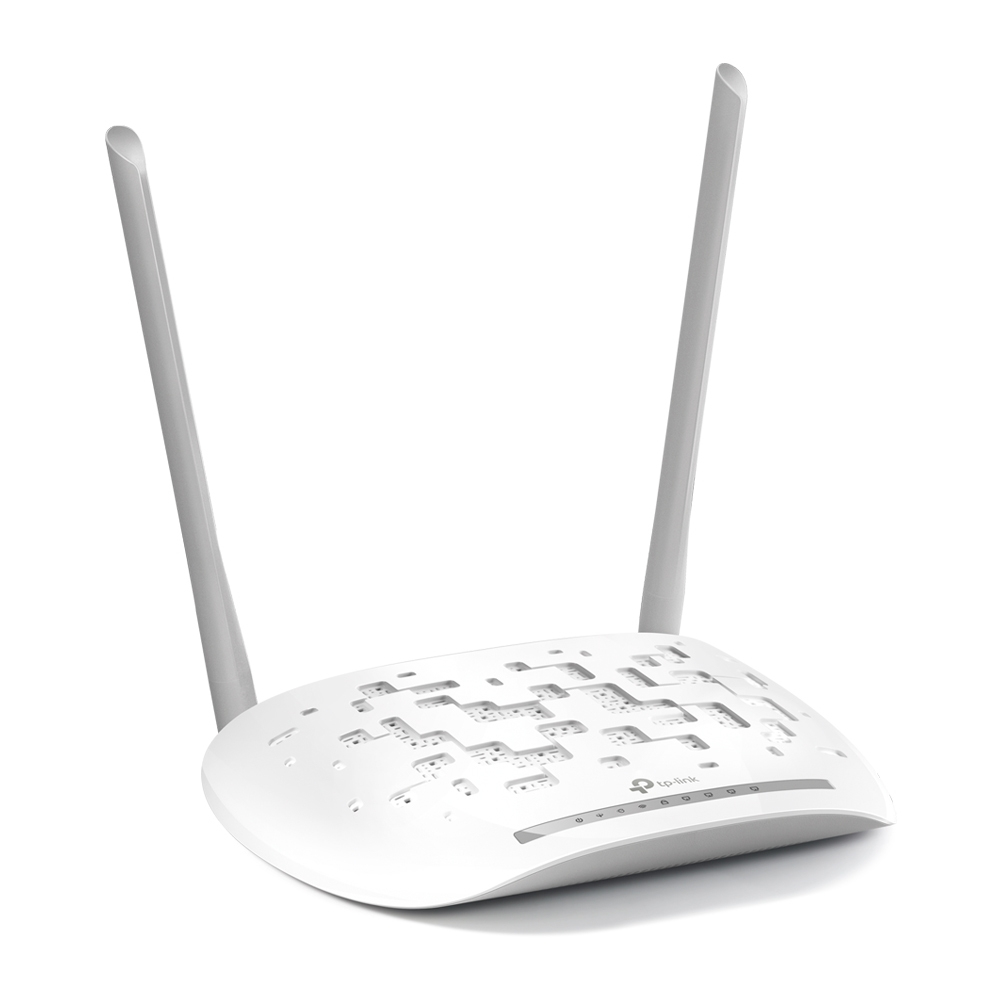

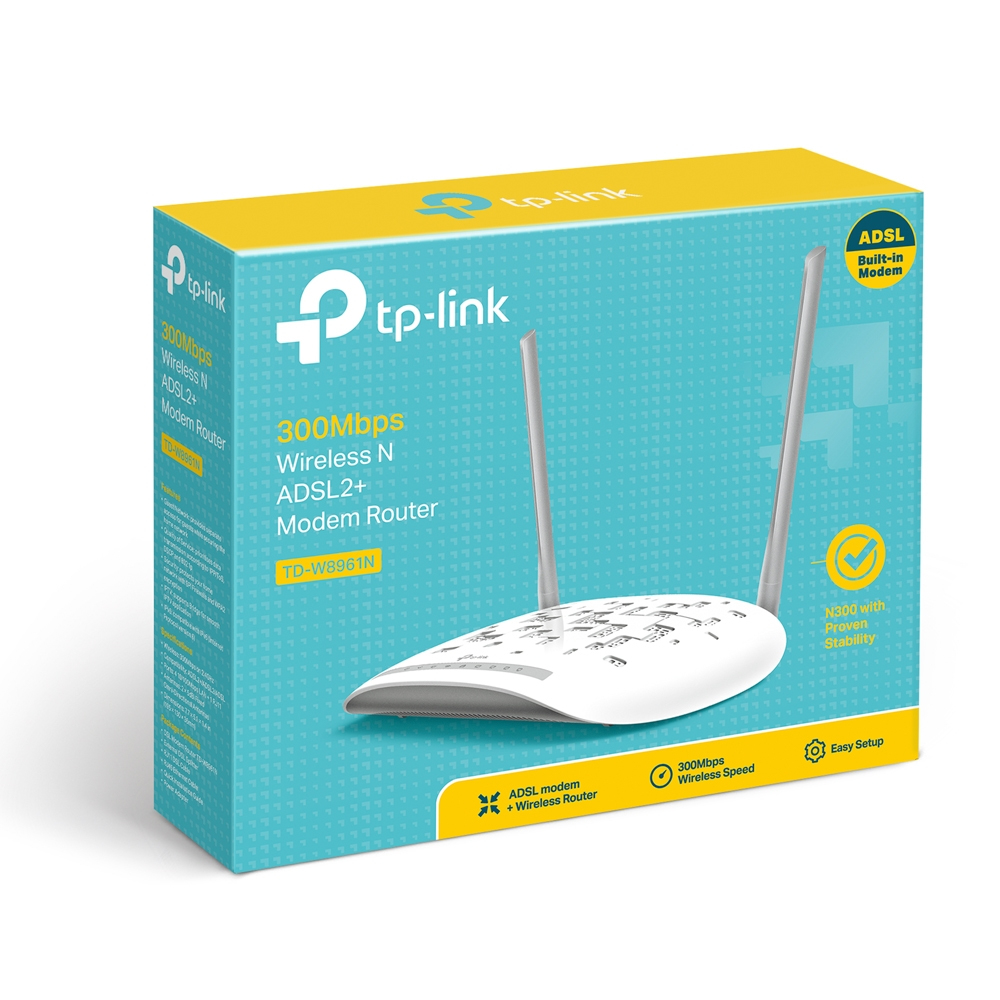

TP-Link 300Mbps Wireless N ADSL2+ Modem Router

Model TD-W8961NPart no. TD-W8961N V3EAN 6935364061166

81 specifications

SpeedWi-Fi 4 (802.11n)
TypeTabletop router
ColourWhite
Ethernet WANYes
Wi-Fi bandSingle-band (2.4 GHz)
3GNo

See all specifications

Overview

Speed: Wi-Fi 4 (802.11n)
Type: Tabletop router
Colour: White
Ethernet WAN: Yes
Wi-Fi band: Single-band (2.4 GHz)
3G: No

Brand: TP-Link
Category: Wireless Router
Model: TD-W8961N
Part numbers: TD-W8961N V3, TD-W8961N (EU), TD-W8961N
EAN / UPC: 6935364061166, 6935364061173, 6935364091156
Also known as: TP-Link 300Mbps Wireless N ADSL2+ Modem Router

Specifications

81 specifications in 20 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	Yes
SIM card slot	No
3G/4G USB modem compatibility	No
WAN connection type	RJ-45

Wireless LAN features

Specification	Value
Wi-Fi band	Single-band (2.4 GHz)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Port forwarding	Yes
Dynamic DNS (DDNS)	Yes

Mobile network

Specification	Value
3G	No
4G	No

DSL features

Specification	Value
ADSL	Yes
ADSL2	Yes
ADSL2+	Yes
DSL specification	ANSI T1.413 Issue 2, ITU-T G.992.1, ITU-T G.992.2, ITU-T G.994.1, ITU-T G.992.3, ITU-T G.992.4, ITU-T G.992.5

Ports & interfaces

Specification	Value

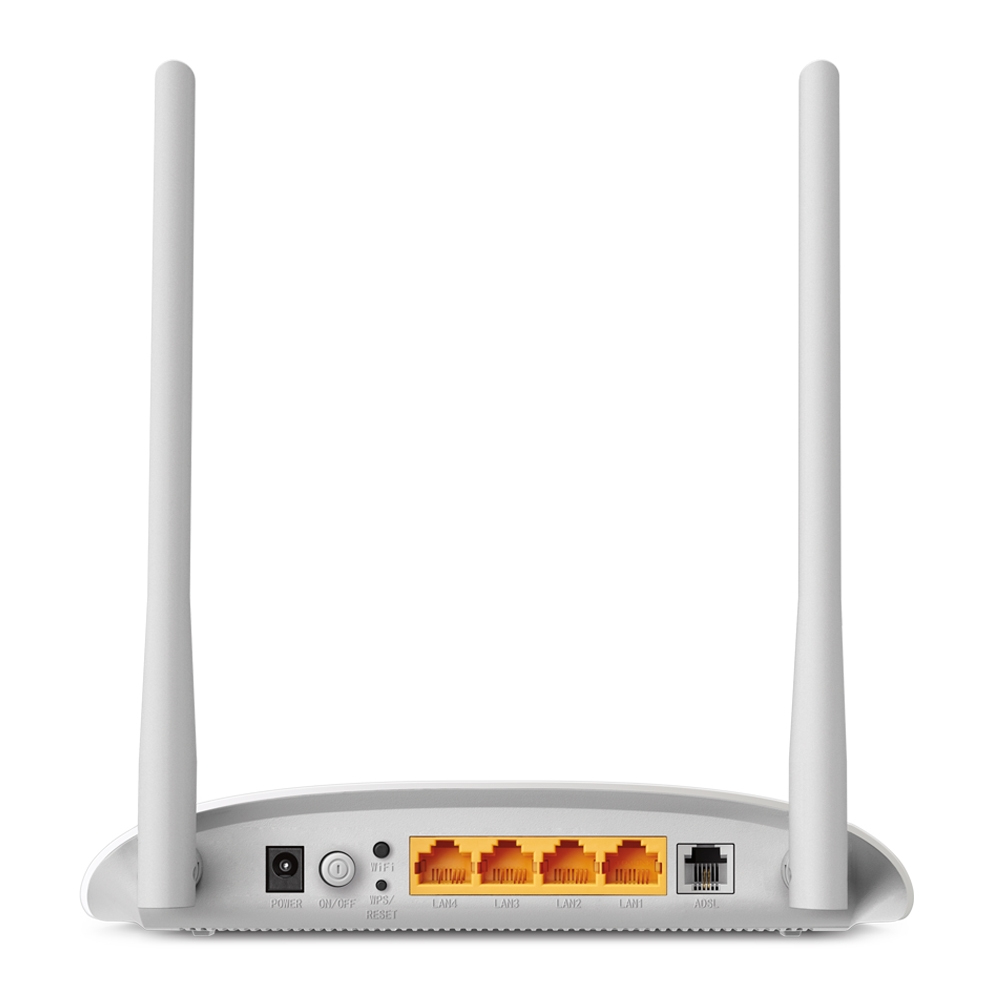

Ethernet LAN (RJ-45) ports	4
USB port	No
RJ-11 ports quantity	1
Memory card slot(s)	No

Management features

Specification	Value
Web-based management	Yes
Quality of Service (QoS) support	Yes
Reset button	Yes
WPS push button	Yes
MIMO	Yes
Number of data streams	2x2

Security

Specification	Value
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK
Firewall	Yes
Firewall security	NAT, SPI
Guest access	Yes
Stateful Packet Inspection (SPI)	Yes
Filtering	Yes
MAC address filtering	Yes
IP address filtering	Yes
URL filtering	Yes
DMZ support	Yes
Network address translation (NAT)	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes
Supported network protocols	PPPoE, PPPoA, IPoA

Design

Specification	Value
Product type	Tabletop router
Product colour	White
LED indicators	Yes
On/off switch	Yes

Packaging content

Specification	Value
Cables included	LAN (RJ-45), Phone (RJ-11)
AC adapter included	Yes
Quick start guide	Yes

Certificates

Specification	Value
Certification	CE, FCC, RoHS

Antenna

Specification	Value
Antenna design	External
Antenna connector type	RP-SMA
Antenna gain level (max)	5 dBi
Antennas quantity	2
Detachable antenna(s)	No
Transmit power	<20dBm(EIRP)

Features

Specification	Value
Plug and Play	Yes
Firmware upgradeable	Yes

Power

Specification	Value
Power source type	DC
Output voltage	9 V
Output current	0.6 A

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C

Weight & dimensions

Specification	Value
Depth	130 mm
Height	36.2 mm
Width	195 mm

Packaging data

Specification	Value
Package width	285 mm
Package depth	232 mm
Package height	70 mm
Package weight	590 g

Logistics data

Specification	Value
Harmonized System (HS) code	85176990

Other features

Specification	Value
Mobile network connection	No
Frequency band	2.4 GHz
WLAN data transfer rates supported	300 Mbit/s
