TP-Link TD-W8960N wireless router Fast Ethernet Single-band (2.4 GHz) White

Model TD-W8960NPart no. TD-W8960N (EU)EAN 6935364091835

63 specifications

SpeedWi-Fi 4 (802.11n)
TypeTabletop router
Weight740 g
ColourWhite
Ethernet WANYes
Wi-Fi bandSingle-band (2.4 GHz)

See all specifications

Overview

Speed: Wi-Fi 4 (802.11n)
Type: Tabletop router
Weight: 740 g
Colour: White
Ethernet WAN: Yes
Wi-Fi band: Single-band (2.4 GHz)

Brand: TP-Link
Category: Wireless Router
Model: TD-W8960N
Part numbers: TD-W8960N (EU), TD-W8960N, TD-W8960N (IT), TD-W8960N V7
EAN / UPC: 6935364091835, 104786021959, 112040011561, 132018352892 +16 more
Also known as: TP-Link TD-W8960N wireless router Fast Ethernet Single-band (2.4 GHz) White

Specifications

63 specifications in 18 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	Yes
SIM card slot	No
3G/4G USB modem compatibility	No

Wireless LAN features

Specification	Value
Wi-Fi band	Single-band (2.4 GHz)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.3
Full duplex	Yes
VPN tunnels quantity	10
VPN support	IPSec/PPTP/L2TP

Mobile network

Specification	Value
3G	No
4G	No

DSL features

Specification	Value
ADSL	Yes
DSL specification	ANSI T1.413 Issue 2, ITU-T G.992.1, ITU-T G.992.2, ITU-T G.994.1, ITU-T G.992.3, ITU-T G.992.5

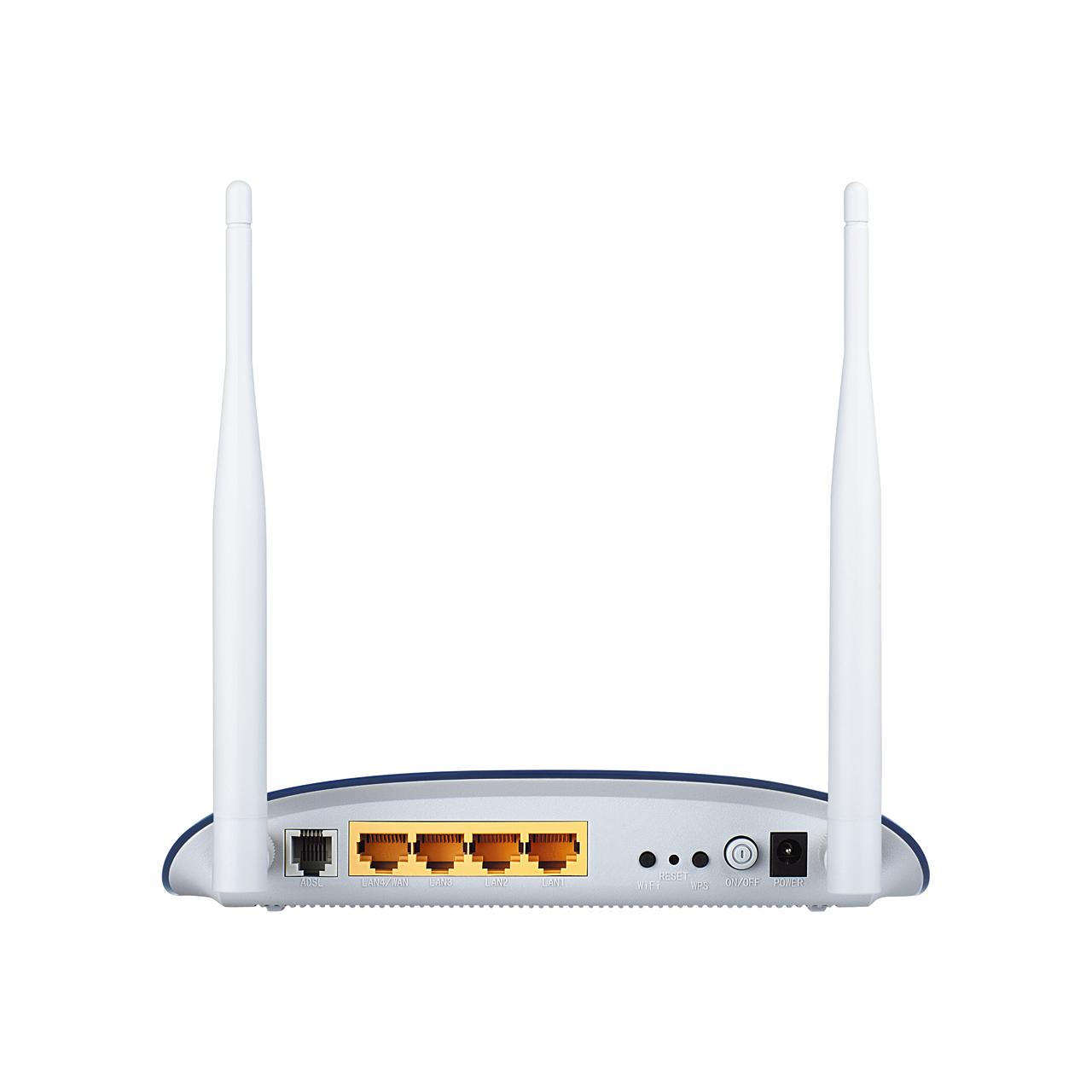

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	No
RJ-11 ports quantity	1
Memory card slot(s)	No
DC-in jack	Yes

Management features

Specification	Value
Web-based management	Yes
Quality of Service (QoS) support	Yes
Reset button	Yes

Security

Specification	Value
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Stateful Packet Inspection (SPI)	Yes
Filtering	Yes
MAC address filtering	Yes
Network address translation (NAT)	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes

Design

Specification	Value
Product type	Tabletop router
Product colour	White
LED indicators	Yes
On/off switch	Yes

Certificates

Specification	Value
Certification	FCC, RoHS

Antenna

Specification	Value
Antenna design	External
Antenna connector type	RP-SMA
Antenna gain level (max)	3 dBi
Antennas quantity	2
Detachable antenna(s)	Yes

Features

Specification	Value
Firmware upgradeable	Yes

Power

Specification	Value
Power consumption (typical)	8 W

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C

System requirements

Specification	Value
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 98SE, Windows
Linux operating systems supported	Yes
Mac operating systems supported	Yes

Weight & dimensions

Specification	Value
Depth	140 mm
Height	28 mm
Weight	740 g
Width	200 mm

Other features

Specification	Value
Downstream data rate	24 Mbit/s
Frequency range	2.4 - 2.4835 GHz
Upstream data rate	3.5 Mbit/s
WLAN data transfer rates supported	300 Mbit/s
xDSL connection	Yes
ATM features	UNI 3.1, 5-AAL5, RFC 1483, UBR, CBR, VBR-rt, VBR-nrt
