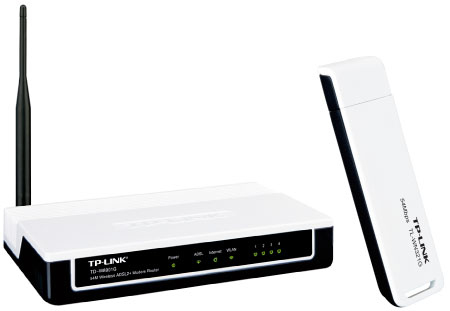

TP-Link TD-W54KIT wireless router Fast Ethernet Black, White

TP-Link TD-W54KIT wireless router Fast Ethernet Black, White

Model TD-W54KITPart no. TD-W54K ITEAN 6935364060459

46 specifications
  • Weight700 g
  • ColourBlack, White
  • DSL WANYes
  • Ethernet LAN (RJ-45) ports4
  • Antenna gain level (max)5 dBi
  • Power consumption (typical)5.3 W
See all specifications

Overview

Weight
700 g
Colour
Black, White
DSL WAN
Yes
Ethernet LAN (RJ-45) ports
4
Antenna gain level (max)
5 dBi
Power consumption (typical)
5.3 W
Brand
TP-Link
Model
TD-W54KIT
Part number
TD-W54K IT
EAN / UPC
6935364060459
Also known as
TP-Link TD-W54KIT wireless router Fast Ethernet Black, White

Specifications

46 specifications in 16 groups

WAN connection

DSL WANYes

Network

Ethernet LANYes
Ethernet LAN interface typeFast Ethernet
Ethernet LAN data rates10,100 Mbit/s
Cabling technology10/100Base-T(X)
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.1p, IEEE 802.3, IEEE 802.3u

DSL features

ADSLYes
DSL specificationADSL2+, ANSI T1.413, ITU-T G.992.1, ITU-T G.992.2, ITU-T G.994.1, ITU-T G.992.3, ITU-T G.992.5

Ports & interfaces

Ethernet LAN (RJ-45) ports4
DC-in jackYes

Management features

Web-based managementYes
Quality of Service (QoS) supportYes
Reset buttonYes

Security

Security algorithms128-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Stateful Packet Inspection (SPI)Yes
FilteringYes
MAC address filteringYes
DMZ supportYes
Network address translation (NAT)Yes

Protocols

DHCP clientYes
DHCP serverYes
Management protocolsHTTP, SNMP, CWMP
Supported network protocolsPPPoE, IP, TCP, UDP, ARP

Design

Product colourBlack, White

Packaging content

ManualYes
Quick start guideYes

Certificates

CertificationCE, FCC, RoHS

Antenna

Antenna gain level (max)5 dBi
Antennas quantity1

Features

Firmware upgradeableYes

Power

Power consumption (typical)5.3 W
Power over Ethernet (PoE)Yes

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 90%
Storage temperature (T-T)-40 - 70 °C

Weight & dimensions

Weight700 g

Other features

Dimensions (WxDxH)174 x 120 x 28.8 mm
Downstream data rate24 Mbit/s
Frequency range2.4-2.4835 GHz
Networking featuresFast Ethernet
Supported data transfer rates48/36/24/18/12/11/9/6/5.5/3/2/1 Mbps
Upstream data rate3.5 Mbit/s
WLAN data transfer rates supported54 Mbit/s
xDSL connectionYes
ATM featuresRFC 1483, UBR, CBR, VBR-rt, VBR-nrt, 8PVCs
