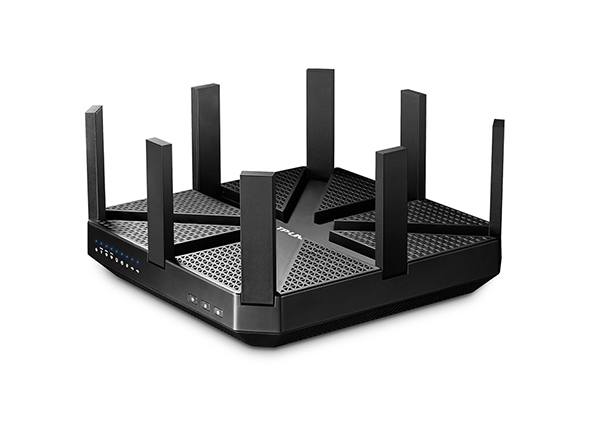

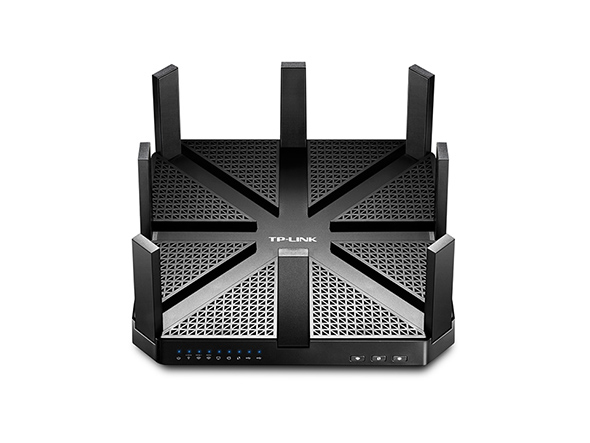

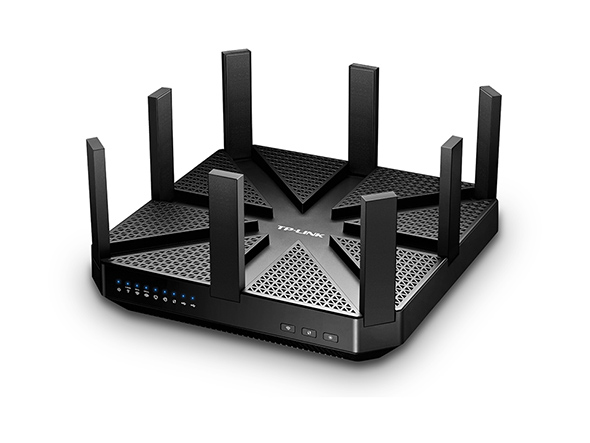

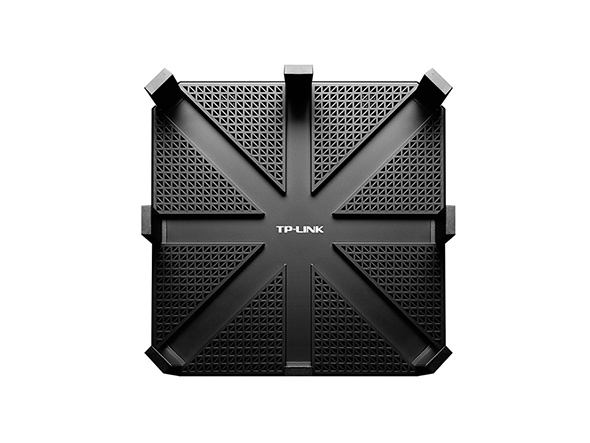

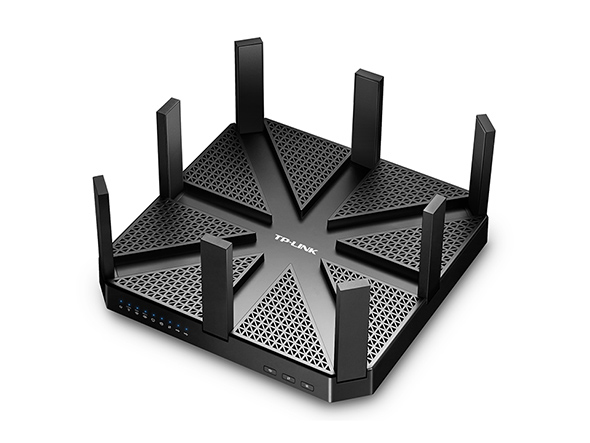

TP-Link Talon AD7200

TP-Link Talon AD7200

Model Talon AD7200Part no. AD7200EAN 845973096892

57 specifications
  • ColourBlack
  • Ethernet WANYes
  • Ethernet LAN (RJ-45) ports5
  • Antenna designInternal & external
  • Power source typeDC
  • Operating relative humidity (H-H)10 - 90%
See all specifications

Overview

Colour
Black
Ethernet WAN
Yes
Ethernet LAN (RJ-45) ports
5
Antenna design
Internal & external
Power source type
DC
Operating relative humidity (H-H)
10 - 90%
Brand
TP-Link
Model
Talon AD7200
Part number
AD7200
EAN / UPC
845973096892
Also known as
TP-Link Talon AD7200 wireless router Tri-band (2.4 GHz / 5 GHz / 60 GHz) Black

Specifications

57 specifications in 18 groups

WAN connection

Ethernet WANYes

Wireless LAN features

Wi-Fi bandTri-band (2.4 GHz / 5 GHz / 60 GHz)

Network

Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Cabling technology10/100/1000Base-T(X)
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ad, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Port forwardingYes
VPN supportPPTP, OpenVPN
Receiver sensitivity5GHz: 11a 6Mbps: -94dBm 11a 54Mbps: -76dBm "11ac VHT20_MCS0: -93dBm 11ac VHT20_MCS8:-69dBm 11ac VHT40_MCS0: -90dBm 11ac VHT40_MCS9: -64dBm 11ac VHT80_MCS0: -87dBm 11ac VHT80_MCS9: -61dBm" 2.4GHz: 11g 6Mbps: -95dBm 11g 54Mbps: -78dBm "11n HT20_MCS0: -95dBm 11n HT20_MCS7: -75dBm 11n HT20_MCS8: -70dBm

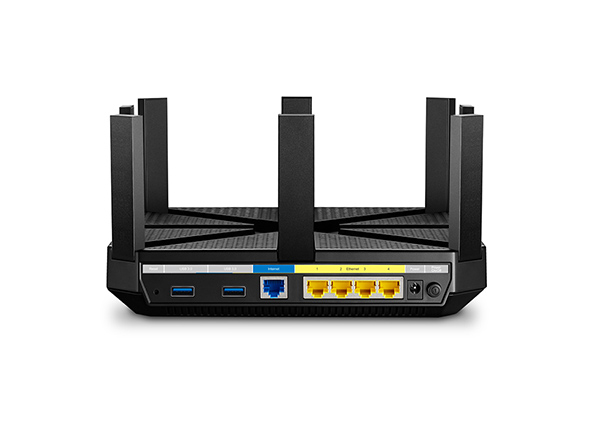

Ports & interfaces

Ethernet LAN (RJ-45) ports5
USB portYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
DC-in jackYes

Management features

Quality of Service (QoS) supportYes
Reset buttonYes
WPS push buttonYes

Security

Security algorithms64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Guest accessYes
FilteringYes
IP address filteringYes
DMZ supportYes

Protocols

DHCP clientYes
DHCP serverYes
Universal Plug and Play (UPnP)Yes

Design

Product colourBlack
LED indicatorsPower
On/off switchYes

Packaging content

Cables includedLAN (RJ-45)
ManualYes
Quick installation guideYes
Quick start guideYes

Certificates

CertificationCE, FCC, RoHS

Antenna

Antenna designInternal & external
Antennas quantity8

Features

Built-in processorYes
Processor frequency1400 MHz
Processor cores2

Power

Power source typeDC
Output voltage12 V
Output current4.2 A

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 90%
Storage temperature (T-T)-40 - 70 °C

System requirements

Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows
Linux operating systems supportedYes
Mac operating systems supportedYes

Weight & dimensions

Depth230 mm
Height43 mm
Width230 mm

Packaging data

Package typeBox

Other features

Frequency band2.4 & 5
Frequency range2.4 - 5 GHz
Supported WAN typeDynamic IP/Static IP/PPPoE/ PPTP(Dual Access)/L2TP(Dual Access)
Supported protocolsIPv4, IPv6
USB ports quantity2
USB version3.2 Gen 1 (3.1 Gen 1)
