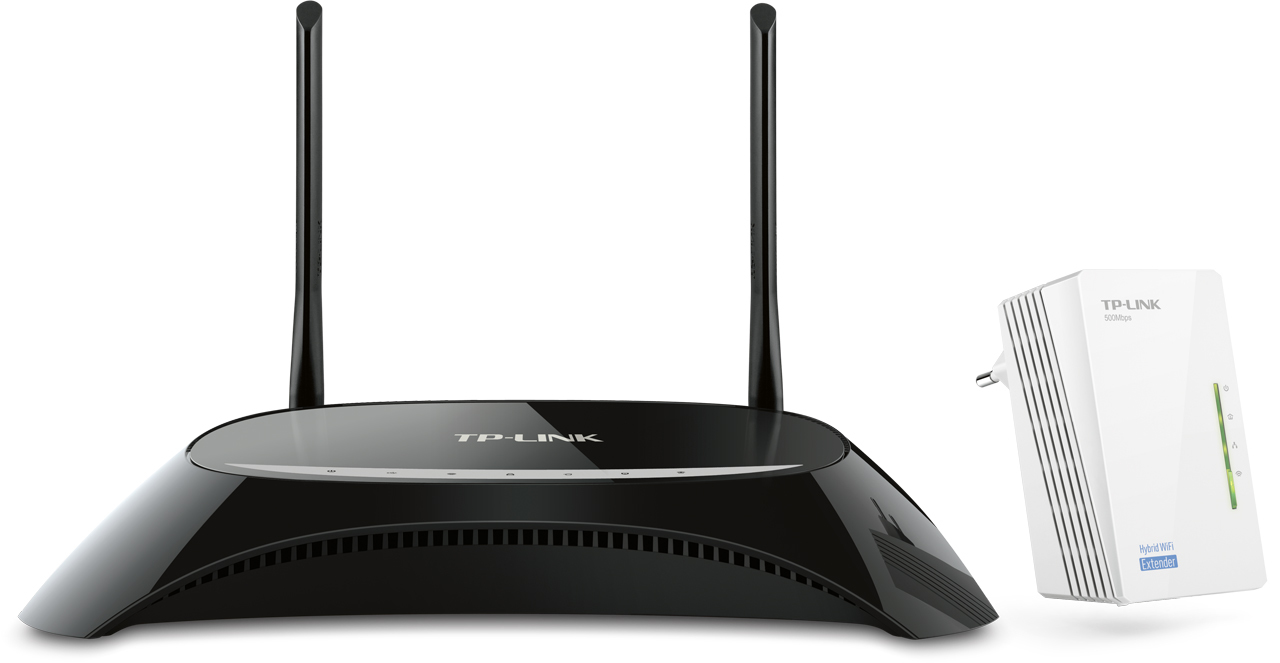

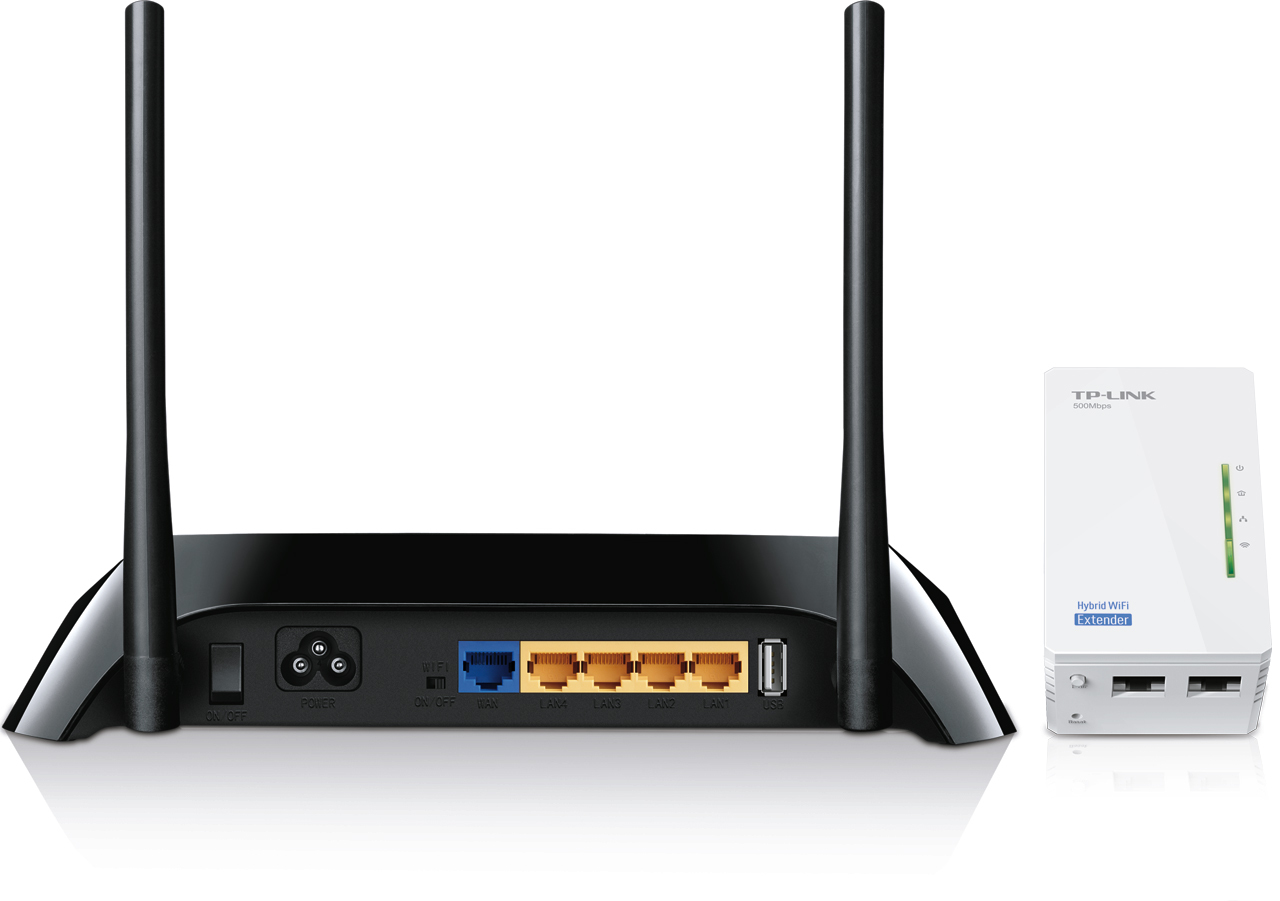

TP-Link H5 + AV500

TP-Link H5 + AV500

Model H5 + AV500Part no. TL-H5 KITEAN 5712505467565

54 specifications
  • SpeedWi-Fi 4 (802.11n)
  • Ethernet WANYes
  • Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
  • 3GNo
  • Ethernet LAN (RJ-45) ports4
  • Antenna designExternal
See all specifications

Overview

Speed
Wi-Fi 4 (802.11n)
Ethernet WAN
Yes
Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
3G
No
Ethernet LAN (RJ-45) ports
4
Antenna design
External
Brand
TP-Link
Model
H5 + AV500
Part number
TL-H5 KIT
EAN / UPC
5712505467565, 6935364032555
Also known as
TP-Link H5 + AV500 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz)

Specifications

54 specifications in 17 groups

WAN connection

Ethernet WANYes
3G/4G USB modem compatibilityYes

Wireless LAN features

Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standardWi-Fi 4 (802.11n)
WLAN data transfer rate (max)300 Mbit/s
Wi-Fi standards802.11a, 802.11b, 802.11g

Network

Ethernet LANYes
Ethernet LAN interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
Cabling technology10/100/1000Base-T(X)
Networking standardsIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3

Mobile network

3GNo
4GNo

Ports & interfaces

Ethernet LAN (RJ-45) ports4
DC-in jackYes

Management features

Web-based managementYes

Security

Security algorithms128-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
FirewallYes
Stateful Packet Inspection (SPI)Yes
DoS attack preventionYes
FilteringYes
MAC address filteringYes

Protocols

DHCP clientYes

Design

LED indicatorsYes

Packaging content

Cables includedAC
AC adapter includedYes
Quick start guideYes

Certificates

CertificationIC, RoHS

Antenna

Antenna designExternal
Antenna connector typeRP-SMA
Antenna gain level (max)5 dBi
Antennas quantity2

Features

SafetyCE, FCC

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 90%
Storage temperature (T-T)-40 - 70 °C

System requirements

Windows operating systems supportedWindows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8
Linux operating systems supportedYes
Mac operating systems supportedYes

Weight & dimensions

Depth178 mm
Height51 mm
Width256 mm

Other features

Mobile network connectionNo
Bandwidth (first)2.4 GHz
Bandwidth (second)5 GHz
Frequency band2.4 & 5
Frequency range2.4 - 5 GHz
Rack mountingNo
USB connector typeUSB Type-A
USB ports quantity1
USB version2.0
WLAN data transfer rates supported300 Mbit/s
xDSL connectionNo
