AX3000 Dual Band Wi-Fi 6 VoIP Router
Model EX530vPart no. EX530VEAN 840030704802
61 specifications
- SpeedWi-Fi 6 (802.11ax)
- TypeTabletop router
- ColourWhite
- Ethernet WANYes
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
- Ethernet LAN (RJ-45) ports4
Overview
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Tabletop router
- Colour
- White
- Ethernet WAN
- Yes
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Ethernet LAN (RJ-45) ports
- 4
- Brand
- TP-Link
- Category
- Wireless Router
- Model
- EX530v
- Part number
- EX530V
- EAN / UPC
- 840030704802, 4897098684801, 4897098686294
- Also known as
- TP-Link AX3000 Dual Band Wi-Fi 6 VoIP Router
Specifications
61 specifications in 15 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 3000 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 2402 Mbit/s |
| Modulation | 1024-QAM, OFDMA |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Port forwarding | Yes |
| Port triggering | Yes |
| Automatic channel selection | Yes |
| Dynamic DNS (DDNS) | Yes |
| SSID-based VLAN assignment | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| Built-in FTP server | Yes |
| VPN support | PPTP, IPSec, OpenVPN |

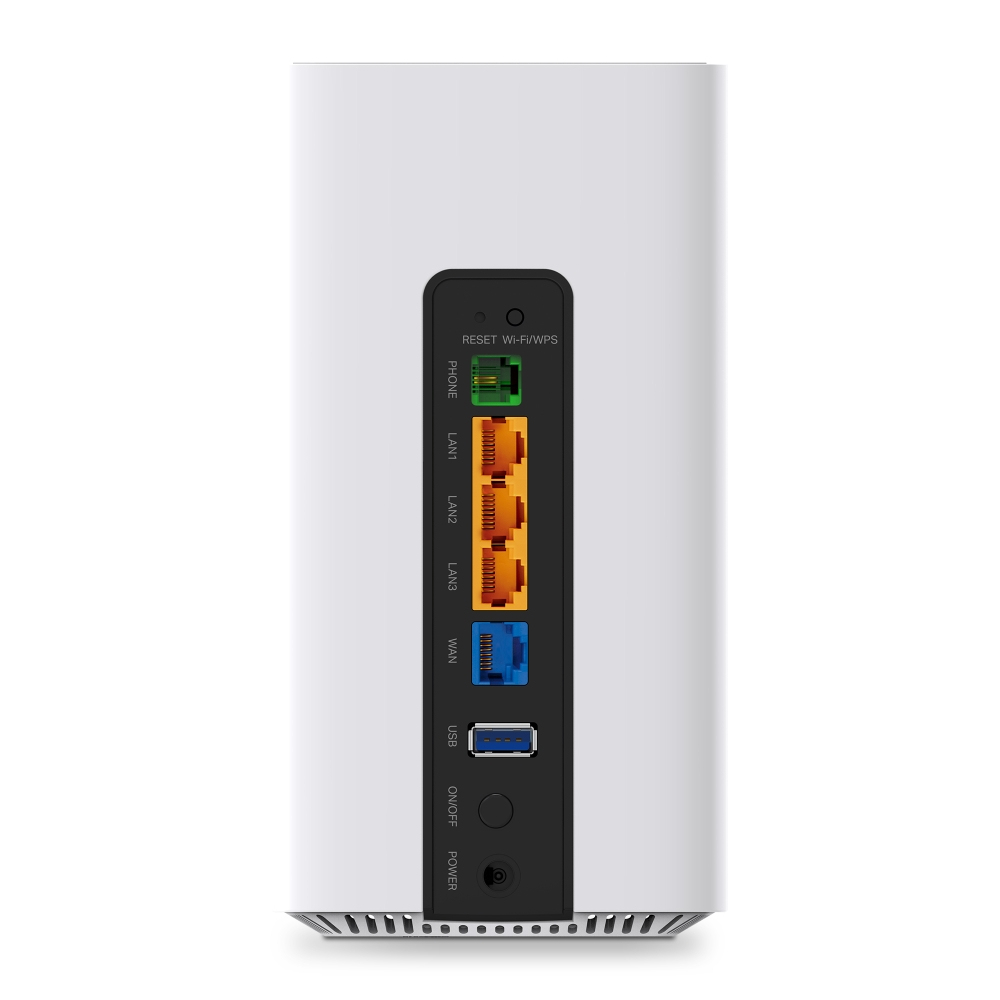

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| RJ-11 ports quantity | 1 |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Quality of Service (QoS) support | Yes |
| MIMO | Yes |
| MU-MIMO technology | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | SSID, WPA, WPA2, WPA3 |
| Access Control List (ACL) | Yes |
| Guest access | Yes |
| Parental control | Yes |
| DMZ support | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | White |
| Wall mountable | Yes |
| LED indicators | LAN, Power, WAN |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45), Phone (RJ-11) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, DFS |
Antenna
| Specification | Value |
|---|---|
| Antenna design | Internal |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Output voltage | 12 V |
| Output current | 2 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 99 mm |
| Height | 190 mm |
| Width | 99 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
