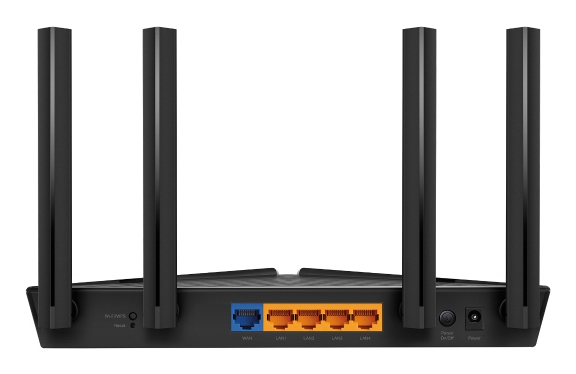

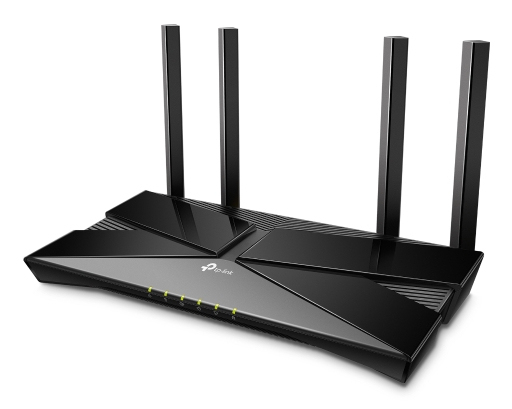

EX520 wireless router Gigabit Ethernet Dual-band (2.4 GHz
5 GHz) Black
Model EX520EAN 4897098684795
46 specifications
- SpeedWi-Fi 6 (802.11ax)
- TypeTabletop router
- ColourBlack
- Ethernet WANYes
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
- Mobile network generationNot supported
Overview
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Tabletop router
- Colour
- Black
- Ethernet WAN
- Yes
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Mobile network generation
- Not supported
- Brand
- TP-Link
- Category
- Wireless Router
- Model
- EX520
- Part number
- EX520
- EAN / UPC
- 4897098684795
- Also known as
- TP-Link EX520 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black
Specifications
46 specifications in 15 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 1775 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 1201 Mbit/s |
| WLAN data transfer rate (second band) | 574 Mbit/s |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Port forwarding | Yes |
| VPN Passthrough | Yes |
Mobile network
| Specification | Value |
|---|---|
| Mobile network generation | Not supported |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | No |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| MIMO | Yes |
| MU-MIMO technology | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA2, WPA3-Enterprise |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | Black |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Antenna included | Yes |
| Quick installation guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | CE |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antennas quantity | 4 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Output voltage | 12 V |
| Output current | 1.5 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 94 mm |
| Height | 33.3 mm |
| Width | 182.7 mm |
