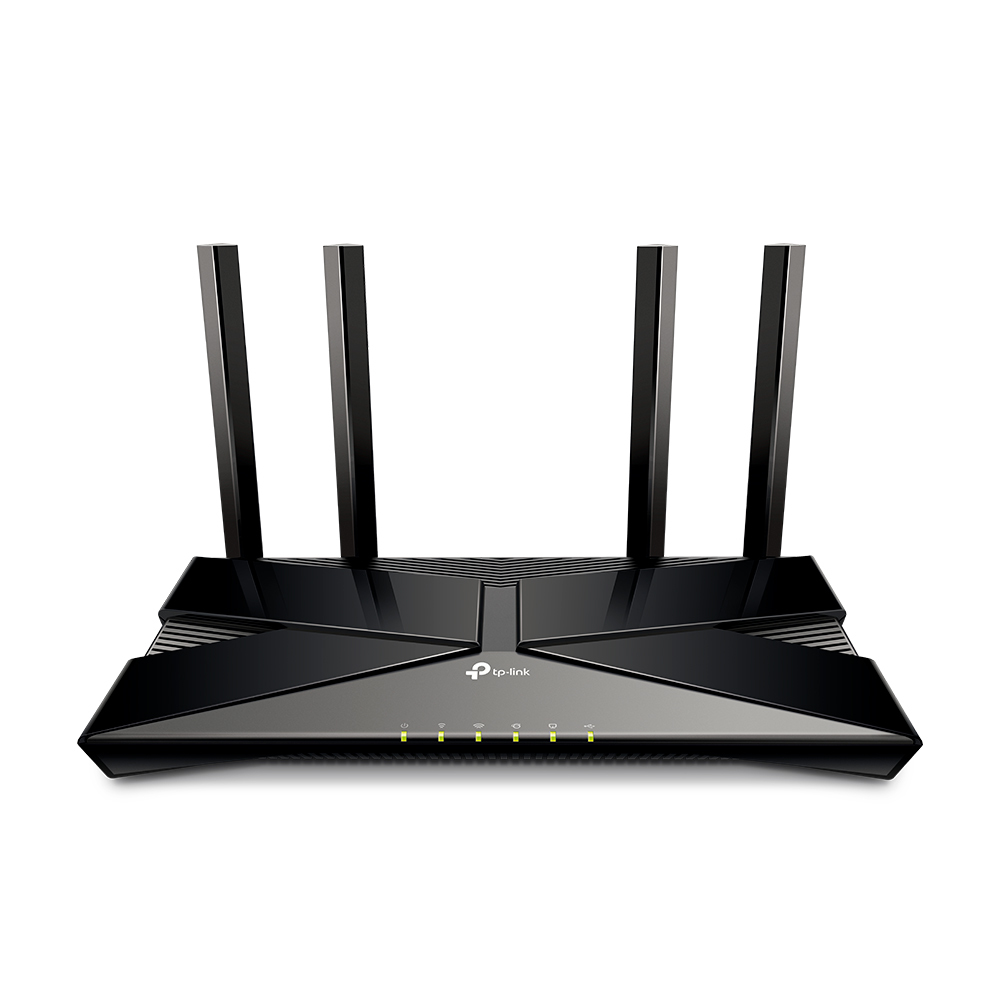

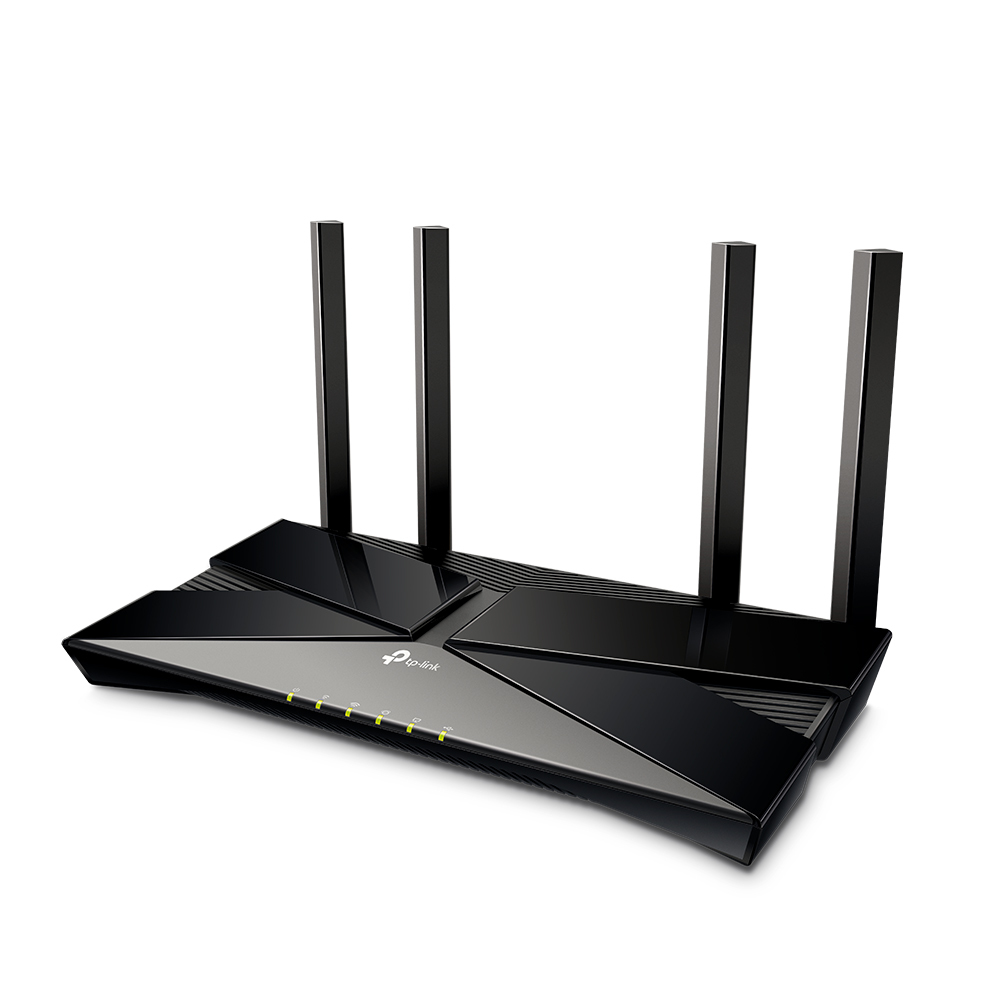

TP-Link EX220-G2u wireless router Gigabit Ethernet Dual-band (2.4 GHz

EX220-G2u wireless router Gigabit Ethernet Dual-band (2.4 GHz

5 GHz) Black

Model EX220-G2uPart no. EX220-G2UEAN 6935364086510

62 specifications

SpeedWi-Fi 6 (802.11ax)
TypeTabletop router
ColourBlack
Ethernet WANYes
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
3GNo

See all specifications

Overview

Speed: Wi-Fi 6 (802.11ax)
Type: Tabletop router
Colour: Black
Ethernet WAN: Yes
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
3G: No

Brand: TP-Link
Category: Wireless Router
Model: EX220-G2u
Part number: EX220-G2U
EAN / UPC: 6935364086510
Also known as: TP-Link EX220-G2u wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black

Specifications

62 specifications in 17 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	Yes
WAN connection type	RJ-45

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	1201 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	1201 Mbit/s

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
VPN support	PPTP, OpenVPN, IPSec

Mobile network

Specification	Value
3G	No
4G	No

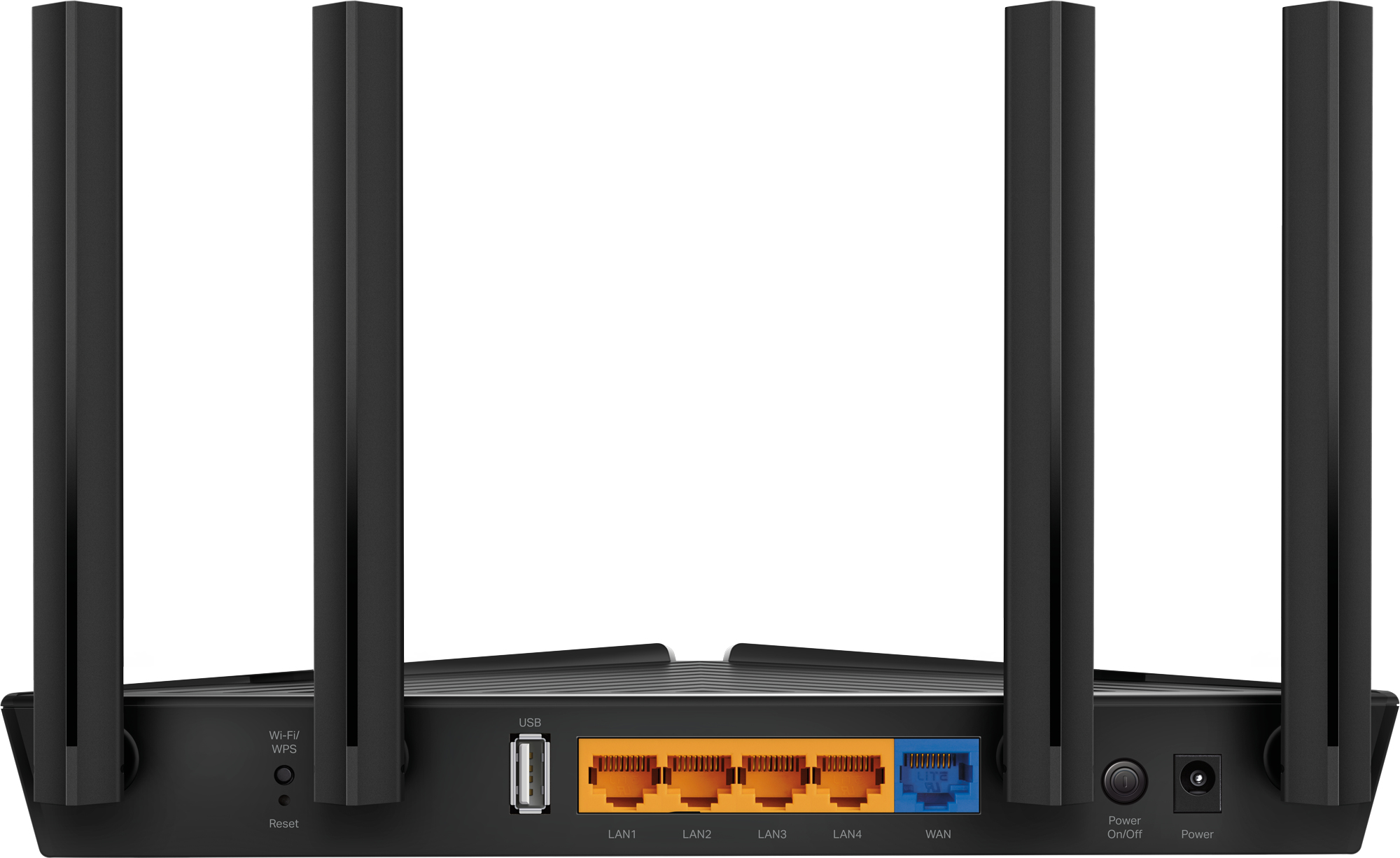

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 2.0 ports quantity	1
Memory card slot(s)	No
DC-in jack	Yes

Management features

Specification	Value
Web-based management	Yes
Quality of Service (QoS) support	Yes
Reset button	Yes
WPS push button	Yes

Security

Specification	Value
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK
Firewall	Yes
Stateful Packet Inspection (SPI)	Yes
DoS attack prevention	Yes
Parental control	Yes
Filtering	Yes
MAC address filtering	Yes
IP address filtering	Yes
DMZ support	Yes

Protocols

Specification	Value
Management protocols	TR-069(TR-098/TR-181), TR-111, TR-143

Design

Specification	Value
Product type	Tabletop router
Product colour	Black
LED indicators	Status
On/off switch	Yes

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick installation guide	Yes

Antenna

Specification	Value
Antenna design	External
Transmit power	30 dBmW

Features

Specification	Value
Plug and Play	Yes

Power

Specification	Value
Power source type	DC
Output voltage	12 V
Output current	1.5 A

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C

System requirements

Specification	Value
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes

Weight & dimensions

Specification	Value
Depth	135 mm
Height	38.6 mm
Width	260.2 mm

Packaging data

Specification	Value
Number of products included	1 pc(s)
