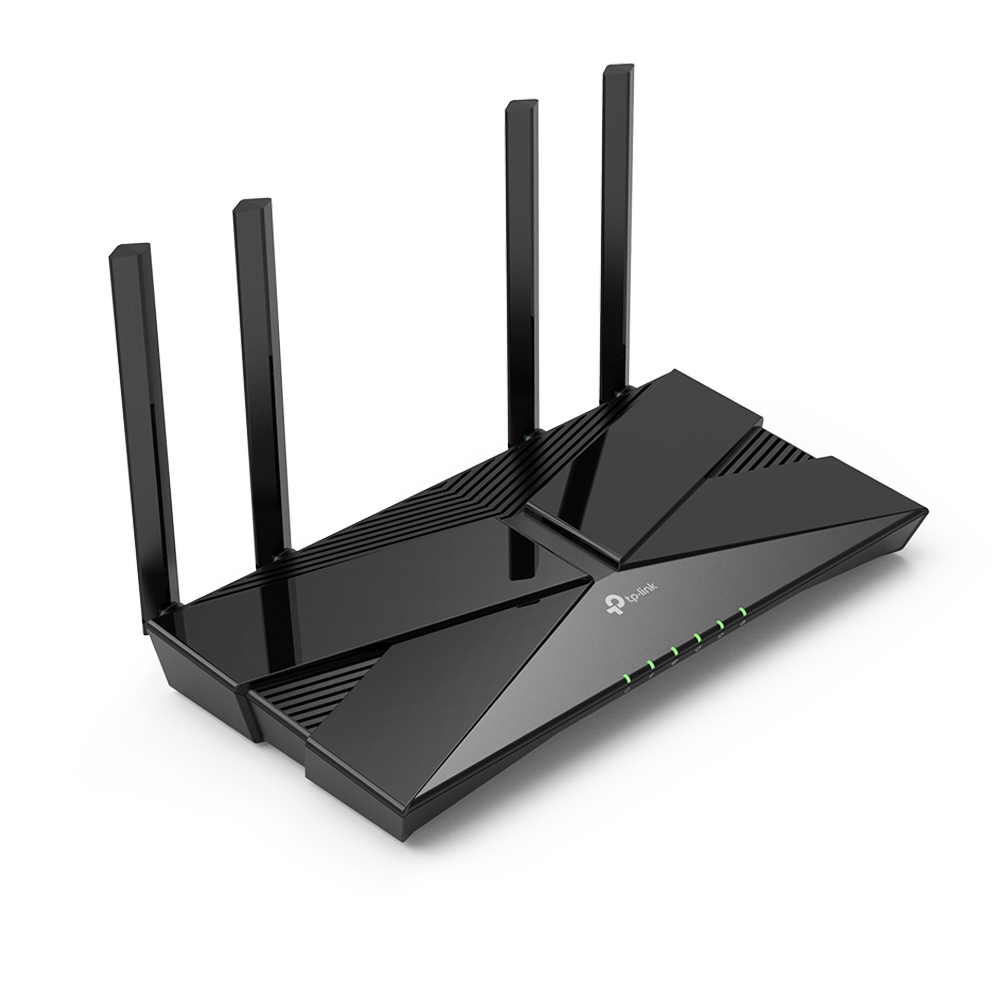

AX1800 Dual Band Wi-Fi 6 Router
Model EX220EAN 4897098684764
78 specifications
- SpeedWi-Fi 6 (802.11ax)
- TypeTabletop router
- ColourBlack
- Ethernet WANYes
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
- 3GNo
Overview
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Tabletop router
- Colour
- Black
- Ethernet WAN
- Yes
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- 3G
- No
- Brand
- TP-Link
- Category
- Wireless Router
- Model
- EX220
- Part number
- EX220
- EAN / UPC
- 4897098684764, 4897098686232
- Also known as
- TP-Link AX1800 Dual Band Wi-Fi 6 Router
Specifications
78 specifications in 19 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 1800 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 1201 Mbit/s |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Port forwarding | Yes |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| Wireless radio | Yes |
| VPN Passthrough | Yes |
| VPN support | PPTP, OpenVPN, IPSec |
Mobile network
| Specification | Value |
|---|---|
| 3G | No |
| 4G | No |
| 5G | No |

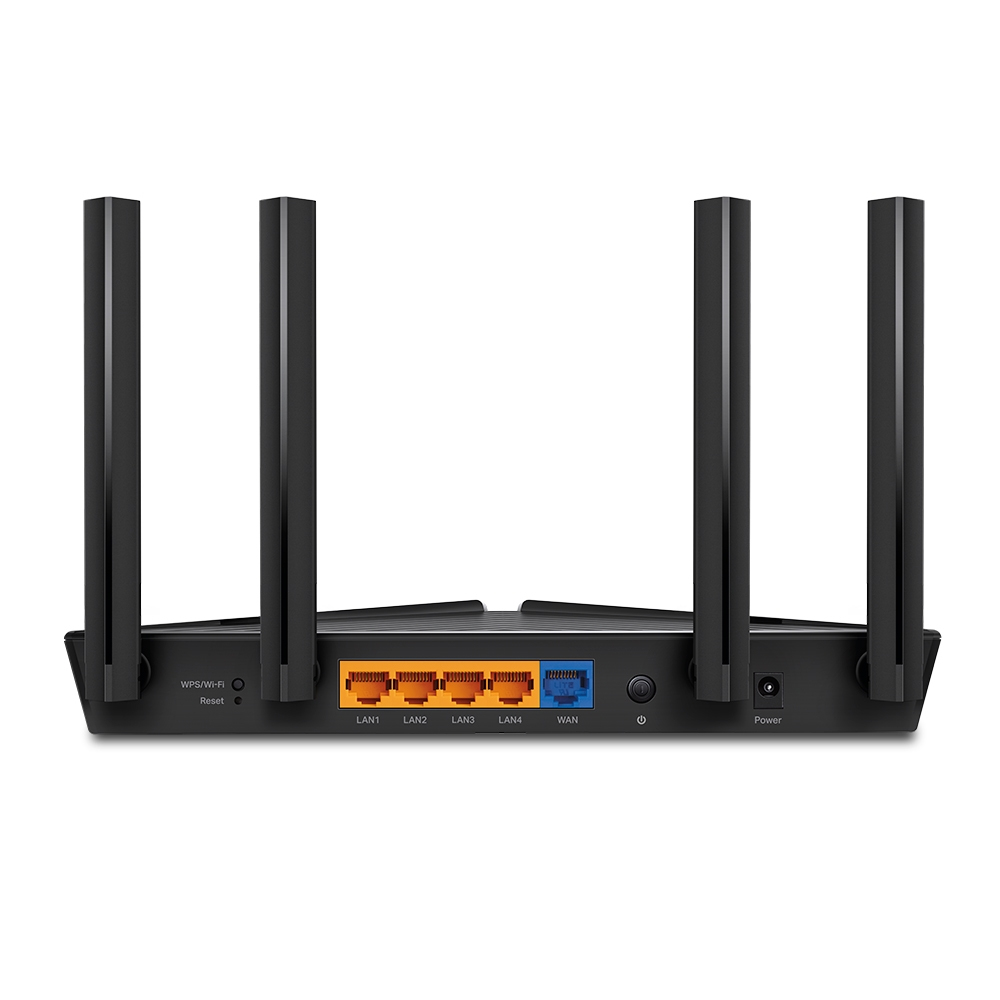

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Wireless statistics | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| MIMO | Yes |
| MU-MIMO technology | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | SSID, WPA, WPA2, WPA3 |
| Firewall | Yes |
| Access Control List (ACL) | Yes |
| Firewall security | SPI |
| Guest access | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| Schedule access | Yes |
| DoS attack prevention | Yes |
| DMZ support | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Supported network protocols | IPv4, IPv6 |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | Black |
| Indication light | Yes |
| On/off switch | Yes |
| Built-in display | No |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Antenna included | Yes |
| Quick installation guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE |
| Certification | FCC |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antenna gain level (max) | 5 dBi |
| Antennas quantity | 4 |
| Transmit power | CE: <20dBm (2.4 GHz), <23dBm (5.17 GHz–5.71 GHz) FCC:<30dBm (2.4 GHz & 5.15 GHz–5.825 GHz) |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| External power adapter | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 60 °C |
System requirements
| Specification | Value |
|---|---|
| Browser supported | Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 135 mm |
| Height | 41.6 mm |
| Width | 260.2 mm |
Packaging data
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
Other features
| Specification | Value |
|---|---|
| Input current | 1 A |
| Input voltage | 12 V |
