EC330-G5U wireless router Gigabit Ethernet Dual-band (2.4 GHz
5 GHz) Black, Grey
Model EC330-G5UEAN 845973099633
73 specifications
- SpeedWi-Fi 5 (802.11ac)
- TypeTabletop router
- ColourBlack, Grey
- Ethernet WANYes
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
- 3GNo
Overview
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Tabletop router
- Colour
- Black, Grey
- Ethernet WAN
- Yes
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- 3G
- No
- Brand
- TP-Link
- Category
- Wireless Router
- Model
- EC330-G5U
- Part number
- EC330-G5U
- EAN / UPC
- 845973099633
- Also known as
- TP-Link EC330-G5U wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black, Grey
Specifications
73 specifications in 16 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 1900 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (first band) | 600 Mbit/s |
| WLAN data transfer rate (second band) | 1300 Mbit/s |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| Port forwarding | Yes |
| Dynamic DNS (DDNS) | Yes |
| Policy-based routing | Yes |
| Static route | Yes |
| VPN support | PPTP, OpenVPN |
| Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11b) | 20 dBmW |
| Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n) | 23 dBmW |
Mobile network
| Specification | Value |
|---|---|
| 3G | No |
| 4G | No |

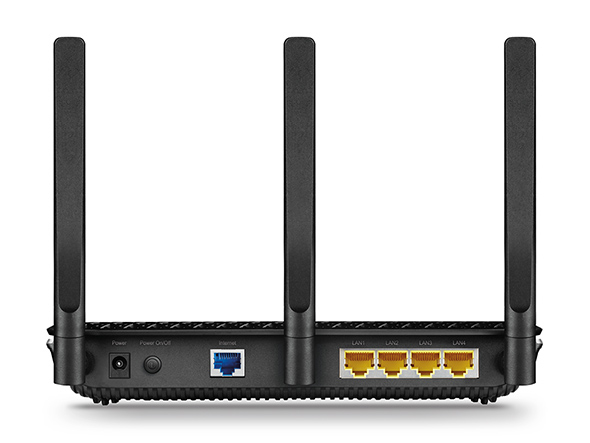

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Memory card slot(s) | No |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| WPS push button | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Firewall | Yes |
| Guest access | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| Filtering | Yes |
| IP address filtering | Yes |
| URL filtering | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Supported network protocols | IPv4, IPv6 |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | Black, Grey |
| LED indicators | LAN, Power, Status, WLAN |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Warranty card | Yes |
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, RoHS |
Antenna
| Specification | Value |
|---|---|
| Antenna design | Internal & external |
| Antennas quantity | 4 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Output voltage | 12 V |
| Output current | 2 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
System requirements
| Specification | Value |
|---|---|
| Browser supported | ternet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browers or higher, or other Java-enabled browsers |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windo |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 36.8 mm |
| Height | 164 mm |
| Width | 216 mm |
