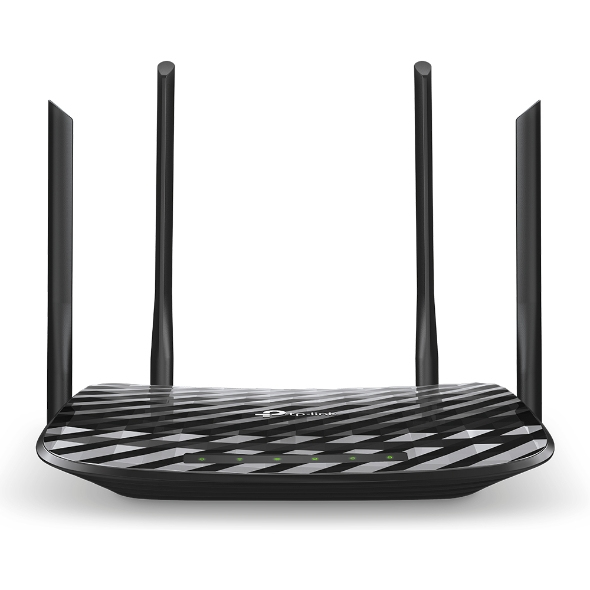

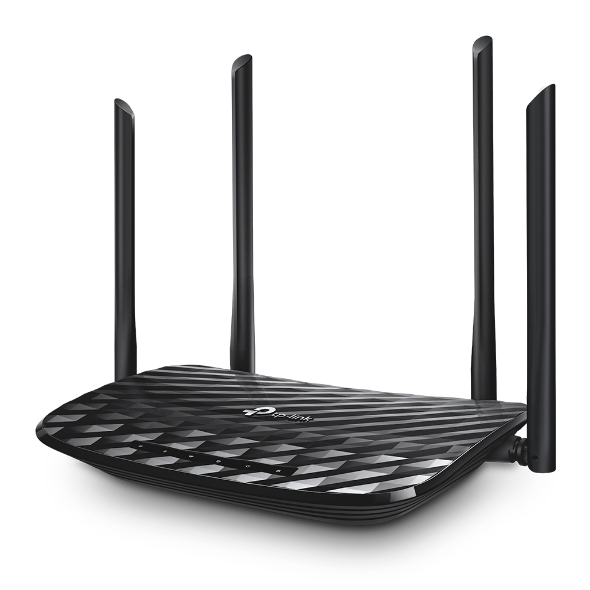

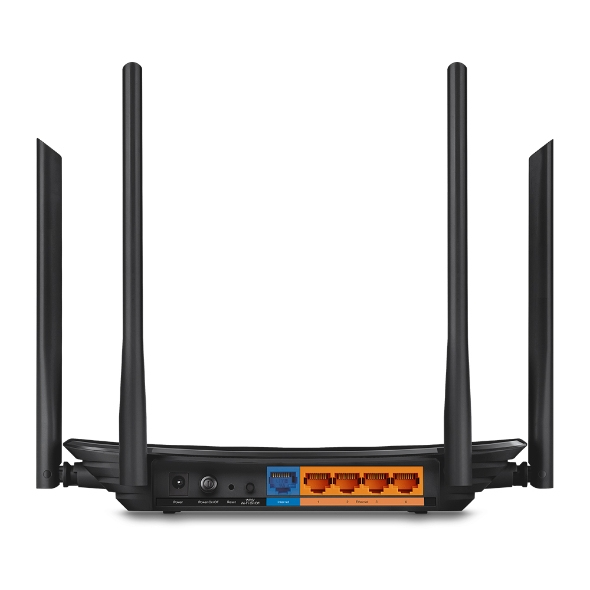

EC230-G1 wireless router Gigabit Ethernet Dual-band (2.4 GHz
5 GHz) Black
Model EC230-G1EAN 6935364086336
36 specifications
- SpeedWi-Fi 5 (802.11ac)
- TypeTabletop router
- ColourBlack
- Ethernet WANYes
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
- 3GNo
Overview
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Tabletop router
- Colour
- Black
- Ethernet WAN
- Yes
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- 3G
- No
- Brand
- TP-Link
- Category
- Wireless Router
- Model
- EC230-G1
- Part number
- EC230-G1
- EAN / UPC
- 6935364086336
- Also known as
- TP-Link EC230-G1 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black
Specifications
36 specifications in 12 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Port forwarding | Yes |
| Dynamic DNS (DDNS) | Yes |
Mobile network
| Specification | Value |
|---|---|
| 3G | No |
| 4G | No |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| MU-MIMO technology | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Firewall | Yes |
| Firewall security | DoS, SPI Firewall, IP and MAC Address Binding |
| DMZ support | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | Black |
| On/off switch | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna design | Internal & external |
| Antennas quantity | 5 |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Output voltage | 12 V |
| Output current | 1 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 144 mm |
| Height | 35 mm |
| Width | 230 mm |
Other features
| Specification | Value |
|---|---|
| Supported protocols | IPv4, IPv6 |
