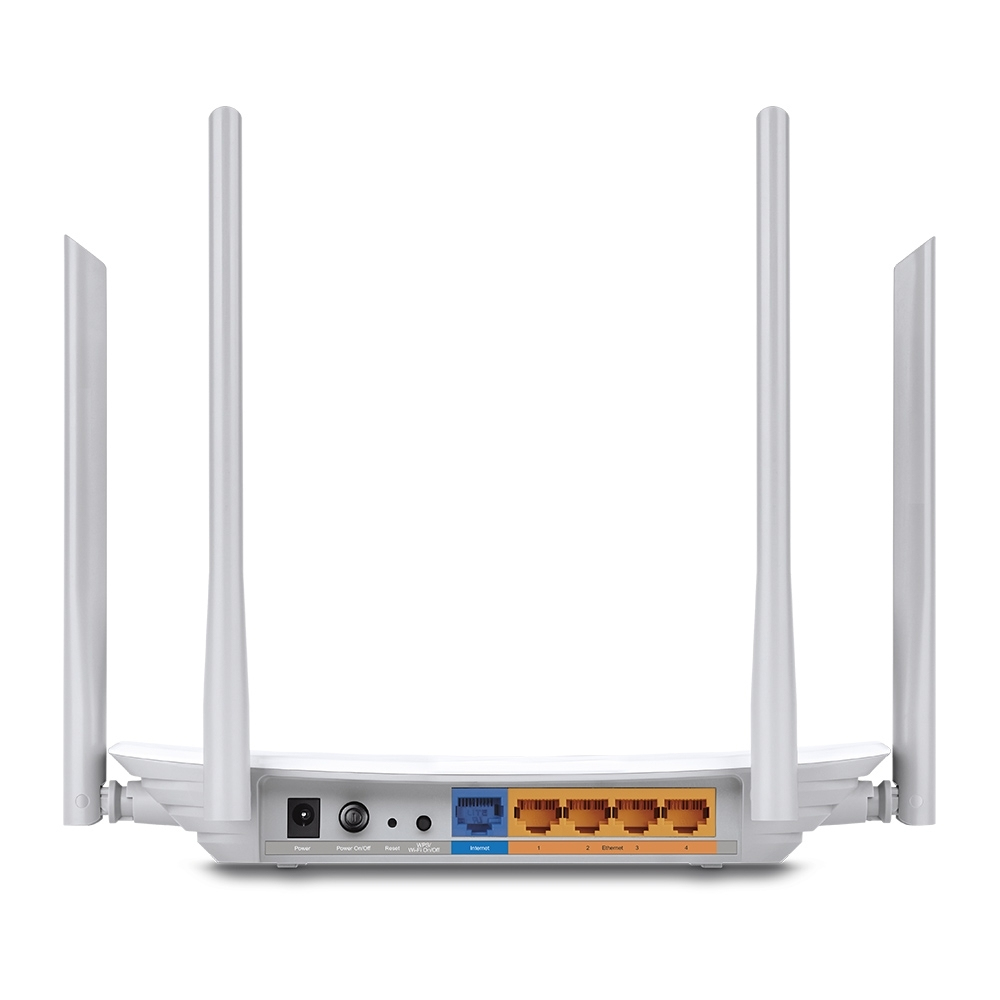

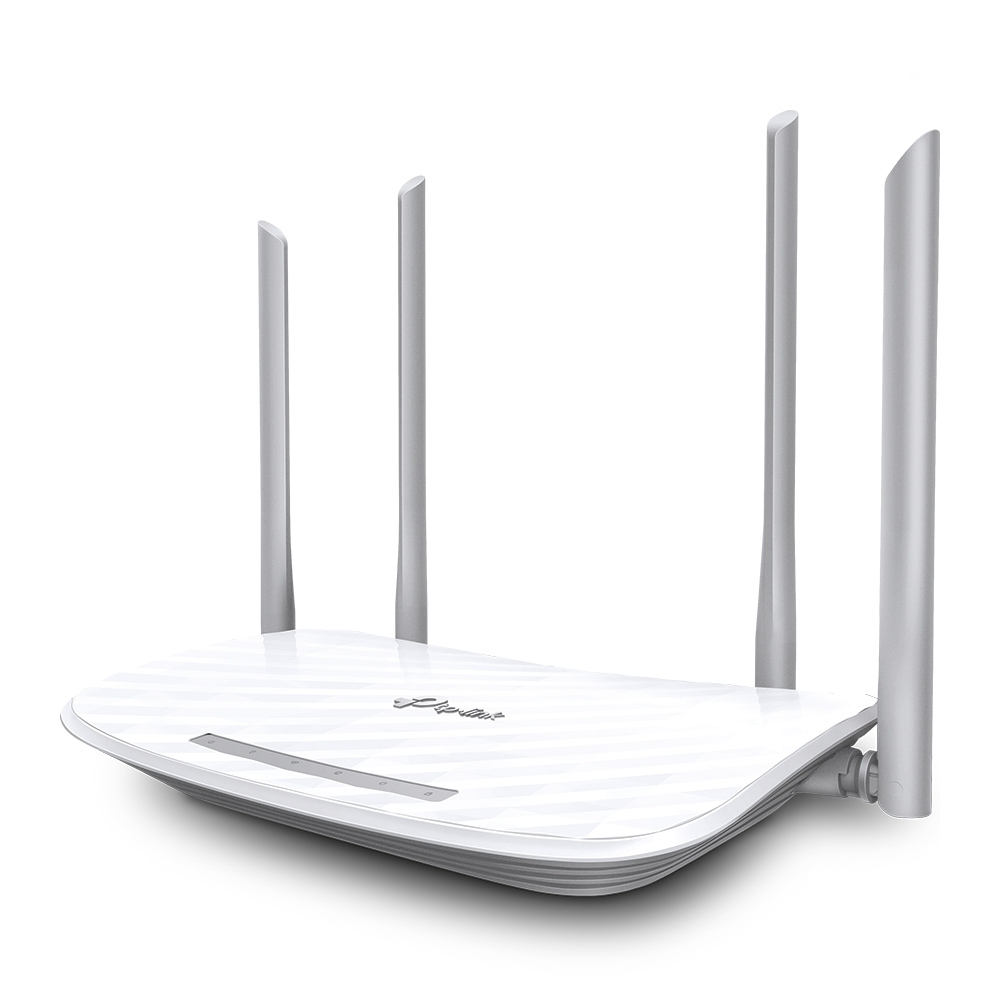

Aginet EC220-F5 wireless router Gigabit Ethernet Dual-band (2.4 GHz
5 GHz)
Model EC220-F5EAN 4897098684108
38 specifications
- SpeedWi-Fi 4 (802.11n)
- TypeTabletop router
- Ethernet WANYes
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
- Ethernet LAN (RJ-45) ports4
- Security algorithmsWPA, WPA2
Overview
- Speed
- Wi-Fi 4 (802.11n)
- Type
- Tabletop router
- Ethernet WAN
- Yes
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Ethernet LAN (RJ-45) ports
- 4
- Security algorithms
- WPA, WPA2
- Brand
- TP-Link
- Category
- Wireless Router
- Model
- EC220-F5
- Part number
- EC220-F5
- EAN / UPC
- 4897098684108
- Also known as
- TP-Link Aginet EC220-F5 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz)
Specifications
38 specifications in 13 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 1167 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (second band) | 867 Mbit/s |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| VPN support | PPTP, L2TP, IPSec |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | No |
Management features
| Specification | Value |
|---|---|
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| WPS push button | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA2 |
| Firewall | Yes |
| Firewall security | DoS, SPI Firewall, IP Address Filter, IP & MAC Address Binding |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) to DB9 |
| AC adapter included | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, RoHS |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antennas quantity | 4 |
Power
| Specification | Value |
|---|---|
| Power source type | AC, DC |
| Output voltage | 9 V |
| Output current | 0.85 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
