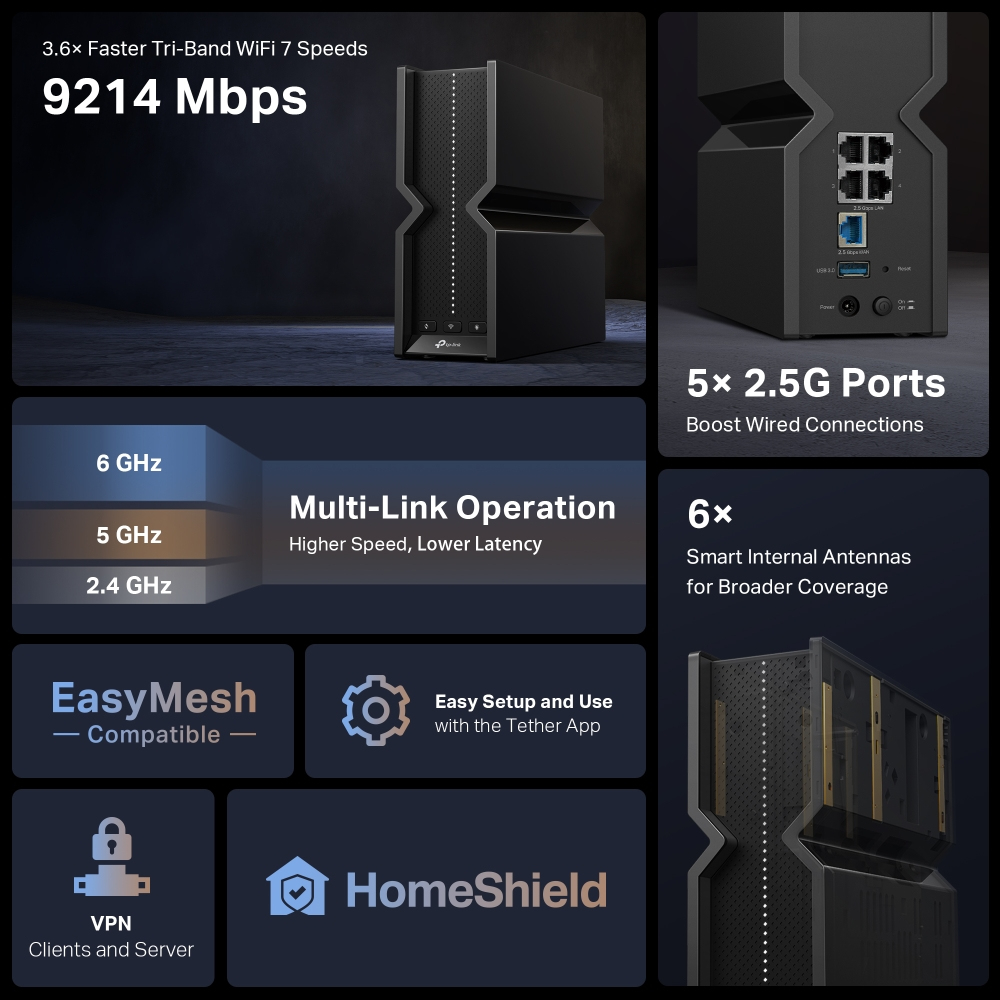

Archer BE9300 Tri-Band Wi-Fi 7 Router
Model BE9300Part no. ARCHER BE550EAN 840030708367
69 specifications
- SpeedWi-Fi 7 (802.11be)
- TypeTabletop router
- Weight1.16 kg
- ColourBlack
- Ethernet WANYes
- Ethernet LAN (RJ-45) ports5
Overview
- Speed
- Wi-Fi 7 (802.11be)
- Type
- Tabletop router
- Weight
- 1.16 kg
- Colour
- Black
- Ethernet WAN
- Yes
- Ethernet LAN (RJ-45) ports
- 5
- Brand
- TP-Link
- Category
- Wireless Router
- Model
- BE9300
- Part number
- ARCHER BE550
- EAN / UPC
- 840030708367, 840030710322, 4895252500141, 4895252503326
- Also known as
- TP-Link Archer BE9300 Tri-Band Wi-Fi 7 Router
Specifications
69 specifications in 17 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (max) | 9300 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (first band) | 688 Mbit/s |
| WLAN data transfer rate (second band) | 2880 Mbit/s |
| WLAN data transfer rate (third band) | 5760 Mbit/s |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Port forwarding | Yes |
| Port triggering | Yes |
| Automatic channel selection | Yes |
| Dynamic DNS (DDNS) | Yes |
| Static route | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| Number of guest networks (6 GHz) | 1 |
| Built-in FTP server | Yes |
| VPN server | OpenVPN Server; PPTP VPN Server; L2TP VPN Server; WireGuard VPN Server |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Bandwidth control | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| MIMO | Yes |
| MU-MIMO technology | Yes |
| Cloud-managed | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA3, WPA2, WPA2-Enterprise, WPA-Enterprise |
| Firewall | Yes |
| Firewall security | SPI Firewall |
| Guest access | Yes |
| Parental control | Yes |
| IGMP snooping | Yes |
| DMZ support | Yes |
| Network address translation (NAT) | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | Black |
| LED indicators | LAN, WAN |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
Antenna
| Specification | Value |
|---|---|

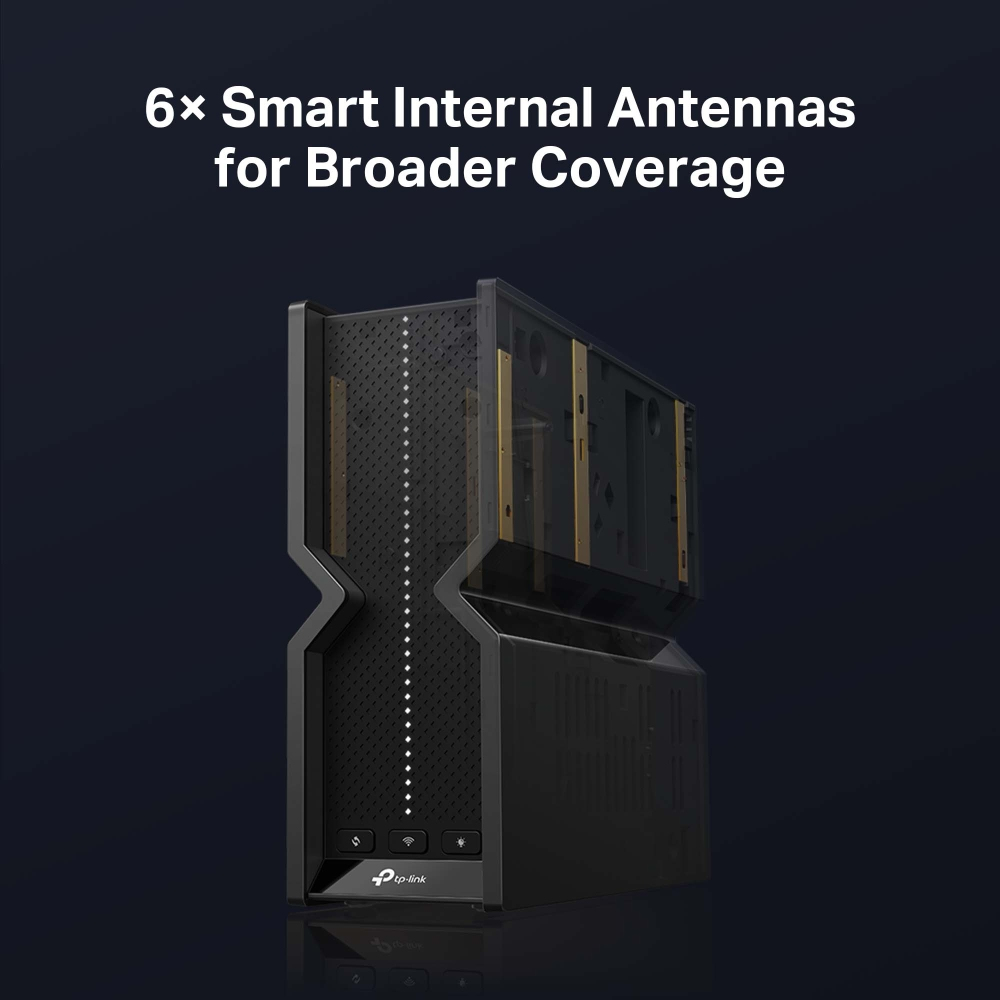

| Antenna design | Internal |
Features
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 203 mm |
| Height | 231.7 mm |
| Weight | 1.16 kg |
| Width | 76 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 145 mm |
| Package depth | 240 mm |
| Package height | 275 mm |
| Package weight | 2.11 kg |
Logistics data
| Specification | Value |
|---|---|
| Customs product code (TARIC) | 8517620000 |
| Country of origin | China |
