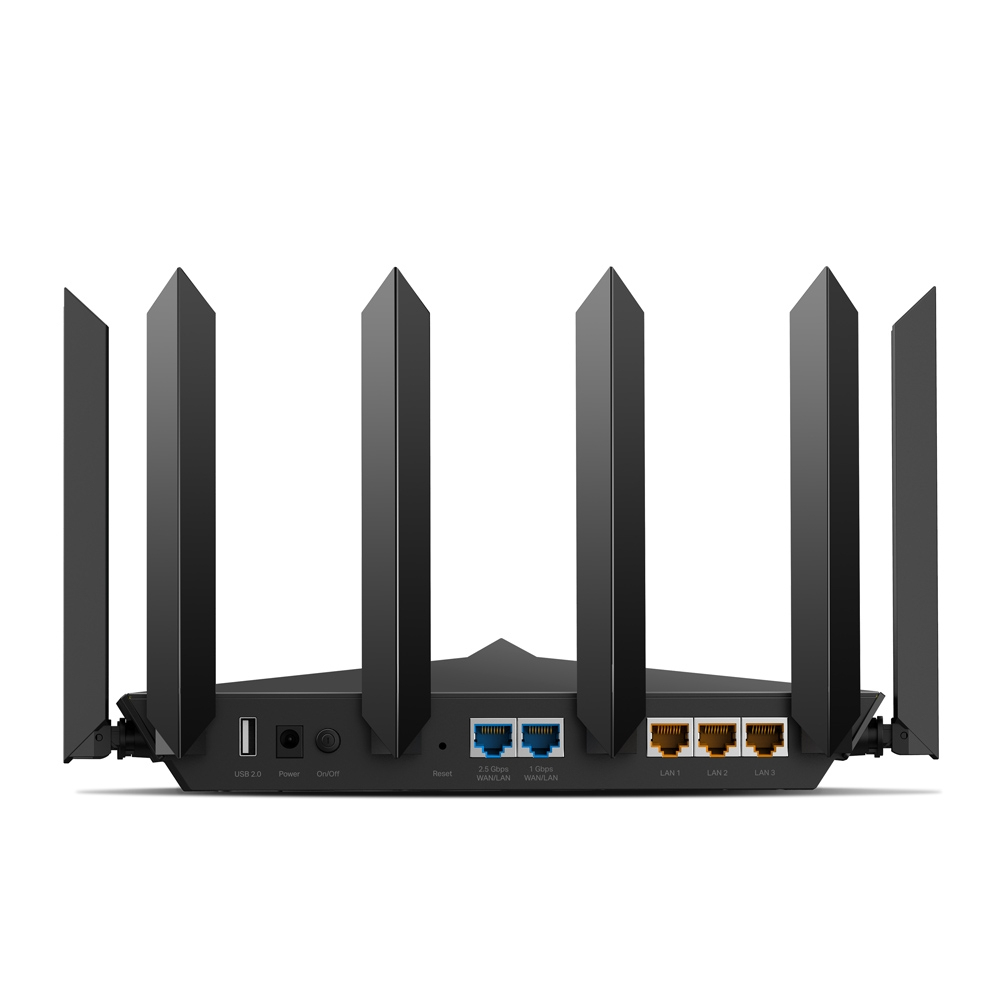

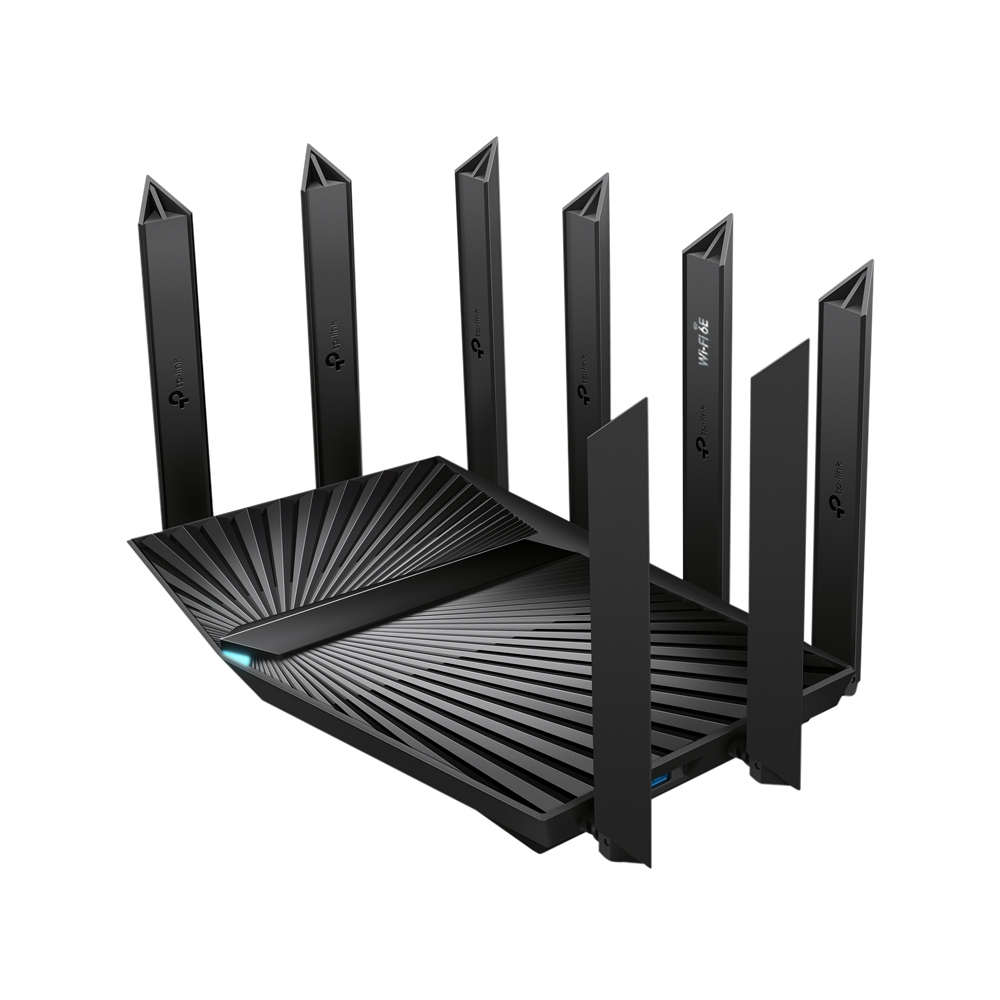

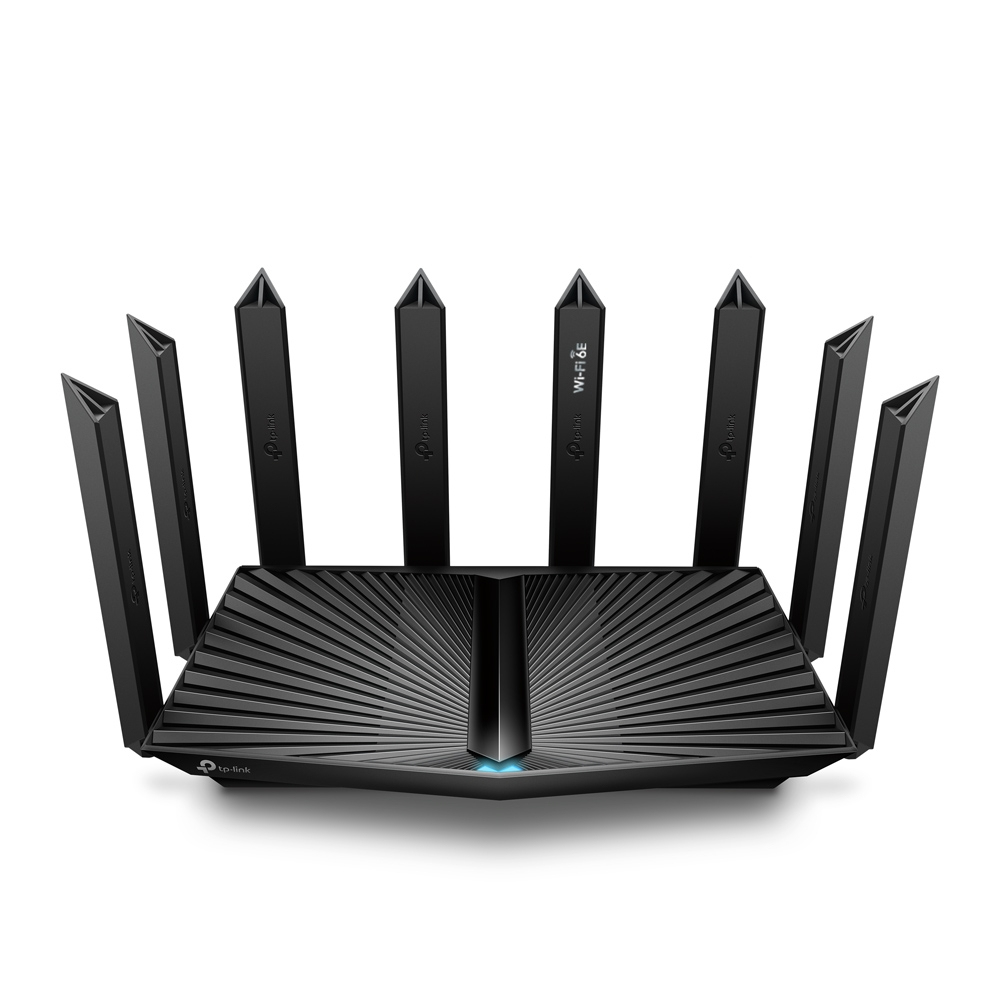

Archer AXE95 wireless router 2.5 Gigabit Ethernet Tri-band (2.4 GHz
5 GHz / 6 GHz) Black
Model AXE95Part no. ARCHER AXE95EAN 840030707490
73 specifications
- SpeedWi-Fi 6E (802.11ax)
- TypeTabletop router
- ColourBlack
- Ethernet WANYes
- Ethernet LAN (RJ-45) ports5
- Antenna designExternal
Overview
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- Tabletop router
- Colour
- Black
- Ethernet WAN
- Yes
- Ethernet LAN (RJ-45) ports
- 5
- Antenna design
- External
- Brand
- TP-Link
- Category
- Wireless Router
- Model
- AXE95
- Part number
- ARCHER AXE95
- EAN / UPC
- 840030707490, 4897098687499
- Also known as
- TP-Link Archer AXE95 wireless router 2.5 Gigabit Ethernet Tri-band (2.4 GHz / 5 GHz / 6 GHz) Black
Specifications
73 specifications in 15 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN data transfer rate (max) | 2402 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| WLAN data transfer rate (first band) | 2402 Mbit/s |
| WLAN data transfer rate (second band) | 4802 Mbit/s |
| WLAN data transfer rate (third band) | 574 Mbit/s |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Port forwarding | Yes |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| Number of guest networks (6 GHz) | 1 |
| Support Samba (storage) | Yes |
| Media server | Yes |
| VPN server | OpenVPN Server, PPTP VPN Server, L2TP VPN Server |
| VPN support | OpenVPN Server PPTP VPN Server L2TP VPN Server Open VPN Client PPTP VPN Client L2TP VPN Client |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| MU-MIMO technology | Yes |
| Cloud-managed | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3 |
| Firewall | Yes |
| Firewall security | SPI Firewall |
| Guest access | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| DDoS protection | Yes |
| Parental control | Yes |
| Filtering | Yes |
| IGMP snooping | Yes |
| DMZ support | Yes |
| Network address translation (NAT) | Yes |
| NAT functionality | Port Forwarding Port Triggering DMZ UPnP Virtual Server |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Management protocols | Tether App, Webpage |
| Supported network protocols | IPv4, IPv6 |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | Black |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Packaging content | Wi-Fi Router Archer AXE95 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, RoHS |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antennas quantity | 8 |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 1700 MHz |
| Processor cores | 4 |
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Output voltage | 12 V |
| Output current | 3.3 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 207 mm |
| Height | 174 mm |
| Width | 311 mm |
