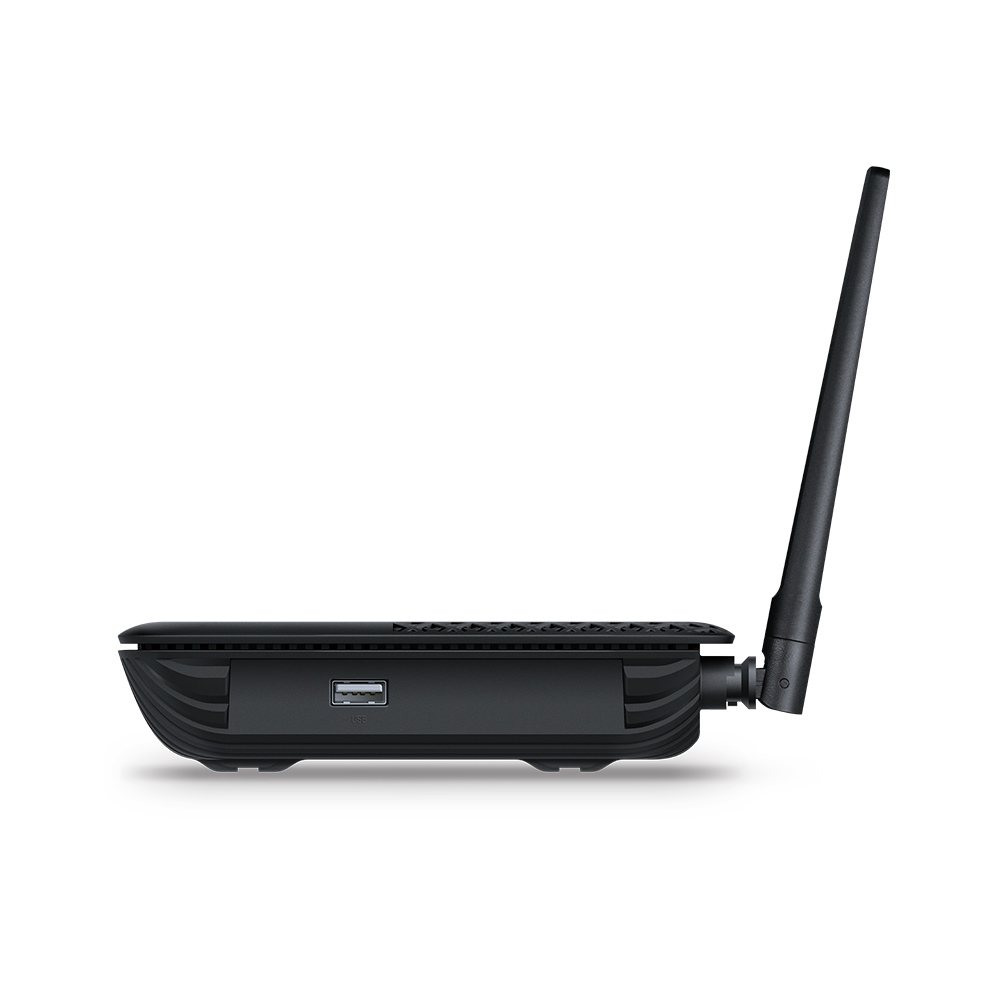

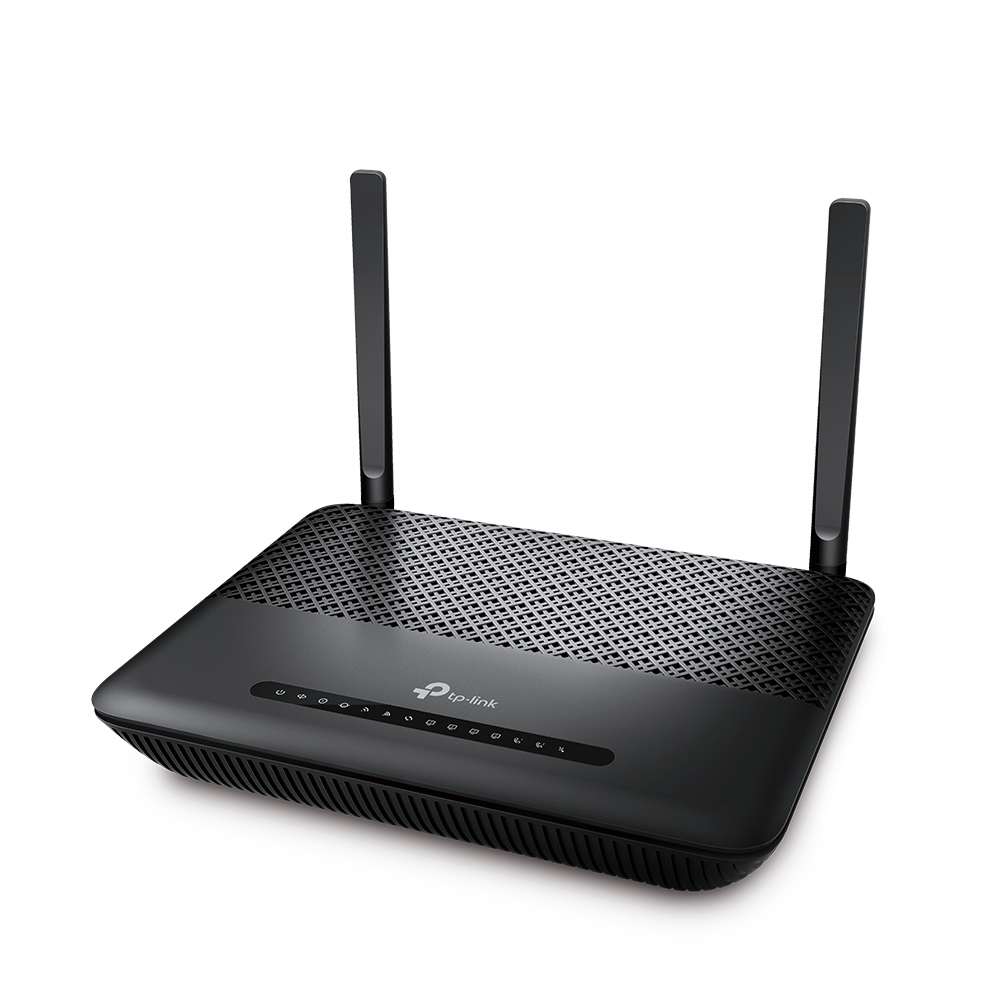

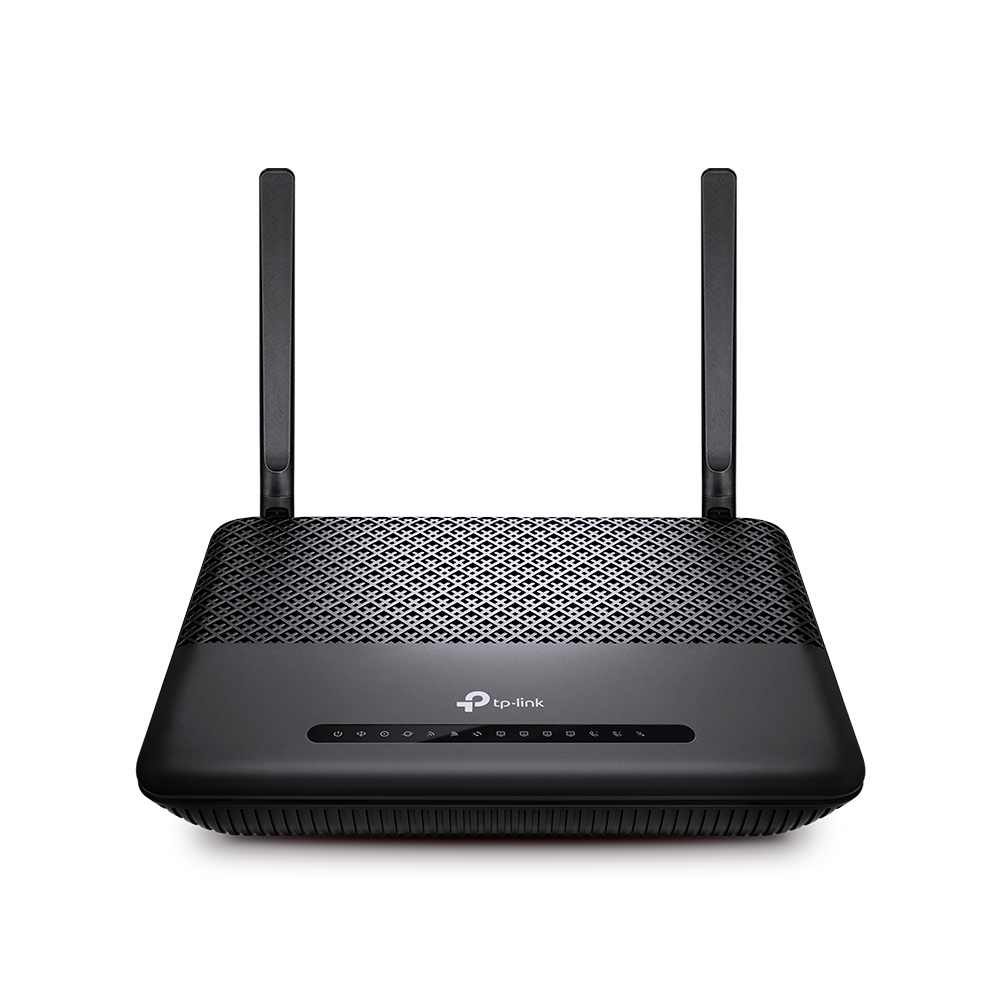

TP-Link Archer XR500v

Archer XR500v

Model Archer XR500vPart no. ARCHER XR500VEAN 6935364086176

71 specifications

SpeedWi-Fi 5 (802.11ac)
TypeTabletop router
ColourBlack
Ethernet WANYes
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
3GNo

See all specifications

Overview

Speed: Wi-Fi 5 (802.11ac)
Type: Tabletop router
Colour: Black
Ethernet WAN: Yes
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
3G: No

Brand: TP-Link
Category: Wireless Router
Model: Archer XR500v
Part number: ARCHER XR500V
EAN / UPC: 6935364086176
Also known as: TP-Link Archer XR500v wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black

Specifications

71 specifications in 17 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	Yes

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1200 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Port forwarding	Yes
Dynamic DNS (DDNS)	Yes
Static route	Yes
VPN Passthrough	Yes
VPN support	PPTP, L2TP, IPSec Pass-through

Mobile network

Specification	Value
3G	No
4G	No

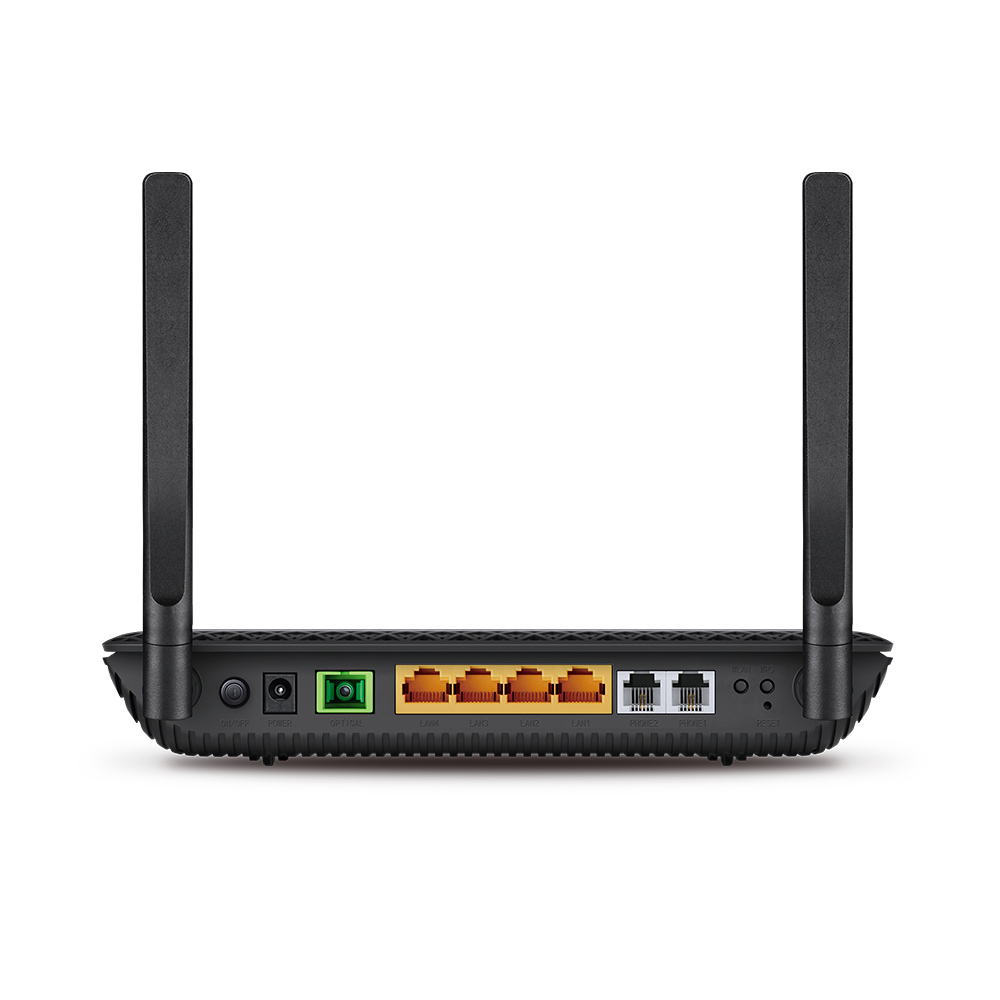

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 2.0 ports quantity	1
RJ-11 ports quantity	2
Memory card slot(s)	No
DC-in jack	Yes

Management features

Specification	Value
Quality of Service (QoS) support	Yes
Reset button	Yes
WPS push button	Yes

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Firewall	Yes
Access Control List (ACL)	Yes
DoS attack prevention	Yes
MAC address filtering	Yes
IP address filtering	Yes
URL filtering	Yes
DMZ support	Yes
Network address translation (NAT)	Yes

Protocols

Specification	Value
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes
Management protocols	HTTP, OMCI CWMP (TR-069)
Data link protocols	IPv6 dual stack, IPv4 dual stack
VoIP protocols	SIP (RFC3261), RTP (RFC1889/3550), ITU-T G.711A/u, G.722, G.729AB, G.726 T.38 pass-through

Design

Specification	Value
Product type	Tabletop router
Product colour	Black
On/off switch	Yes

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick installation guide	Yes

Certificates

Specification	Value
Certification	CE, RoHS

Antenna

Specification	Value
Antenna design	External
Antenna gain level (max)	4 dBi
Antennas quantity	2
Transmit power	23 dBmW

Power

Specification	Value
Power source type	DC
Output voltage	12 V
Output current	1.5 A

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C

System requirements

Specification	Value
Windows operating systems supported	Windows 2000, Windows 7, Windows 8, Windows 98SE, Windows NT
Linux operating systems supported	Yes
Mac operating systems supported	Yes

Weight & dimensions

Specification	Value
Depth	155.5 mm
Height	36.8 mm
Width	217.7 mm

Other features

Specification	Value
Downstream data rate	2488 Mbit/s
Upstream data rate	1244 Mbit/s
