TP-Link Archer VR400

Archer VR400

Model Archer VR400Part no. ARCHER VR400EAN 6935364089689

78 specifications

SpeedWi-Fi 5 (802.11ac)
TypeTabletop router
ColourBlack
Ethernet WANYes
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Ethernet LAN (RJ-45) ports5

See all specifications

Overview

Speed: Wi-Fi 5 (802.11ac)
Type: Tabletop router
Colour: Black
Ethernet WAN: Yes
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Ethernet LAN (RJ-45) ports: 5

Brand: TP-Link
Category: Wireless Router
Model: Archer VR400
Part numbers: ARCHER VR400, ARCHER VR400 V2
EAN / UPC: 6935364089689, 845973096854, 1210002610834, 6935364096854 +2 more
Also known as: TP-Link AC1200 Wireless VDSL/ADSL Modem Router

Specifications

78 specifications in 17 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	Yes
SIM card slot	No
3G/4G USB modem compatibility	Yes
WAN connection type	RJ-45

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Port forwarding	Yes
Dynamic DNS (DDNS)	Yes
Static route	Yes
VPN tunnels quantity	10
VPN Passthrough	Yes
VPN support	PTP, L2TP, IPSec Passthrough

DSL features

Specification	Value
ADSL	Yes
ADSL2	Yes
ADSL2+	Yes
VDSL2	Yes

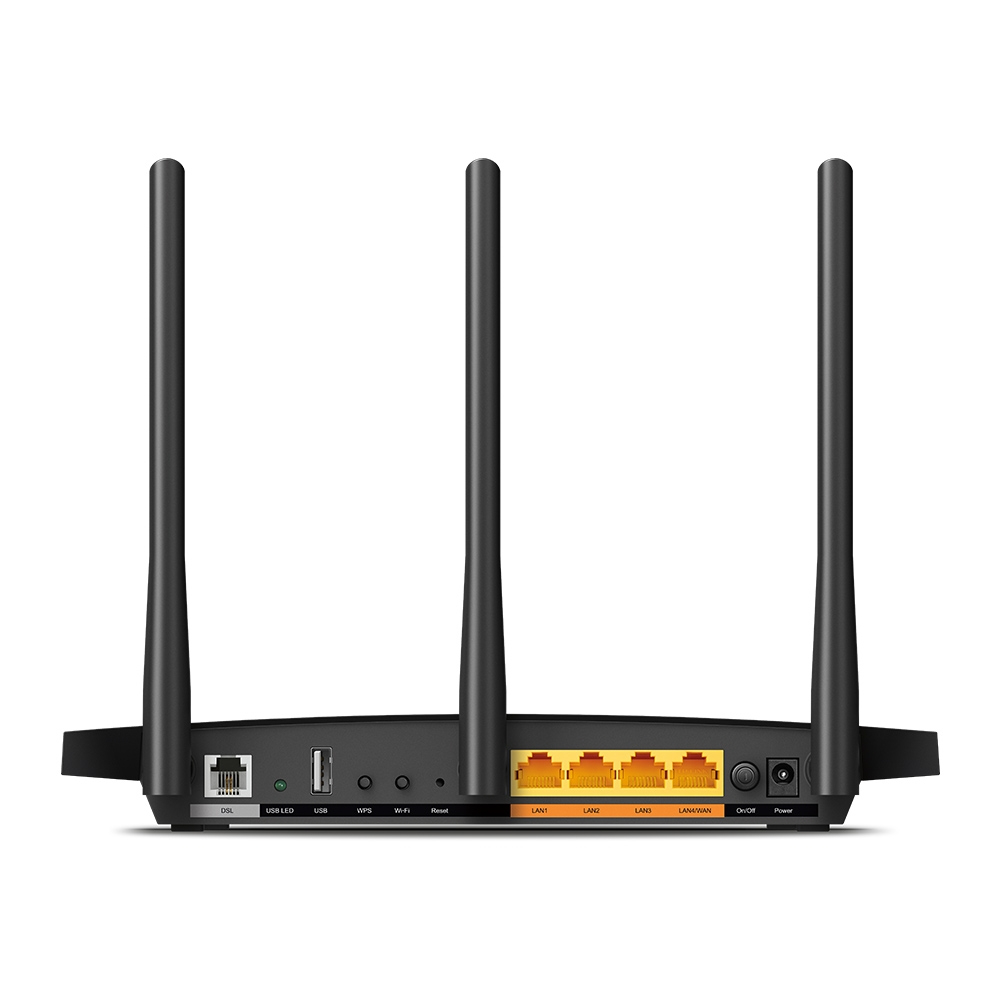

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	5
USB port	Yes
USB 2.0 ports quantity	1
Memory card slot(s)	No
DC-in jack	Yes

Management features

Specification	Value
Quality of Service (QoS) support	Yes
Reset button	Yes
WPS push button	Yes

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Firewall	Yes
Access Control List (ACL)	Yes
Guest access	Yes
Filtering	Yes
MAC address filtering	Yes
DMZ support	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes
Management protocols	SSL for TR-069, SNMP v1/2c, Web Based Firmware Upgrade, Diagnostic Tools
Supported network protocols	IPv4, IPv6

Design

Specification	Value
Product type	Tabletop router
Product colour	Black
Wall mountable	Yes
Indication light	Yes
LED indicators	LAN, Power, WLAN
On/off switch	Yes

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes
Manual	Yes
Quick start guide	Yes

Certificates

Specification	Value
Certification	CE, RoHS

Antenna

Specification	Value
Antenna design	External
Antennas quantity	3
Detachable antenna(s)	Yes

Power

Specification	Value
Power source type	AC
Output voltage	12 V
Output current	1.5 A

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C

System requirements

Specification	Value
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows
Linux operating systems supported	Yes
Mac operating systems supported	Yes

Weight & dimensions

Specification	Value
Depth	124.6 mm
Height	31.6 mm
Width	215.6 mm

Packaging data

Specification	Value
Package width	350 mm
Package depth	240 mm
Package height	82 mm
Package weight	850 g
Package type	Box
