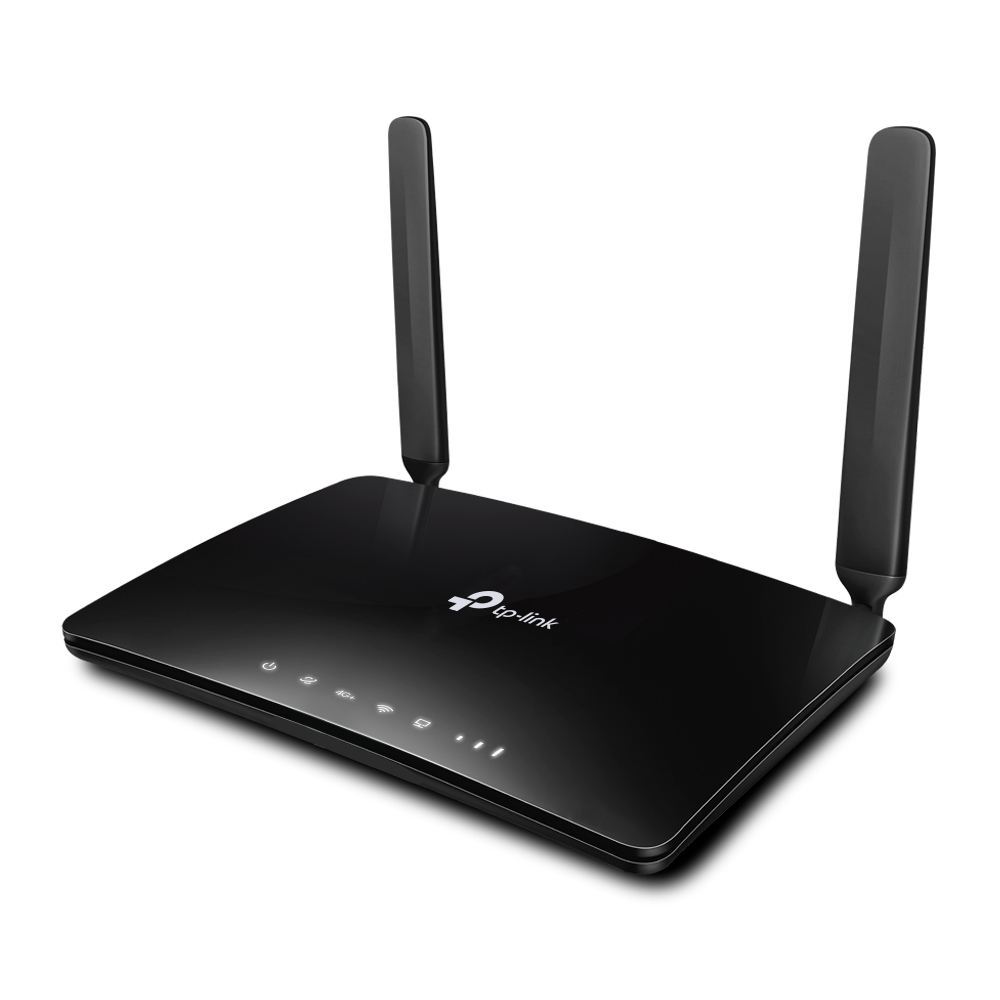

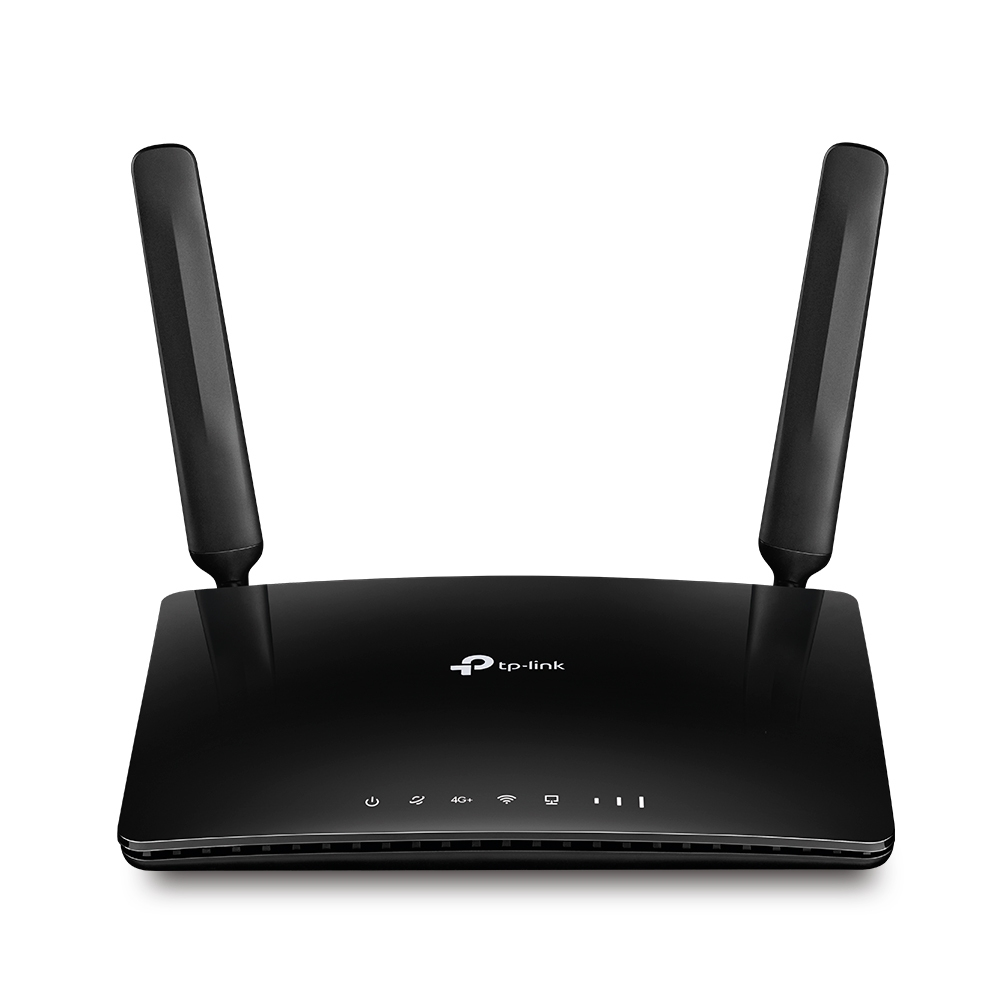

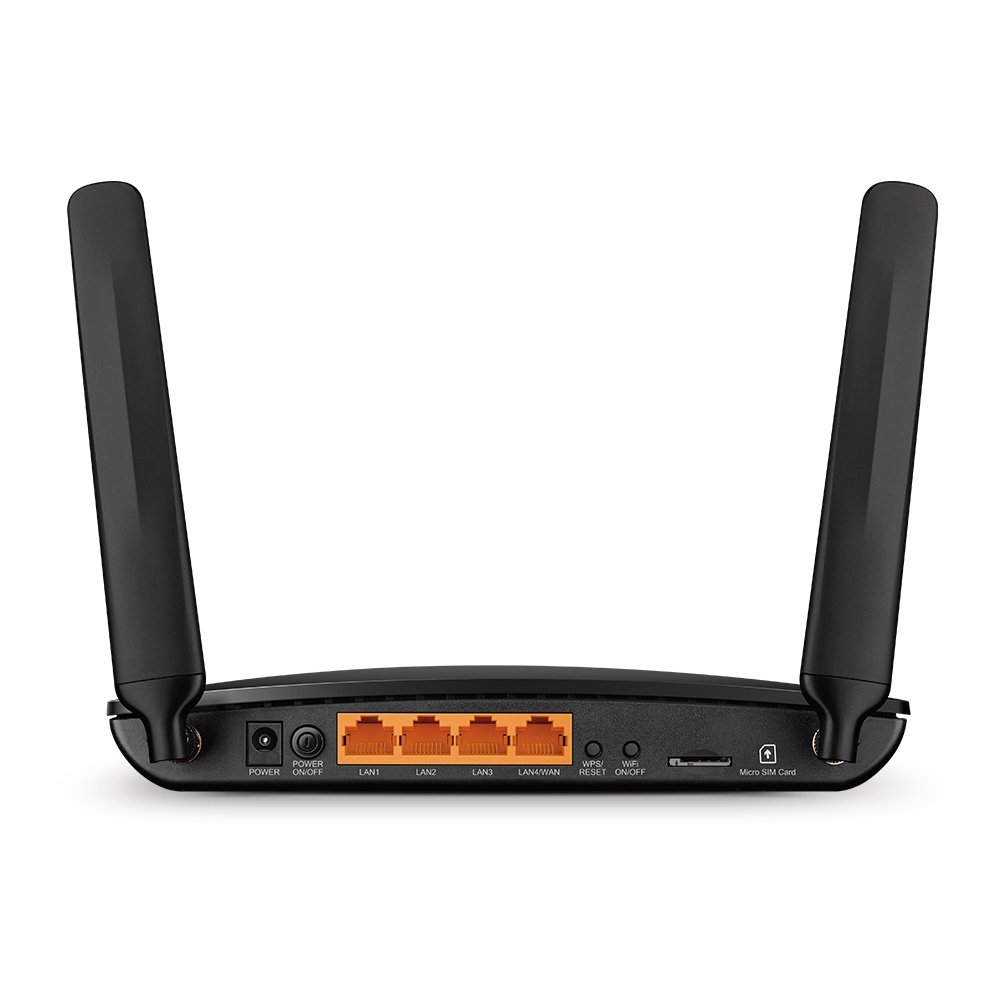

TP-Link Archer MR600 V2

Archer MR600 V2

Model Archer MR600 V2Part no. ARCHER MR600 V2

74 specifications

SpeedWi-Fi 5 (802.11ac)
TypeDesktop/pole router
ColourBlack
Ethernet WANYes
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Mobile network generation4G

See all specifications

Overview

Speed: Wi-Fi 5 (802.11ac)
Type: Desktop/pole router
Colour: Black
Ethernet WAN: Yes
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Mobile network generation: 4G

Brand: TP-Link
Category: Wireless Router
Model: Archer MR600 V2
Part number: ARCHER MR600 V2
Also known as: TP-Link Archer MR600 V2 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) 4G Black

Specifications

74 specifications in 19 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	Yes
SIM card slot	Yes
3G/4G USB modem compatibility	Yes
WAN connection type	RJ-45

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
Wi-Fi standards	802.11a, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Port forwarding	Yes
Dynamic DNS (DDNS)	Yes
VPN server	PPTP VPN, OpenVPN
Maximum Tx power (2.4 GHz)	20 dBmW
Maximum Tx power (5 GHz)	23 dBmW

Mobile network

Specification	Value
Mobile network generation	4G
3G standards	DC-HSPA+, HSPA+, UMTS
4G standard	LTE-TDD & LTE-FDD
3G bands supported	700,800,850,900,1800,2100,2600 MHz
4G bands supported	700,800,850,1800,2100,2600 MHz
SIM card type	MicroSIM

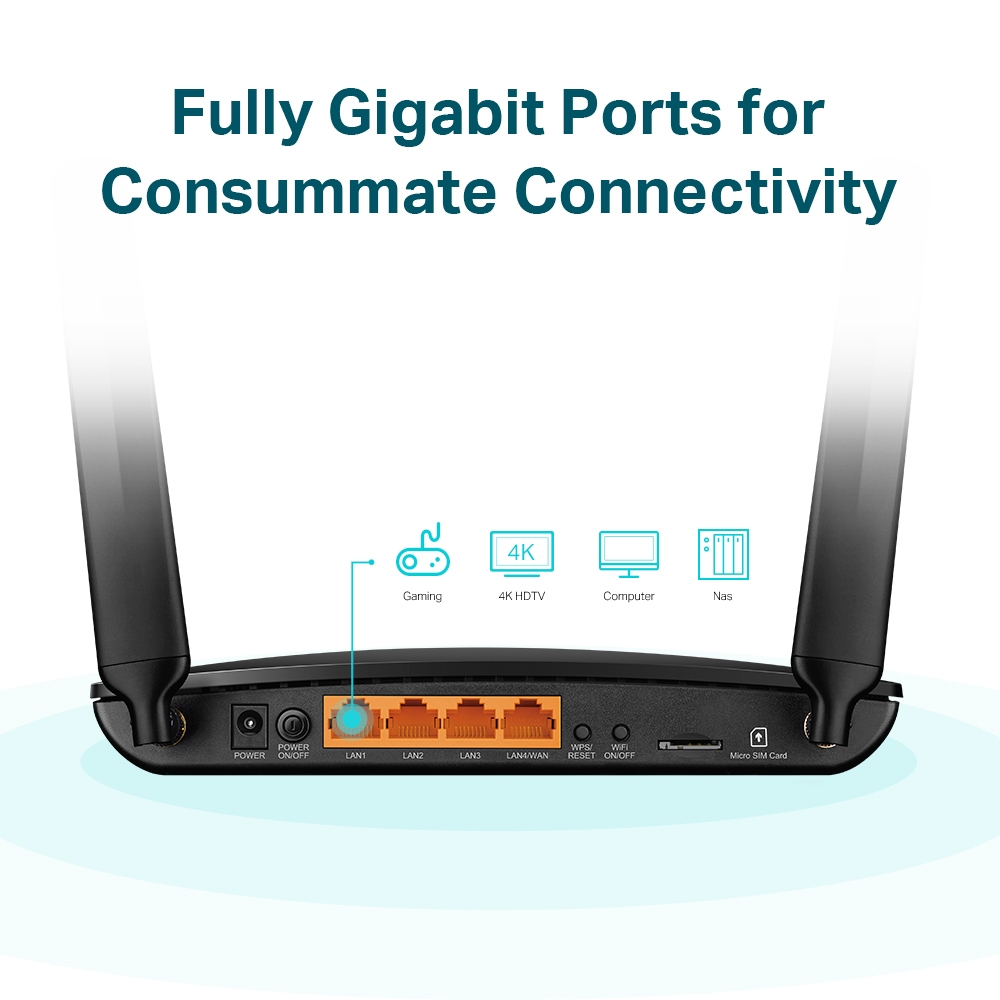

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	No
DC-in jack	Yes

Management features

Specification	Value
WPS push button	Yes
MU-MIMO technology	Yes

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Firewall	Yes
Access Control List (ACL)	Yes
Guest access	Yes
DoS attack prevention	Yes
Parental control	Yes
DMZ support	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes
Supported network protocols	IPv4, IPv6

Design

Specification	Value
Product type	Desktop/pole router
Product colour	Black

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick installation guide	Yes

Certificates

Specification	Value
Certification	CE, RoHS

Antenna

Specification	Value
Antenna design	External
Antennas quantity	2
Detachable antenna(s)	Yes

Features

Specification	Value
Firmware upgradeable	Yes

Power

Specification	Value
Power source type	DC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Output voltage	12 V
Output current	1.5 A
External power adapter	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%

System requirements

Specification	Value
Windows operating systems supported	Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Linux operating systems supported	Yes
Mac operating systems supported	Yes

Weight & dimensions

Specification	Value
Depth	141 mm
Height	33.6 mm
Width	202 mm

Packaging data

Specification	Value
Package width	307 mm
Package depth	223 mm
Package height	70 mm
Package weight	810 g
Package type	Box

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
