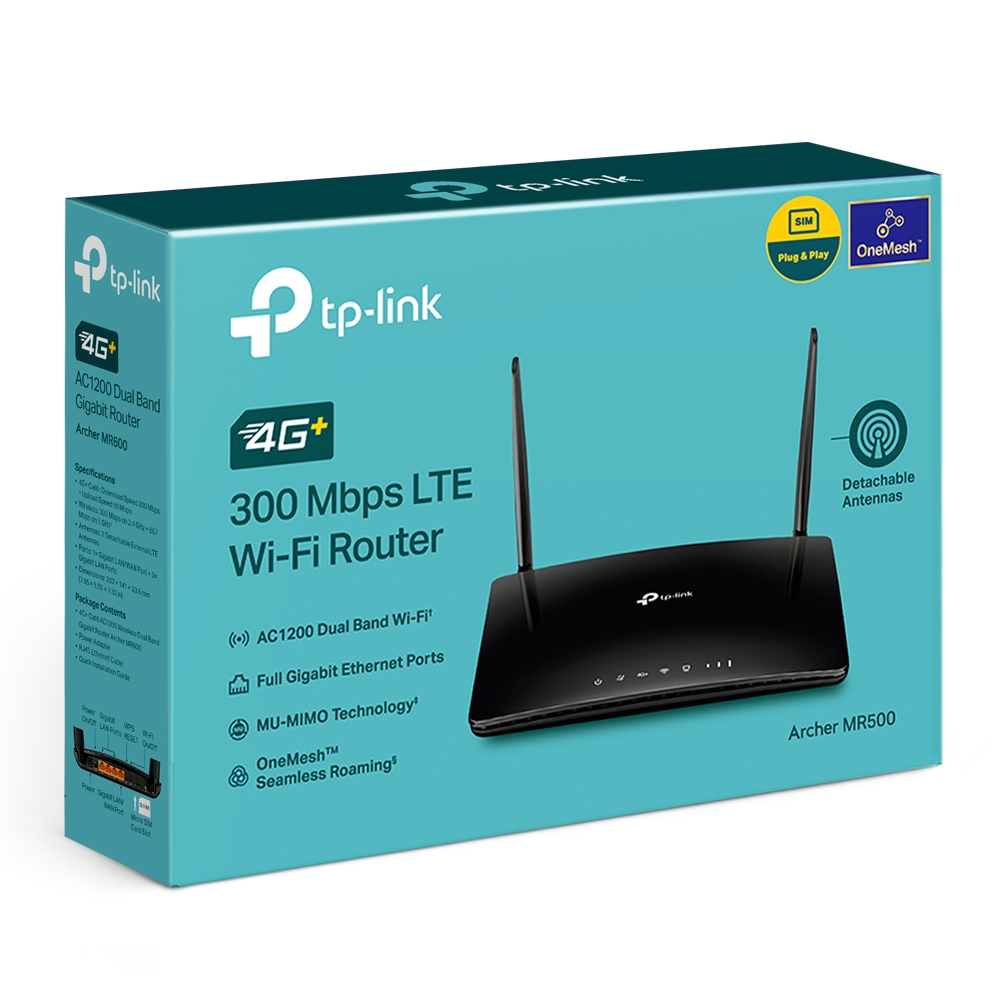

TP-Link Archer MR500

Archer MR500

Model Archer MR500Part no. ARCHER MR500_V1EAN 4897098682845

74 specifications

SpeedWi-Fi 5 (802.11ac)
TypeTabletop router
ColourBlack
Ethernet WANYes
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Mobile network generation4G

See all specifications

Overview

Speed: Wi-Fi 5 (802.11ac)
Type: Tabletop router
Colour: Black
Ethernet WAN: Yes
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Mobile network generation: 4G

Brand: TP-Link
Category: Wireless Router
Model: Archer MR500
Part numbers: ARCHER MR500_V1, MR500
EAN / UPC: 4897098682845, 4897098682852
Also known as: TP-Link Archer MR500 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) 4G Black

Specifications

74 specifications in 18 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	Yes
3G/4G USB modem compatibility	No
WAN connection type	RJ-45

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Cable standard	Cat6
Port forwarding	Yes
Dynamic DNS (DDNS)	Yes
Number of guest networks (2.4 GHz)	1
Number of guest networks (5 GHz)	1
Wireless radio	Yes
VPN server	PPTP VPN, OpenVPN

Mobile network

Specification	Value
Mobile network generation	4G
3G	Yes
4G	Yes
5G	No
3G standards	DC-HSPA+, HSPA, UMTS
4G standard	LTE-FDD
GSM bands supported	850,900,2100 MHz
SIM card type	NanoSIM

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	No
DC-in jack	Yes

Management features

Specification	Value
Wi-Fi Multimedia (WMM)/(WME)	Yes
Quality of Service (QoS) support	Yes
Wireless statistics	Yes
MU-MIMO technology	Yes

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
Firewall	Yes
Access Control List (ACL)	Yes
Guest access	Yes
Schedule access	Yes
URL filtering	Yes
DMZ support	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes
Supported network protocols	IPv4, IPv6

Design

Specification	Value
Product type	Tabletop router
Product colour	Black

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes
Antenna included	Yes
Quick installation guide	Yes

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	CE, RoHS

Antenna

Specification	Value
Antenna design	External
Antennas quantity	2
Detachable antenna(s)	Yes

Features

Specification	Value
Plug and Play	Yes
Firmware upgradeable	Yes

Power

Specification	Value
Power source type	DC

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	5 - 90 °C

System requirements

Specification	Value
Windows operating systems supported	Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Linux operating systems supported	Yes
Mac operating systems supported	Yes

Weight & dimensions

Specification	Value
Depth	141 mm
Height	33.6 mm
Width	202 mm

Packaging data

Specification	Value
Package width	307 mm
Package depth	223 mm
Package height	70 mm
Package weight	800 g
Package type	Box
