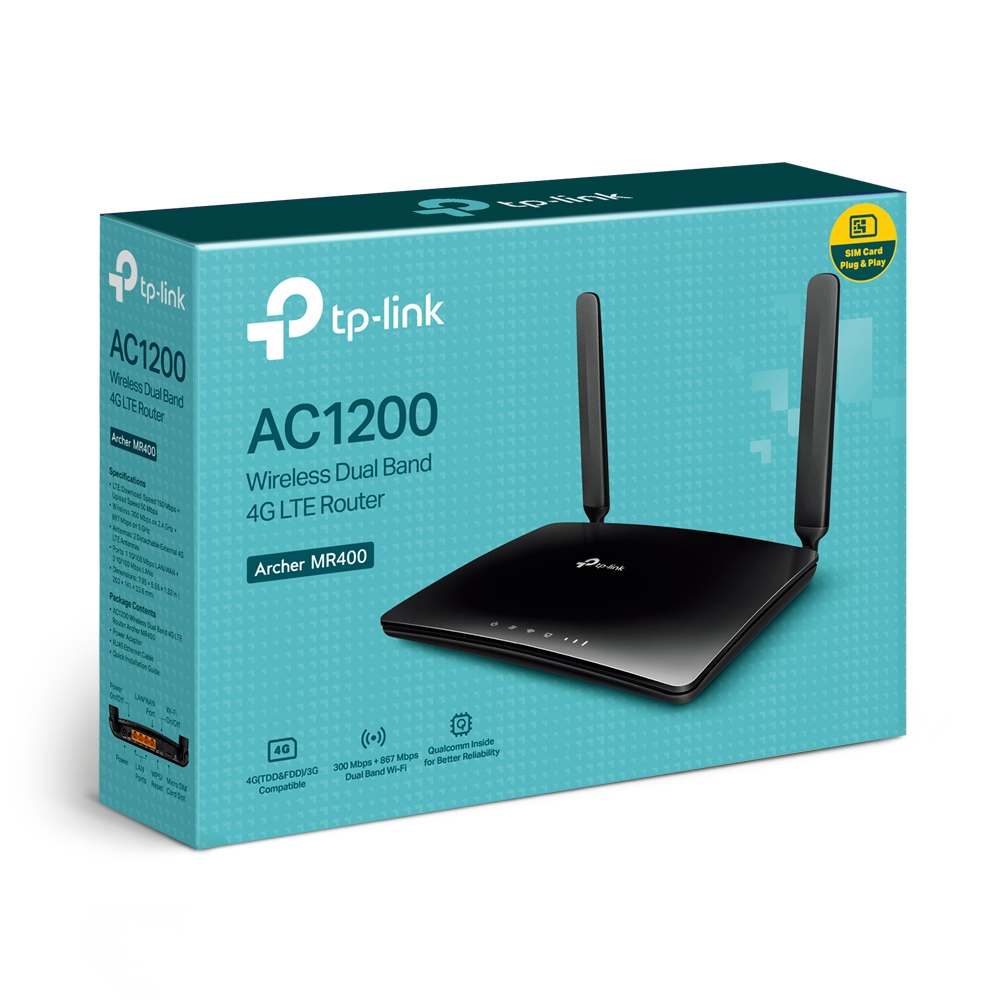

TP-Link Archer MR400

Archer MR400

Model Archer MR400Part no. ARCHER MR400EAN 1210002609395

86 specifications

SpeedWi-Fi 5 (802.11ac)
TypeTabletop router
ColourBlack
Ethernet WANYes
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Mobile network generation4G

See all specifications

Overview

Speed: Wi-Fi 5 (802.11ac)
Type: Tabletop router
Colour: Black
Ethernet WAN: Yes
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Mobile network generation: 4G

Brand: TP-Link
Category: Wireless Router
Model: Archer MR400
Part numbers: ARCHER MR400, ARCHER MR400 V3
EAN / UPC: 1210002609395, 5715328112094, 5715328282063, 6935364080662 +2 more
Also known as: TP-Link Archer AC1200 Wireless Dual Band 4G LTE Router

Specifications

86 specifications in 18 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	Yes
3G/4G USB modem compatibility	No
WAN connection type	RJ-45

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rate (first band)	450 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Port forwarding	Yes
Dynamic DNS (DDNS)	Yes
VPN server	PPTP VPN, IPSec VPN , OpenVPN
VPN tunnels quantity	10
VPN Passthrough	Yes
VPN support	PPTP, L2TP, IPSec
Receiver sensitivity	5GHz: 11a 54M: -74dBm 11ac HT20: -67dBm 11ac HT40: -64dBm 11ac HT80 : -60dBm 11n HT20: -71dBm 11n HT40: -70dBm 2.4G: 11g 54M: -76dBm 11n HT20: -73dBm 11n HT40: -67dBm

Mobile network

Specification	Value
Mobile network generation	4G
3G	Yes
4G	Yes
2G standards	Edge, GPRS, GSM
3G standards	DC-HSPA+, HSPA, HSPA+, UMTS
4G standard	LTE
3G bands supported	900,2100 MHz
4G bands supported	800,900,1800,2100,2600 MHz
GSM bands supported	850,900,1800,1900 MHz
SIM card type	MicroSIM

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	3
USB port	No
Memory card slot(s)	No
DC-in jack	Yes

Management features

Specification	Value
Web-based management	Yes
Quality of Service (QoS) support	Yes
Reset button	Yes
WPS push button	Yes

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Firewall	Yes
Access Control List (ACL)	Yes
Firewall security	DoS, SPI Firewall, IP and MAC Address Binding
Guest access	Yes
Stateful Packet Inspection (SPI)	Yes
DoS attack prevention	Yes
DMZ support	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes
Supported network protocols	IPv4, IPv6

Design

Specification	Value
Product type	Tabletop router
Product colour	Black
Wall mountable	Yes
LED indicators	LAN, Power, Status, WLAN
On/off switch	Yes

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick installation guide	Yes

Certificates

Specification	Value
Certification	CE, RoHS

Antenna

Specification	Value
Antenna design	Internal & external
Antennas quantity	2
Detachable antenna(s)	Yes
Transmit power	CE: <20dBm(2.4GHz), <23dBm(5GHz)

Power

Specification	Value
Power source type	DC
Output voltage	12 V
Output current	1.5 A

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C

System requirements

Specification	Value
Windows operating systems supported	Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Linux operating systems supported	Yes
Mac operating systems supported	macOS
Mac compatibility	Yes

Weight & dimensions

Specification	Value
Depth	124.5 mm
Height	33.5 mm
Width	174 mm

Packaging data

Specification	Value
Package width	307 mm
Package depth	223 mm
Package height	70 mm
Package weight	670 g
Package type	Box

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
