TP-Link Archer MR200

Archer MR200

Model Archer MR200Part no. ARCHER MR200 V4EAN 8592978186456

87 specifications

SpeedWi-Fi 5 (802.11ac)
TypeTabletop router
ColourBlack
Ethernet WANYes
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Mobile network generation4G

See all specifications

Overview

Speed: Wi-Fi 5 (802.11ac)
Type: Tabletop router
Colour: Black
Ethernet WAN: Yes
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Mobile network generation: 4G

Brand: TP-Link
Category: Wireless Router
Model: Archer MR200
Part numbers: ARCHER MR200 V4, ARCHER MR200, ARCHER MR200 V3
EAN / UPC: 8592978186456, 738878316427, 1210002609357, 1210002609364 +4 more
Also known as: TP-Link Archer MR200 wireless router Fast Ethernet Dual-band (2.4 GHz / 5 GHz) 4G Black

Specifications

87 specifications in 19 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	Yes
3G/4G USB modem compatibility	No

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)

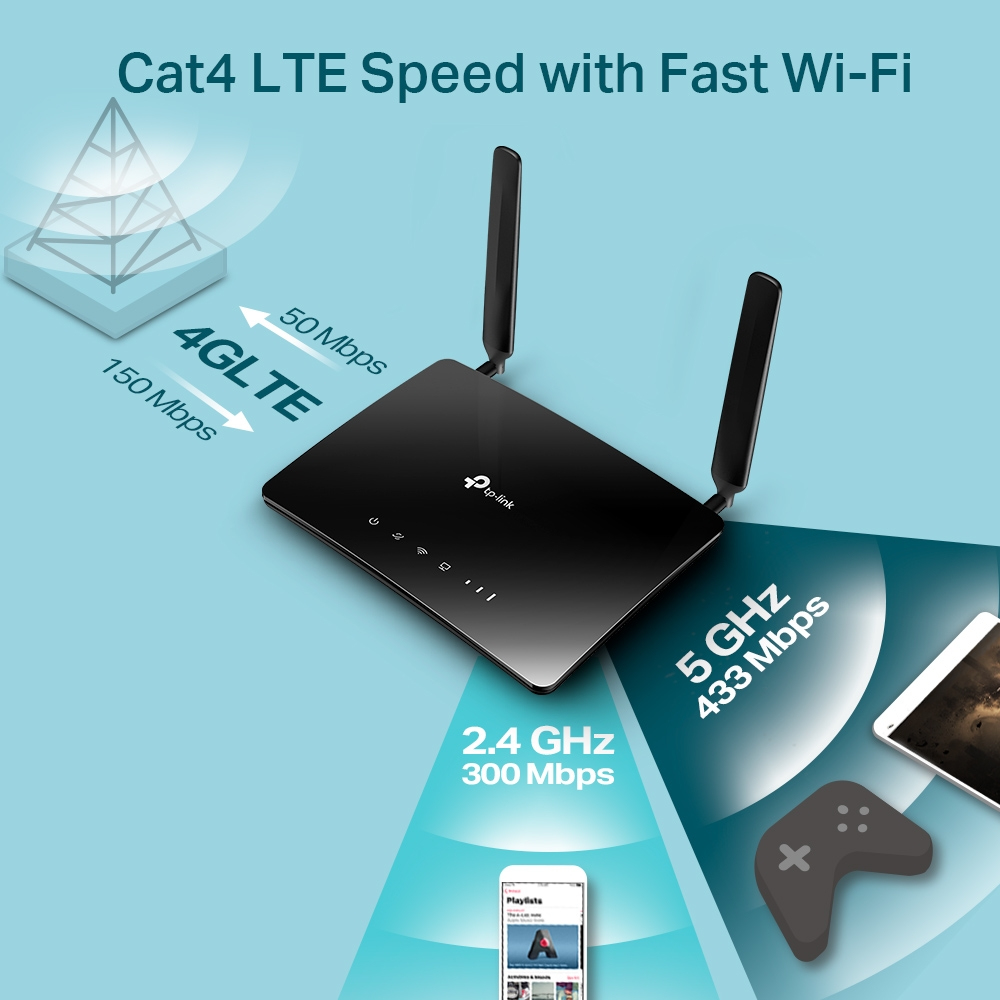

WLAN data transfer rate (max)	433 Mbit/s
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	433 Mbit/s

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Port triggering	Yes
Dynamic DNS (DDNS)	Yes
VPN server	PPTP VPN, IPSec VPN , OpenVPN
VPN Passthrough	Yes
VPN support	PPTP, L2TP, IPSec
Receiver sensitivity	5GHz: 11a 54M: -74dBm 11ac HT20: -67dBm 11ac HT40: -64dBm 11ac HT80 : -60dBm 11n HT20: -71dBm 11n HT40: -70dBm 2.4G: 11g 54M: -76dBm 11n HT20: -73dBm 11n HT40: -67dBm

Mobile network

Specification	Value
Mobile network generation	4G
3G	Yes
4G	Yes
2G standards	Edge, GPRS, GSM
3G standards	DC-HSPA+, HSPA, HSPA+, UMTS
4G standard	LTE
3G bands supported	900,2100 MHz
4G bands supported	800,900,1800,2100,2600 MHz
GSM bands supported	850,900,1800,1900 MHz

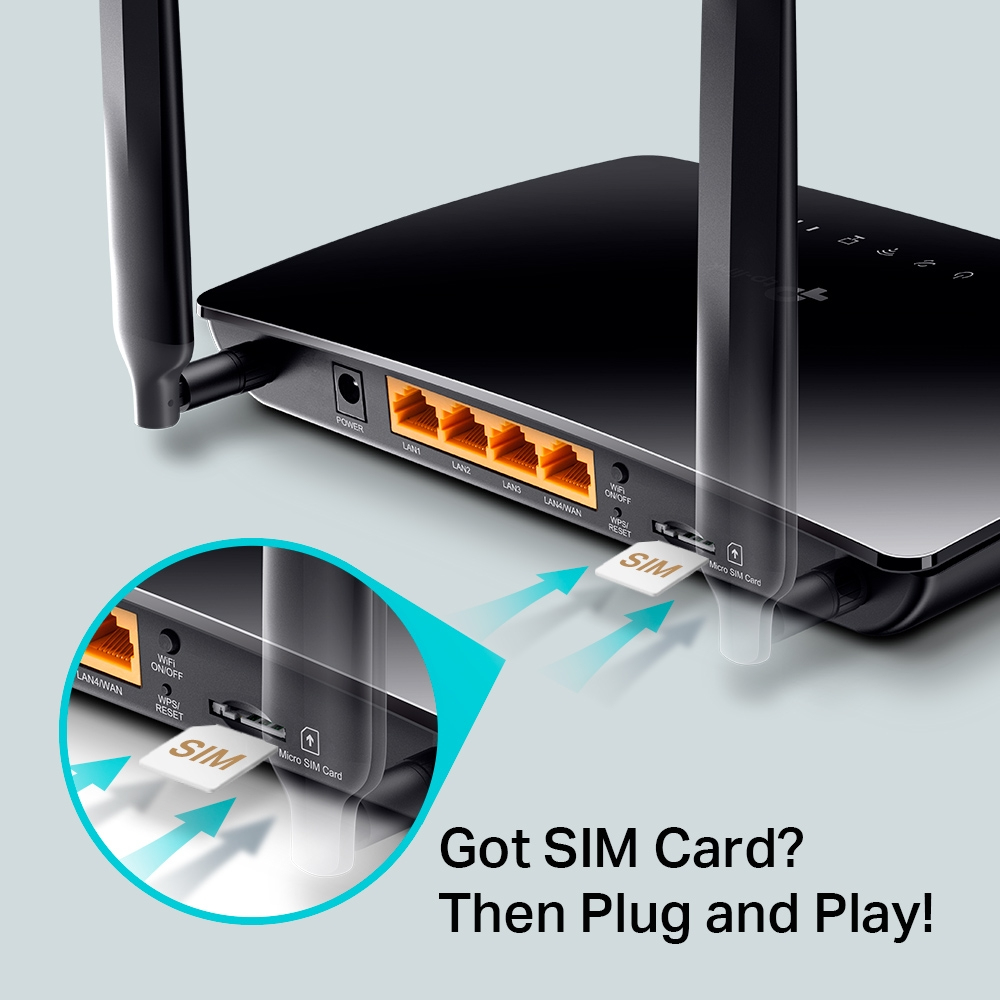

SIM card type	MicroSIM

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	No
Memory card slot(s)	No
DC-in jack	Yes

Management features

Specification	Value
Web-based management	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Quality of Service (QoS) support	Yes
Reset button	Yes
WPS push button	Yes

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Firewall	Yes
Access Control List (ACL)	Yes
Firewall security	DoS, SPI
Guest access	Yes
Stateful Packet Inspection (SPI)	Yes
DoS attack prevention	Yes
Filtering	Yes
MAC address filtering	Yes
IP address filtering	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes
Data link protocols	IPv4, IPv6

Design

Specification	Value
Product type	Tabletop router
Product colour	Black
On/off switch	Yes

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick start guide	Yes

Certificates

Specification	Value
Certification	CE, FCC, RoHS

Antenna

Specification	Value
Antenna design	External
Antennas quantity	2
Detachable antenna(s)	Yes
Transmit power	0 dBmW

Power

Specification	Value
Power source type	AC
Output voltage	12 V
Output current	1 A

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C

System requirements

Specification	Value
Windows operating systems supported	Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Linux operating systems supported	Yes
Mac operating systems supported	Yes

Weight & dimensions

Specification	Value
Depth	141 mm
Height	33.6 mm
Width	202 mm

Packaging data

Specification	Value
Micro to standard SIM card adapter	Yes
Nano to standard SIM card adapter	Yes
Package width	307 mm
Package depth	223 mm
Package height	70 mm
Package weight	620 g
Package type	Box

Logistics data

Specification	Value
Harmonized System (HS) code	85176990

Other features

Specification	Value
Input current	1 A
