TP-Link ARCHER GX90

ARCHER GX90

Model ARCHER GX90EAN 840030701023

74 specifications

SpeedWi-Fi 6 (802.11ax)
TypeTabletop router
ColourBlack
Ethernet WANYes
3GNo
Ethernet LAN (RJ-45) ports5

See all specifications

Overview

Speed: Wi-Fi 6 (802.11ax)
Type: Tabletop router
Colour: Black
Ethernet WAN: Yes
3G: No
Ethernet LAN (RJ-45) ports: 5

Brand: TP-Link
Category: Wireless Router
Model: ARCHER GX90
Part number: ARCHER GX90
EAN / UPC: 840030701023, 6935364010645, 6935364089696
Also known as: TP-Link Archer AX6600 Tri-Band Gigabit and 2.5G Gaming Router, Black

Specifications

74 specifications in 18 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	No
WAN connection type	RJ-45

Wireless LAN features

Specification	Value
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	6600 Mbit/s
Wi-Fi standards	Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax), 802.11b, Wi-Fi 5 (802.11ac), 802.11g
WLAN data transfer rate (first band)	4804 Mbit/s
WLAN data transfer rate (second band)	1201 Mbit/s
WLAN data transfer rate (third band)	574 Mbit/s

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Port forwarding	Yes
Port triggering	Yes
Number of guest networks (2.4 GHz)	1
Number of guest networks (5 GHz)	1
VPN server	OpenVPN, PPTP

Mobile network

Specification	Value
3G	No
4G	No

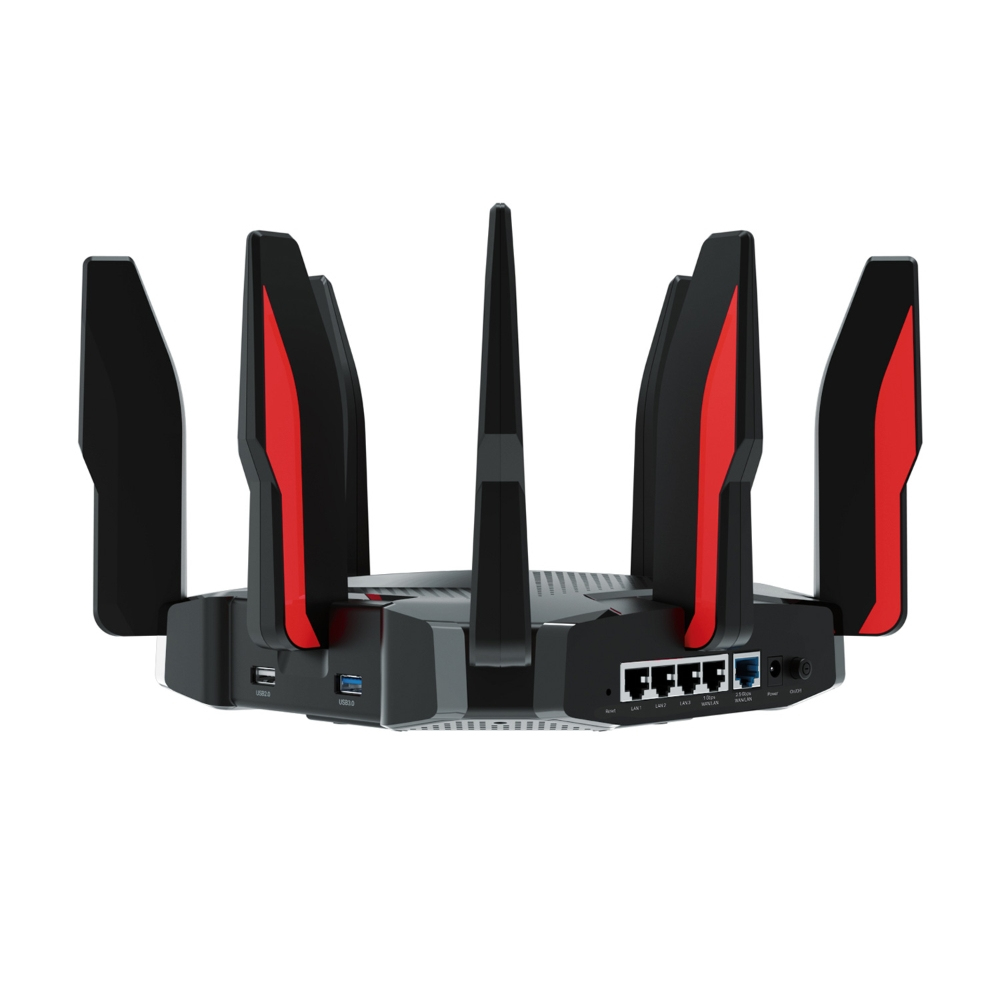

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	5
USB port	Yes
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Memory card slot(s)	No
DC-in jack	Yes

Management features

Specification	Value
Reset button	Yes
WPS push button	Yes

Security

Specification	Value
Firewall	Yes
Access Control List (ACL)	Yes
Stateful Packet Inspection (SPI)	Yes
Parental control	Yes
DMZ support	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes
Supported network protocols	IPv4, IPv6

Design

Specification	Value
Product type	Tabletop router
Product colour	Black
Indication light	Yes
LED indicators	LAN, Power, WLAN
On/off switch	Yes

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes
Manual	Yes

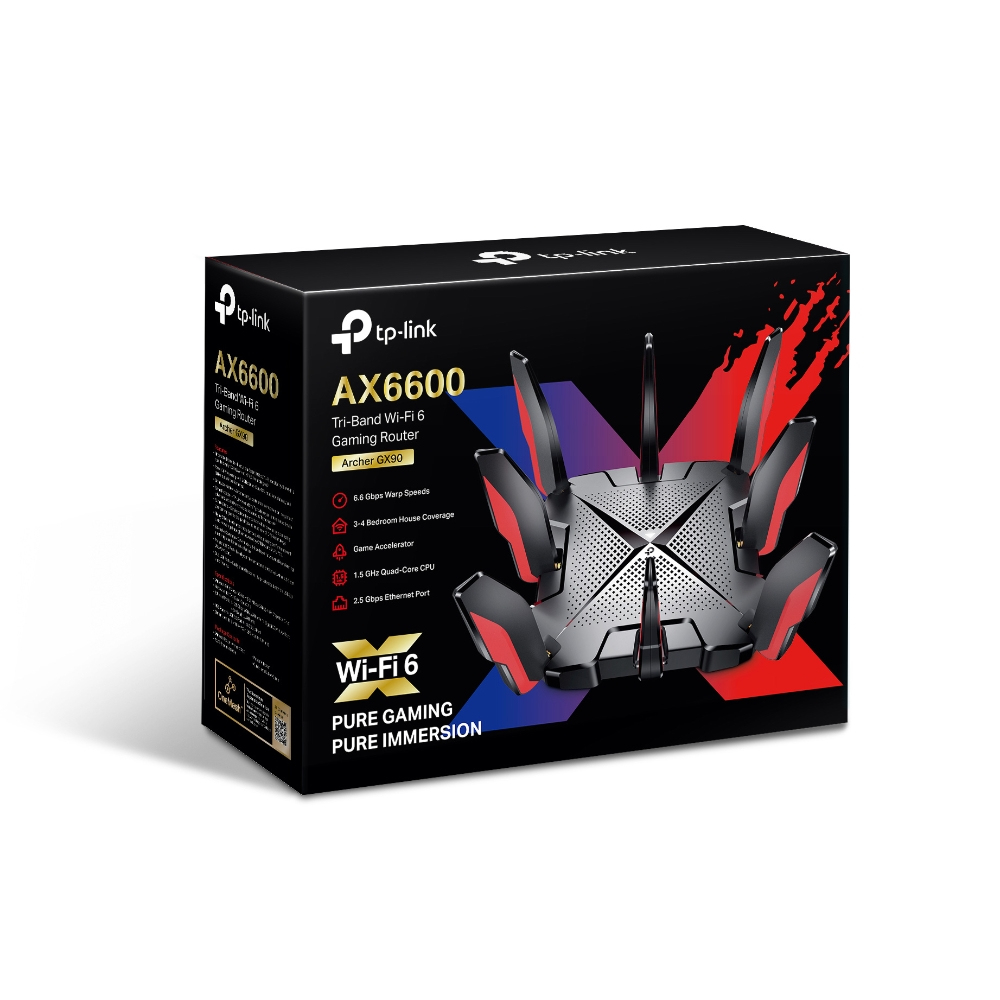

Packaging content	1 x TP-Link Archer AX6600 Tri-Band Gigabit and 2.5G Gaming Router, Black

Certificates

Specification	Value
Certification	FCC, CE, RoHS

Antenna

Specification	Value
Antenna design	External
Antennas quantity	4
Detachable antenna(s)	Yes

Features

Specification	Value
Built-in processor	Yes
Processor frequency	1500 MHz
Processor cores	4

Power

Specification	Value
Power source type	DC
Output voltage	12 V
Output current	5 A

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C

Weight & dimensions

Specification	Value
Depth	212 mm
Height	51.8 mm
Width	212 mm

Packaging data

Specification	Value
Package width	124 mm
Package depth	266 mm
Package height	38 mm
Package weight	580 g

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
Quantity per pack	1 pc(s)
Country of origin	Malaysia
