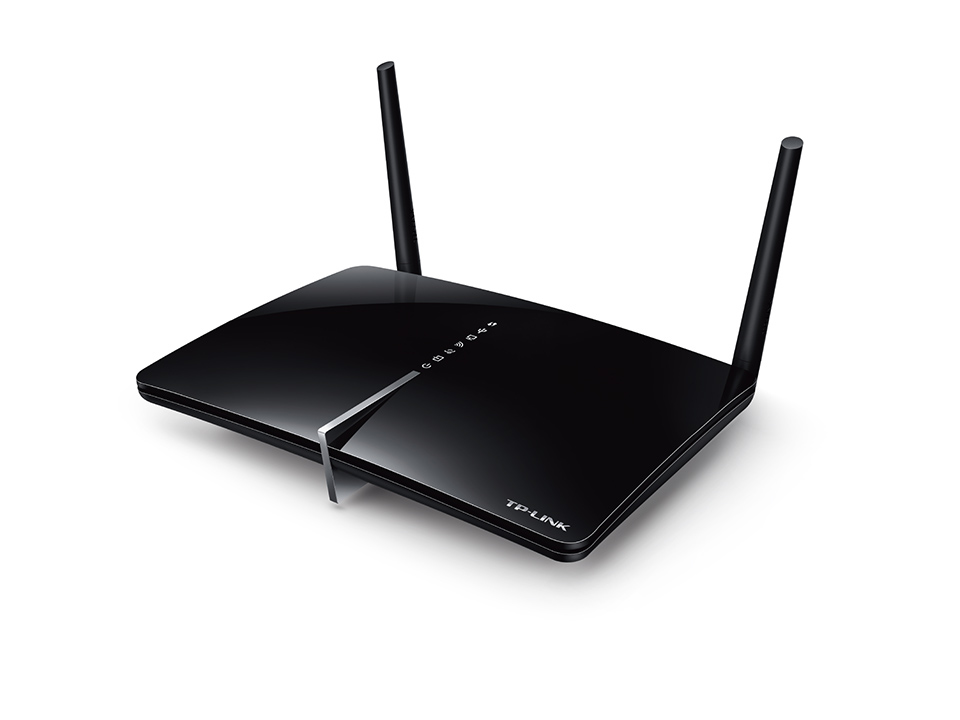

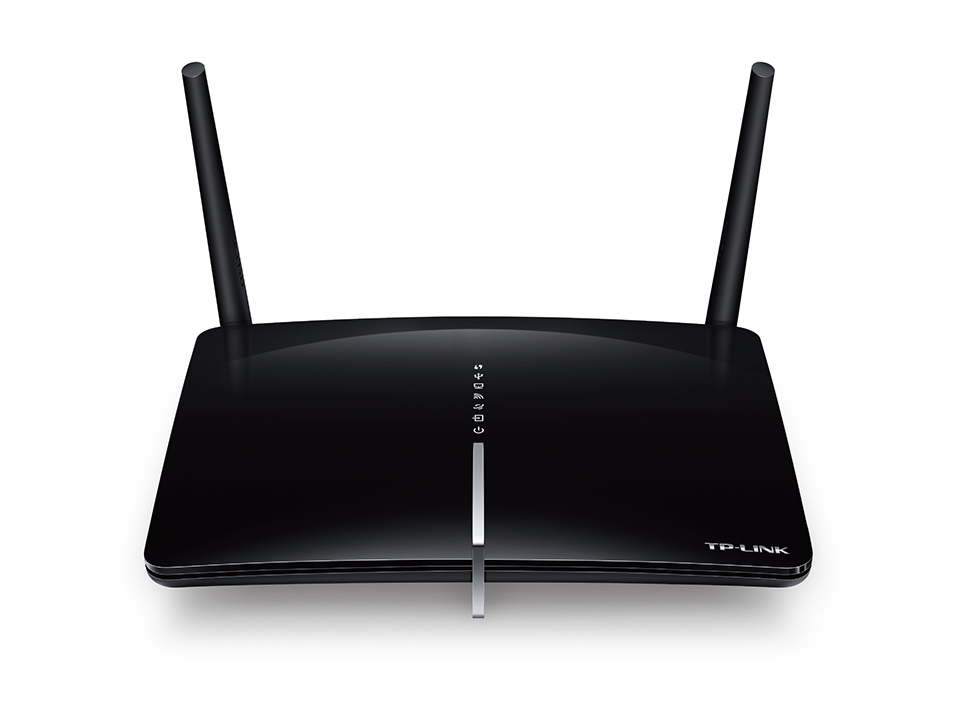

TP-Link Archer D5 V2

TP-Link Archer D5 V2

Model Archer D5 V2Part no. ARCHER D5 V2EAN 6935364092047

68 specifications
  • SpeedWi-Fi 5 (802.11ac)
  • TypeTabletop router
  • ColourBlack
  • Ethernet WANYes
  • Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
  • 3GNo
See all specifications

Overview

Speed
Wi-Fi 5 (802.11ac)
Type
Tabletop router
Colour
Black
Ethernet WAN
Yes
Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
3G
No
Brand
TP-Link
Model
Archer D5 V2
Part number
ARCHER D5 V2
EAN / UPC
6935364092047
Also known as
TP-Link Archer D5 V2 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black

Specifications

68 specifications in 17 groups

WAN connection

Ethernet WANYes
SIM card slotNo
3G/4G USB modem compatibilityNo

Wireless LAN features

Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standardWi-Fi 5 (802.11ac)
WLAN data transfer rate (max)1167 Mbit/s
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rate (first band)300 Mbit/s
WLAN data transfer rate (second band)867 Mbit/s

Network

Ethernet LANYes
Ethernet LAN interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
Cabling technology10/100/1000Base-T(X)
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
VPN tunnels quantity10
VPN supportPPTP, L2TP, IPSec

Mobile network

3GNo
4GNo

DSL features

ADSL2+Yes
DSL specificationANSI T1.413 Issue 2, ITU-T G.992.1, ITU-T G.992.2, ITU-T G.994.1, ITU-T G.995.1, ITU-T G.992.3, ITU-T G.992.4, ITU-T G.992.5

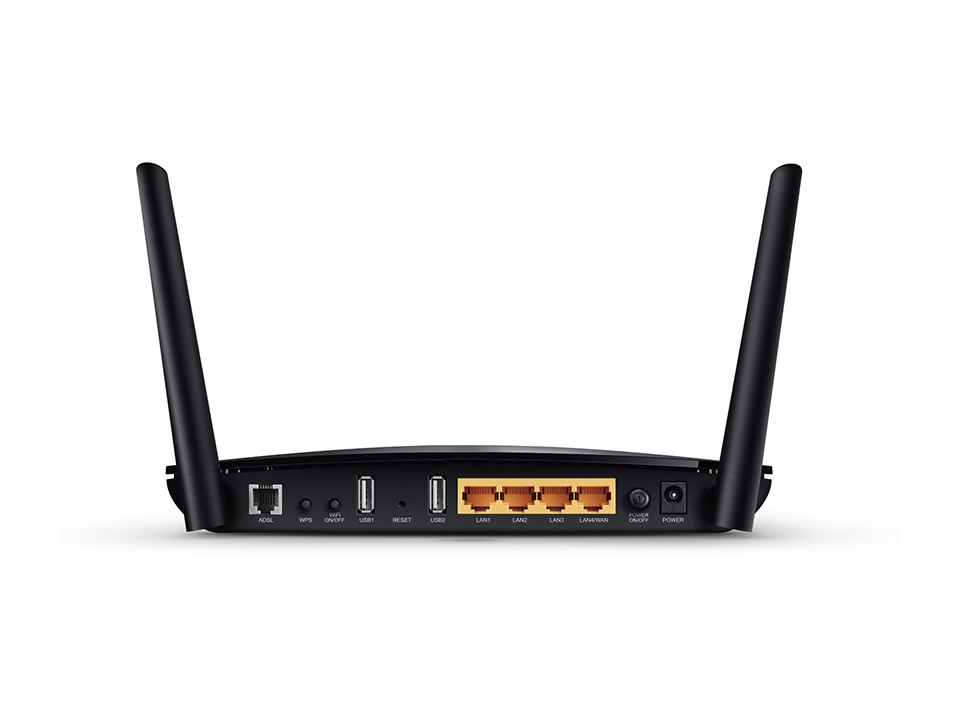

Ports & interfaces

Ethernet LAN (RJ-45) ports4
USB portYes
USB 2.0 ports quantity2
RJ-11 ports quantity1
Memory card slot(s)No
DC-in jackYes

Management features

Web-based managementYes
Quality of Service (QoS) supportYes
Reset buttonYes
WPS push buttonYes

Security

Security algorithms64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS
FirewallYes
FilteringYes
MAC address filteringYes
IP address filteringYes
URL filteringYes
DMZ supportYes

Protocols

DHCP clientYes
DHCP serverYes
Universal Plug and Play (UPnP)Yes
Switching protocolsDNS, DDNS
Management protocolsHTTP, SNMP v1/2c, IGMP
Supported network protocolsPPPoE, PPPoATM, IPoA, MER/PoE

Design

Product typeTabletop router
Product colourBlack
Wall mountableYes
LED indicatorsADSL, Activity, LAN, WLAN
On/off switchYes

Packaging content

Cables includedLAN (RJ-45), Phone (RJ-11)
AC adapter includedYes
ManualYes
Quick start guideYes

Certificates

CertificationCE, FCC, RCM, RoHS

Antenna

Antenna designExternal
Antenna gain level (max)3 dBi
Antennas quantity2
Detachable antenna(s)Yes

Power

Power source typeAC

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 90%
Storage temperature (T-T)-40 - 70 °C

System requirements

Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows
Linux operating systems supportedYes
Mac operating systems supportedYes

Weight & dimensions

Depth160 mm
Height37 mm
Width229 mm
