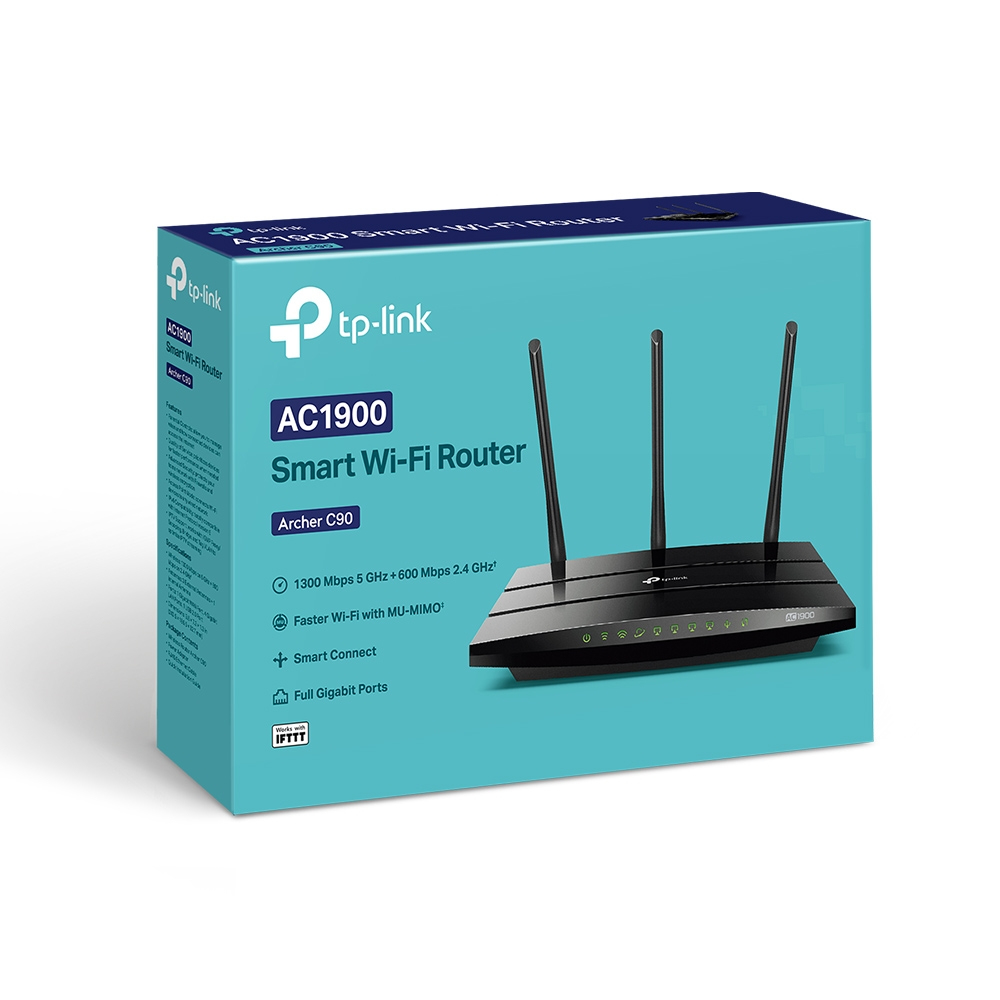

Archer C90
Model Archer C90Part no. ARCHER C90EAN 840030700095
70 specifications
- SpeedWi-Fi 5 (802.11ac)
- TypeTabletop router
- ColourBlack
- Ethernet WANYes
- 3GNo
- Ethernet LAN (RJ-45) ports5
Overview
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Tabletop router
- Colour
- Black
- Ethernet WAN
- Yes
- 3G
- No
- Ethernet LAN (RJ-45) ports
- 5
- Brand
- TP-Link
- Category
- Wireless Router
- Model
- Archer C90
- Part number
- ARCHER C90
- EAN / UPC
- 840030700095
- Also known as
- TP-Link Archer C90 wireless router Gigabit Ethernet Tri-band (2.4 GHz / 5 GHz / 5 GHz) Black
Specifications
70 specifications in 15 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 1300 Mbit/s |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (first band) | 600 Mbit/s |
| WLAN data transfer rate (second band) | 1300 Mbit/s |
| WLAN data transfer rate (third band) | 1300 Mbit/s |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Port forwarding | Yes |
| Dynamic DNS (DDNS) | Yes |
| Static route | Yes |
| VPN support | PPTP VPN, OpenVPN |
Mobile network
| Specification | Value |
|---|---|
| 3G | No |
| 4G | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Memory card slot(s) | No |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| WPS push button | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3 |
| Firewall | Yes |
| Firewall security | DoS, SPI Firewall, IP and MAC Address Binding |
| Guest access | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| DoS attack prevention | Yes |
| DMZ support | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Switching protocols | IPv4, IPv6 |
| Routing protocols | IP |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | Black |
| Housing material | Plastic |
| Wall mountable | Yes |
| LED indicators | Link, Power, WAN, WLAN |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Manual | Yes |
| Quick start guide | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna design | Internal & external |
| Antenna gain level (max) | 30 dBi |
| Antennas quantity | 3 |
| Detachable antenna(s) | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 12 V |
| Output current | 1.5 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 160.6 mm |
| Height | 32.5 mm |
| Width | 243 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
