TP-Link Archer C80

Archer C80

Model Archer C80Part no. ARCHER C80EAN 6935364088873

77 specifications

SpeedWi-Fi 5 (802.11ac)
TypeTabletop router
ColourBlack
Ethernet WANYes
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
3GNo

See all specifications

Overview

Speed: Wi-Fi 5 (802.11ac)
Type: Tabletop router
Colour: Black
Ethernet WAN: Yes
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
3G: No

Brand: TP-Link
Category: Wireless Router
Model: Archer C80
Part numbers: ARCHER C80, ARCHER C80 V1
EAN / UPC: 6935364088873, 845973088873, 6935364053253, 1210002615969 +1 more
Also known as: TP-Link AC1900 Wireless MU-MIMO Wi-Fi Router

Specifications

77 specifications in 18 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	No
WAN connection type	RJ-45

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1300 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rate (first band)	1300 Mbit/s
WLAN data transfer rate (second band)	600 Mbit/s

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Port forwarding	Yes
Port triggering	Yes
Dynamic DNS (DDNS)	Yes
Number of guest networks (2.4 GHz)	1
Number of guest networks (5 GHz)	1
Receiver sensitivity	5 GHz: 11a 6Mbps:-98dBm, 11a 54Mbps:-78dBm, 11ac VHT20_MCS0:-98dBm, 11ac VHT20_MCS8:-72dBm 11ac VHT40_MCS0:-92dBm, 11ac VHT40_MCS9:-68dBm 11ac VHT80_MCS0:-89dBm, 11ac VHT80_MCS9:-64dBm 2.4 GHz: 11g 6Mbps:-97dBm, 11a 54Mbps:-77dBm 11n VHT20_MCS0:-97dBm, 11n VHT20_MCS8:-72dBm 11n VHT40_MCS0:-92dBm, 11

Mobile network

Specification	Value
3G	No
4G	No

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	No
Memory card slot(s)	No
DC-in jack	Yes

Management features

Specification	Value
Wi-Fi Multimedia (WMM)/(WME)	Yes
Quality of Service (QoS) support	Yes
Reset button	Yes
WPS push button	Yes

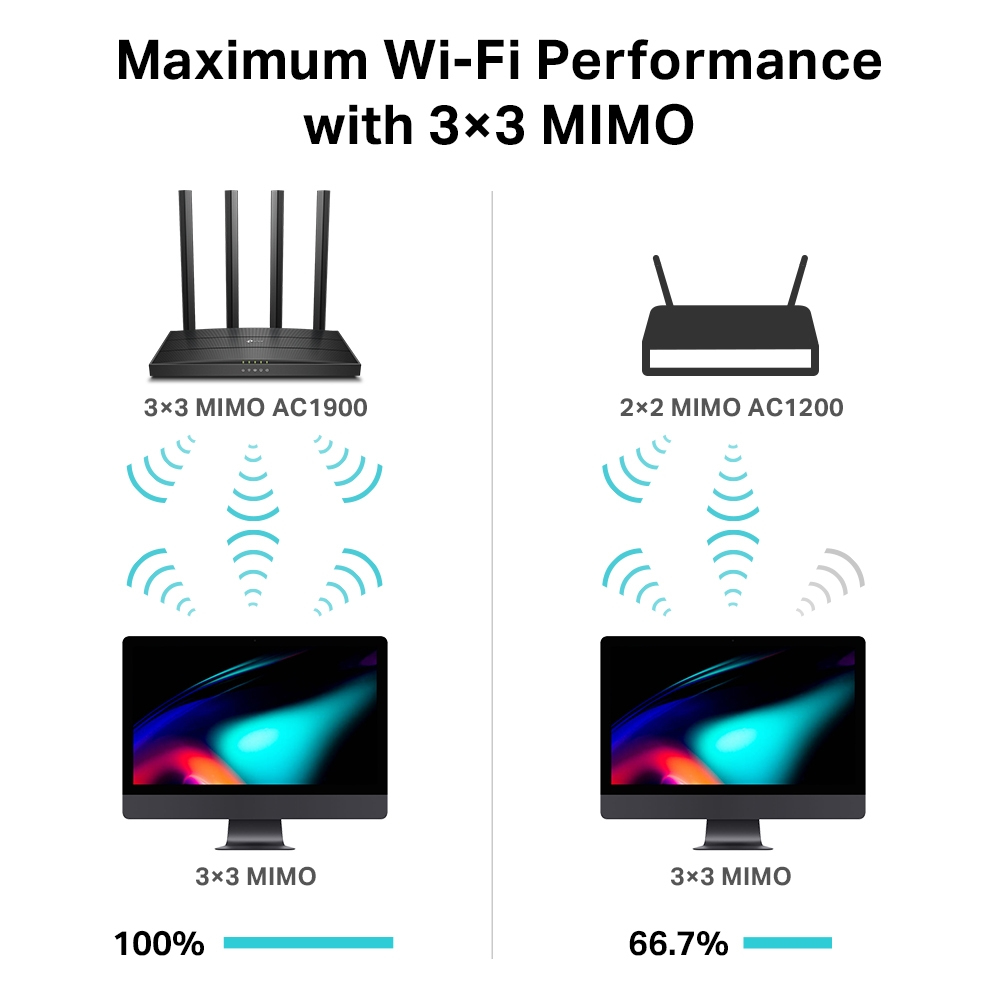

MU-MIMO technology	Yes

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Firewall	Yes
Access Control List (ACL)	Yes
Guest access	Yes
Stateful Packet Inspection (SPI)	Yes
Parental control	Yes
MAC address filtering	Yes
URL filtering	Yes
DMZ support	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes

Design

Specification	Value
Product type	Tabletop router
Product colour	Black
Wall mountable	Yes
LED indicators	LAN, Power, Status, WLAN, WPS
On/off switch	Yes

Packaging content

Specification	Value
Cables included	AC, LAN (RJ-45)
AC adapter included	Yes
Quick installation guide	Yes

Certificates

Specification	Value
Certification	CE, FCC, RoHS

Antenna

Specification	Value
Antenna design	External
Antennas quantity	4
Transmit power	CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz), FCC:<30dBm(2.4 GHz & 5 GHz)

Power

Specification	Value
Power source type	DC
Output voltage	12 V
Output current	1 A

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C

System requirements

Specification	Value
Browser supported	Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic
Linux operating systems supported	Yes
Mac operating systems supported	macOS
Mac compatibility	Yes

Weight & dimensions

Specification	Value
Depth	117 mm
Height	32 mm
Width	215 mm

Packaging data

Specification	Value
Package width	350 mm
Package depth	240 mm
Package height	82 mm
Package weight	800 g

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
