TP-Link Archer C7

Archer C7

Model Archer C7Part no. ARCHER C7 V5EAN 8716065302202

83 specifications

SpeedWi-Fi 5 (802.11ac)
TypeTabletop router
ColourBlack
Ethernet WANYes
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
3GNo

See all specifications

Overview

Speed: Wi-Fi 5 (802.11ac)
Type: Tabletop router
Colour: Black
Ethernet WAN: Yes
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
3G: No

Brand: TP-Link
Category: Wireless Router
Model: Archer C7
Part number: ARCHER C7 V5
EAN / UPC: 8716065302202, 042215404365, 132018352465, 651231851260 +10 more
Also known as: TP-Link AC1750 Wireless Dual Band Gigabit WiFi Router

Specifications

83 specifications in 18 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	No
WAN connection type	RJ-45

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1300 Mbit/s
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rate (first band)	1300 Mbit/s
WLAN data transfer rate (second band)	450 Mbit/s

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3u
Port forwarding	Yes
Port triggering	Yes
Dynamic DNS (DDNS)	Yes
Number of guest networks (2.4 GHz)	1
Number of guest networks (5 GHz)	1
Support Samba (storage)	Yes
USB sharing	Yes
Wireless Distribution System (WDS) bridge	Yes
Built-in FTP server	Yes
Media server	Yes
VPN Passthrough	Yes
VPN support	PPTP, L2TP, IPSec

Mobile network

Specification	Value
3G	No
4G	No

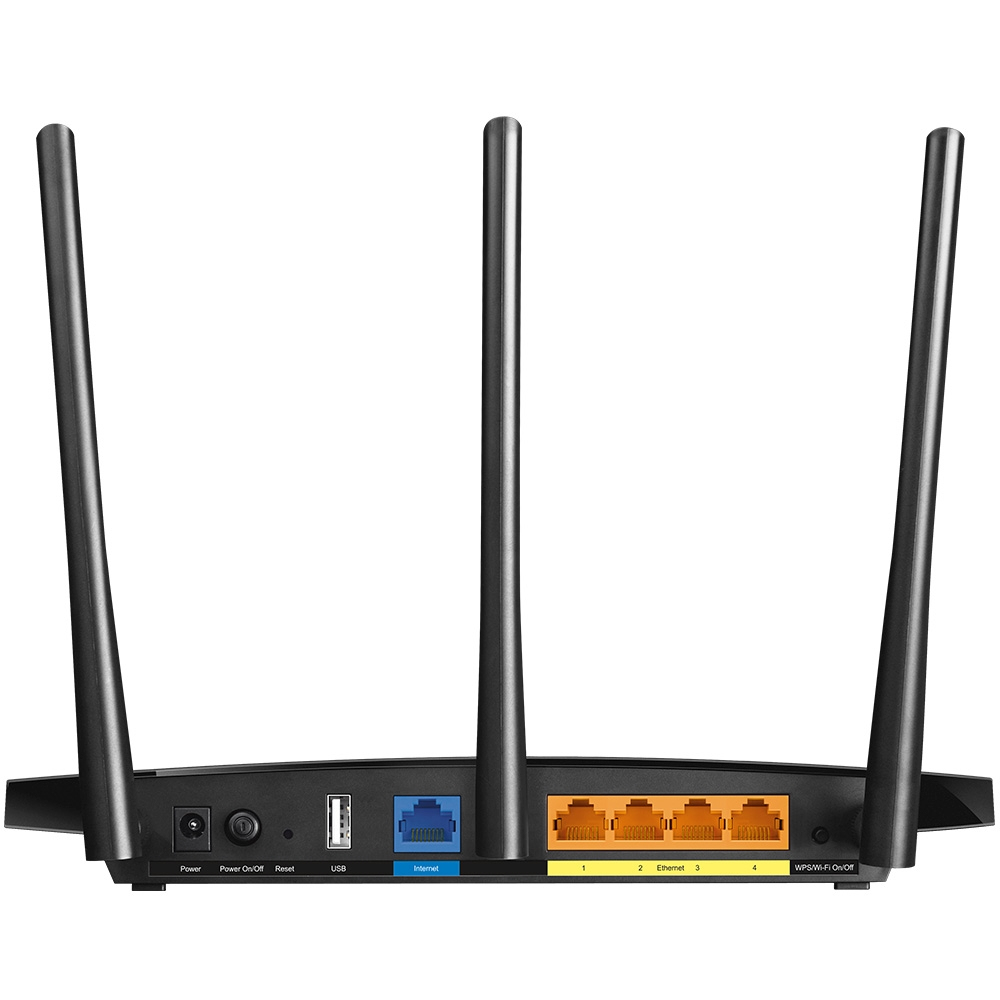

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 2.0 ports quantity	1
DC-in jack	Yes

Management features

Specification	Value
Wi-Fi Multimedia (WMM)/(WME)	Yes
Quality of Service (QoS) support	Yes
Reset button	Yes
WPS push button	Yes

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Firewall	Yes
Access Control List (ACL)	Yes
Firewall security	DoS, SPI Firewall, IP and MAC Address Binding
Guest access	Yes
Stateful Packet Inspection (SPI)	Yes
DoS attack prevention	Yes
Parental control	Yes
DMZ support	Yes
Network address translation (NAT)	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes
Supported network protocols	IPv4, IPv6

Design

Specification	Value
Product type	Tabletop router
Product colour	Black
Wall mountable	Yes
LED indicators	LAN, Power, Status, WLAN, WPS
On/off switch	Yes

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick installation guide	Yes

Certificates

Specification	Value
Certification	CE, FCC, RoHS

Antenna

Specification	Value
Antenna design	External
Antennas quantity	3
Detachable antenna(s)	Yes

Power

Specification	Value
Power source type	DC
Output voltage	12 V
Output current	1.5 A

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C

System requirements

Specification	Value
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows XP
Linux operating systems supported	Yes
Mac operating systems supported	macOS
Mac compatibility	Yes

Weight & dimensions

Specification	Value
Depth	160 mm
Height	32.7 mm
Width	243.5 mm

Packaging data

Specification	Value
Package width	330 mm
Package depth	240 mm
Package height	80 mm
Package weight	900 g

Other features

Specification	Value
WLAN data transfer rates supported	6,54,450,1300 Mbit/s
