Archer C6
Model Archer C6Part no. ARCHER C6 V 3.2EAN 6935364089399
75 specifications
- SpeedWi-Fi 5 (802.11ac)
- TypeTabletop router
- ColourBlack
- Ethernet WANYes
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
- 3GNo
Overview
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Tabletop router
- Colour
- Black
- Ethernet WAN
- Yes
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- 3G
- No
- Brand
- TP-Link
- Category
- Wireless Router
- Model
- Archer C6
- Part numbers
- ARCHER C6 V 3.2, ARCHER C6 V2, ARCHER C6 V3.20
- EAN / UPC
- 6935364089399, 845973084110, 6935364081218, 6935364084110 +1 more
- Also known as
- TP-Link AC1200 Wireless MU-MIMO Gigabit WiFi Router
Specifications
75 specifications in 16 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 867 Mbit/s |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (second band) | 867 Mbit/s |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Port forwarding | Yes |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| Wireless Distribution System (WDS) bridge | Yes |
| Receiver sensitivity | 5GHz: 11a 6Mbps:-93dBm；11a 54Mbps:-78dBm； 11ac HT20 mcs8:-69dBm;11ac HT40 mcs9:-65dBm; 11ac HT80 mcs9:-62dBm; 2.4GHz: 11g 54Mbps:-78dBm; 11n HT20 mcs7:-74dBm; 11n HT40 mcs7:-71dbm |
Mobile network
| Specification | Value |
|---|---|
| 3G | No |
| 4G | No |
Ports & interfaces
| Specification | Value |
|---|---|

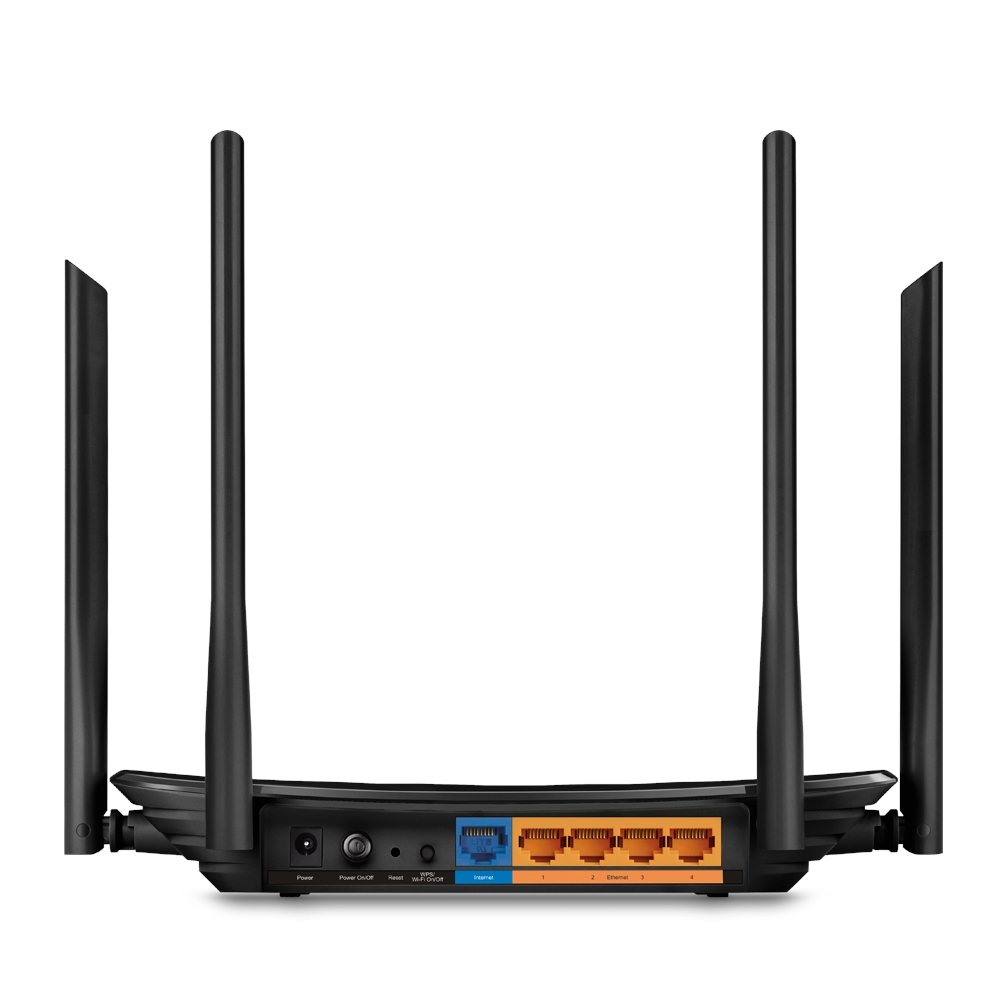

| Ethernet LAN (RJ-45) ports | 4 |
| USB port | No |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| MU-MIMO technology | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Firewall | Yes |
| Firewall security | DoS, SPI Firewall, IP and MAC Address Binding |
| Guest access | Yes |
| DoS attack prevention | Yes |
| Parental control | Yes |
| DMZ support | Yes |
| Network address translation (NAT) | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Routing protocols | IP |
| Supported network protocols | IPv4, IPv6 |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | Black |
| Wall mountable | Yes |
| LED indicators | LAN, Power, Status, WLAN, WPS |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick start guide | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antennas quantity | 5 |
| Transmit power | CE EIRP: <20dBm(2.4GHz); <23dBm(5GHz) |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Output voltage | 12 V |
| Output current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Linux operating systems supported | Yes |
| Mac operating systems supported | macOS |
| Mac compatibility | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 144 mm |
| Height | 35 mm |
| Width | 230 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 350 mm |
| Package depth | 240 mm |
| Package height | 82 mm |
| Number of products included | 1 pc(s) |
