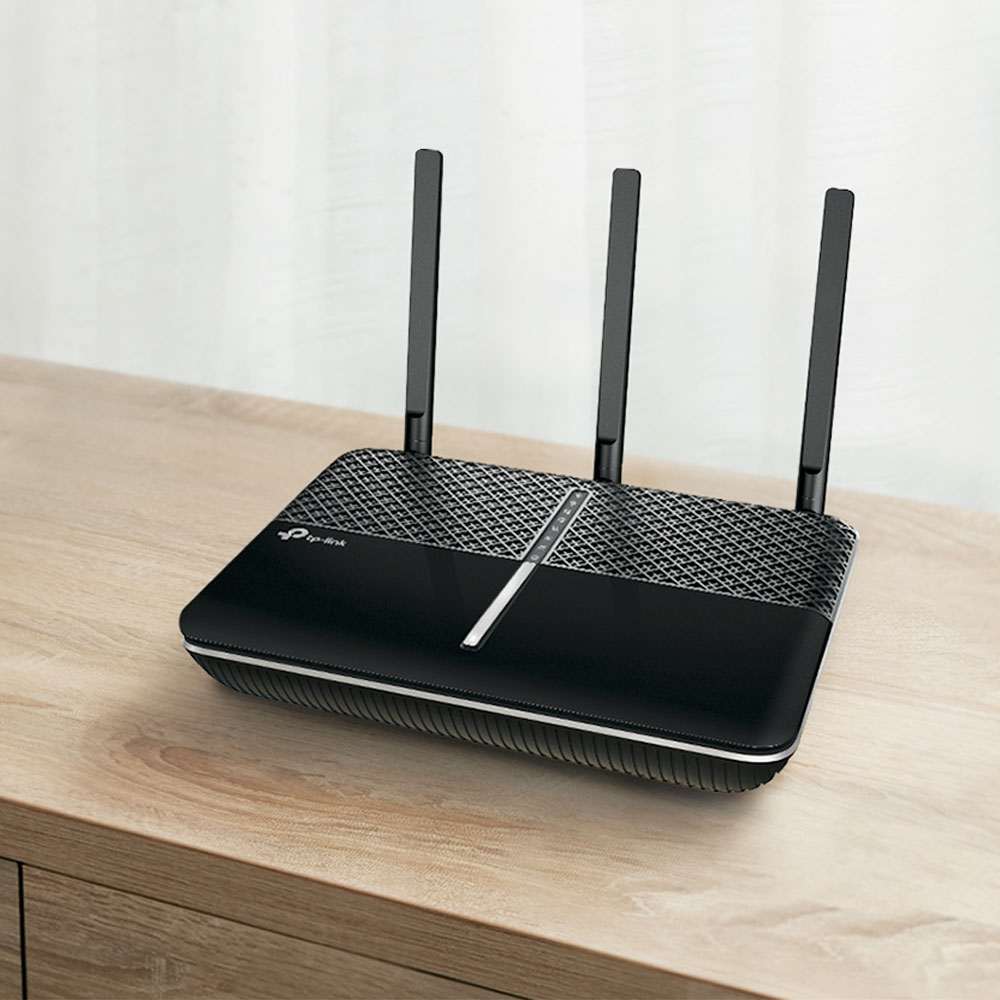

TP-Link Archer C2300 V2

TP-Link Archer C2300 V2

Model Archer C2300 V2Part no. ARCHER C2300 V2EAN 845973080754

73 specifications

SpeedWi-Fi 5 (802.11ac)
TypeTabletop router
ColourBlack
Ethernet WANYes
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
3GNo

See all specifications

Overview

Speed: Wi-Fi 5 (802.11ac)
Type: Tabletop router
Colour: Black
Ethernet WAN: Yes
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
3G: No

Brand: TP-Link
Category: Wireless Router
Model: Archer C2300 V2
Part number: ARCHER C2300 V2
EAN / UPC: 845973080754, 6935364080754, 6935364088828, 6935364097363
Also known as: TP-Link AC2300 Wireless MU-MIMO Gigabit Router

Specifications

73 specifications in 18 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	Yes
SIM card slot	No
3G/4G USB modem compatibility	No
WAN connection type	RJ-45

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1733 Mbit/s
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rate (first band)	600 Mbit/s
WLAN data transfer rate (second band)	1733 Mbit/s

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Port forwarding	Yes
Port triggering	Yes
Dynamic DNS (DDNS)	Yes
Number of guest networks (2.4 GHz)	1
Number of guest networks (5 GHz)	1
VPN support	OpenVPN, PPTP

Mobile network

Specification	Value
3G	No
4G	No

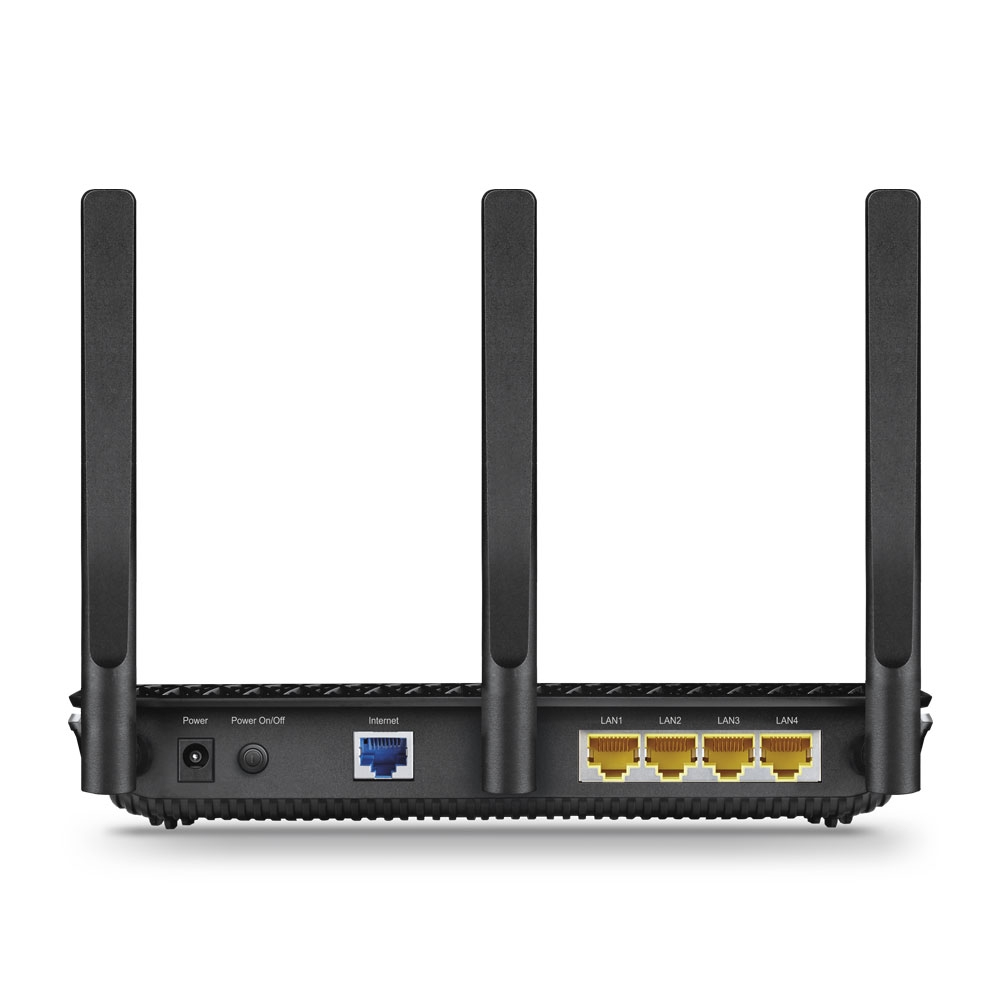

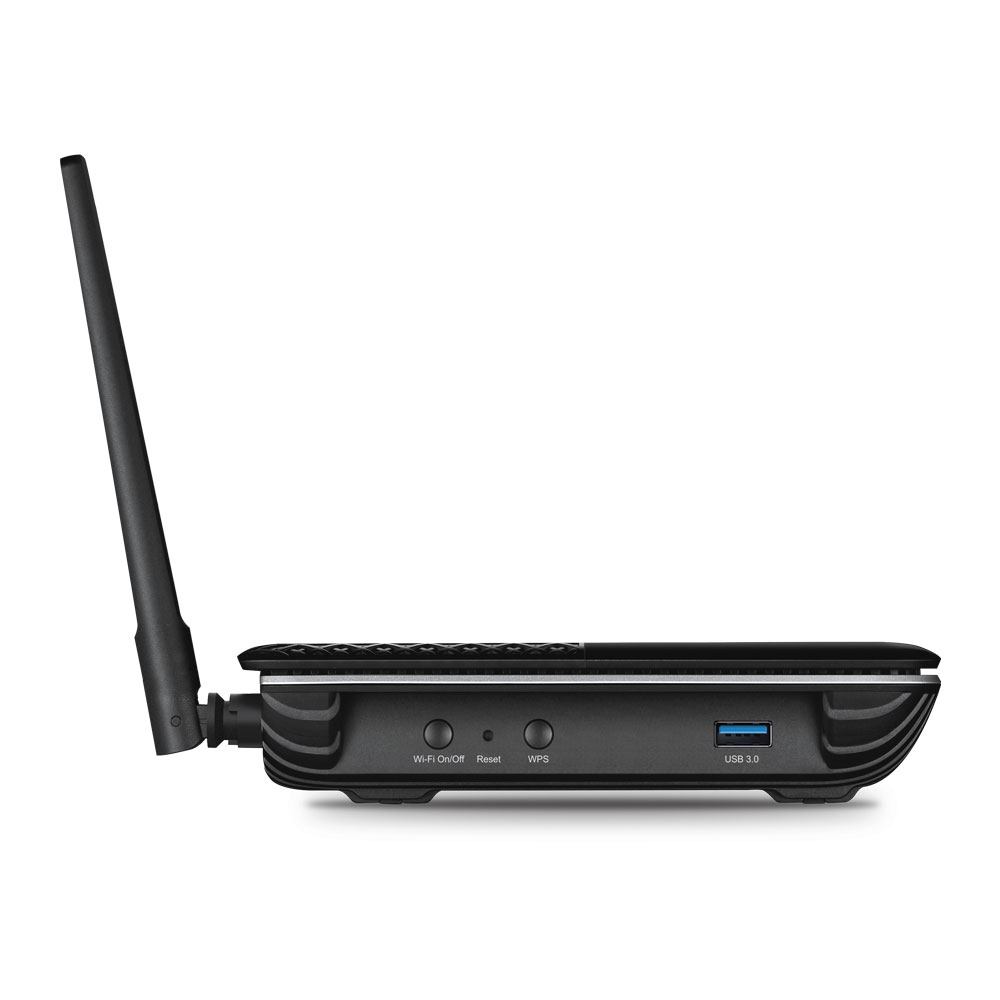

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Memory card slot(s)	No
DC-in jack	Yes

Management features

Specification	Value
Quality of Service (QoS) support	Yes
Reset button	Yes
WPS push button	Yes

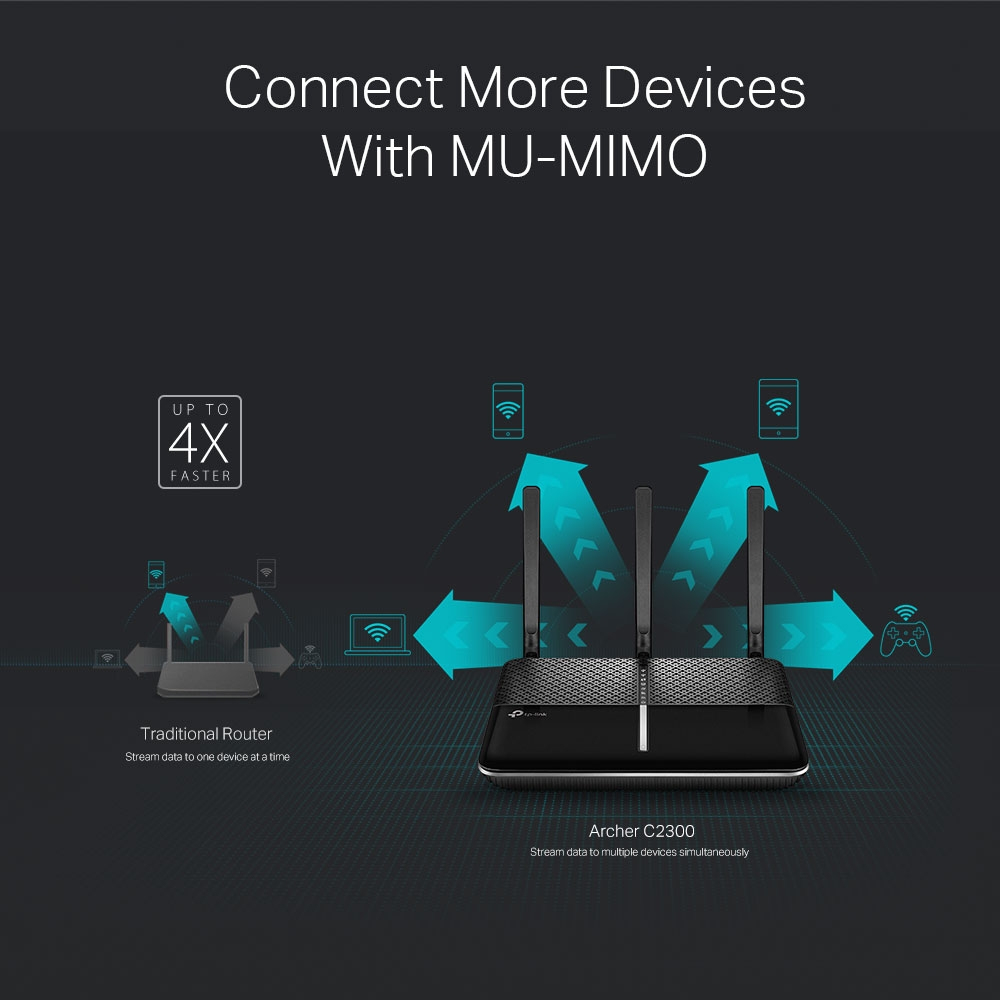

MU-MIMO technology	Yes

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, WEP, WPA, WPA-PSK, WPA2
Firewall	Yes
Access Control List (ACL)	Yes
Firewall security	DoS, SPI Firewall, IP and MAC Address Binding
Guest access	Yes
Port-based Network Access Control (PNAC)	Yes
Parental control	Yes
DMZ support	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes
Supported network protocols	IPv4, IPv6

Design

Specification	Value
Product type	Tabletop router
Product colour	Black
Wall mountable	Yes
LED indicators	LAN, Power, Status, System, WAN, WLAN
On/off switch	Yes

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick installation guide	Yes

Certificates

Specification	Value
Certification	CE, FCC, RoHS

Antenna

Specification	Value
Antenna design	Internal & external
Antennas quantity	4
Receive power	5GHz: 11ac80M MCS9: -64dBm, 11ac80M MCS0: -89dBm 11ac40M MCS9: -68dBm, 11ac40M MCS0: -92dBm 11ac20M MCS8: -72dBm, 11ac20M MCS0: -95dBm 54M: -78dBm, 6M: -96dBm 2.4GHz: 11n40M MCS9: -68dBm, 11n40M MCS0: -93dBm 11n20M MCS8: -73dBm, 11n20M MCS0: -96dBm 54M: -78dBm, 6M: -97dBm
Transmit power	CE: <20dBm(2.4GHz) <23dBm(5.15GHz~5.35GHz) <30dBm(5.47GHz~5.725GHz) FCC: <30dBm(2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz) <24dBm(5.25GHz-5.35GHz & 5.47GHz-5.725 GHz)

Features

Specification	Value
Built-in processor	Yes
Processor cores	2

Power

Specification	Value
Power source type	DC
Output voltage	12 V

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 90 °C

System requirements

Specification	Value
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Linux operating systems supported	Yes
Mac operating systems supported	Yes

Weight & dimensions

Specification	Value
Depth	164 mm
Height	36.8 mm
Width	216 mm

Packaging data

Specification	Value
Package type	Box
