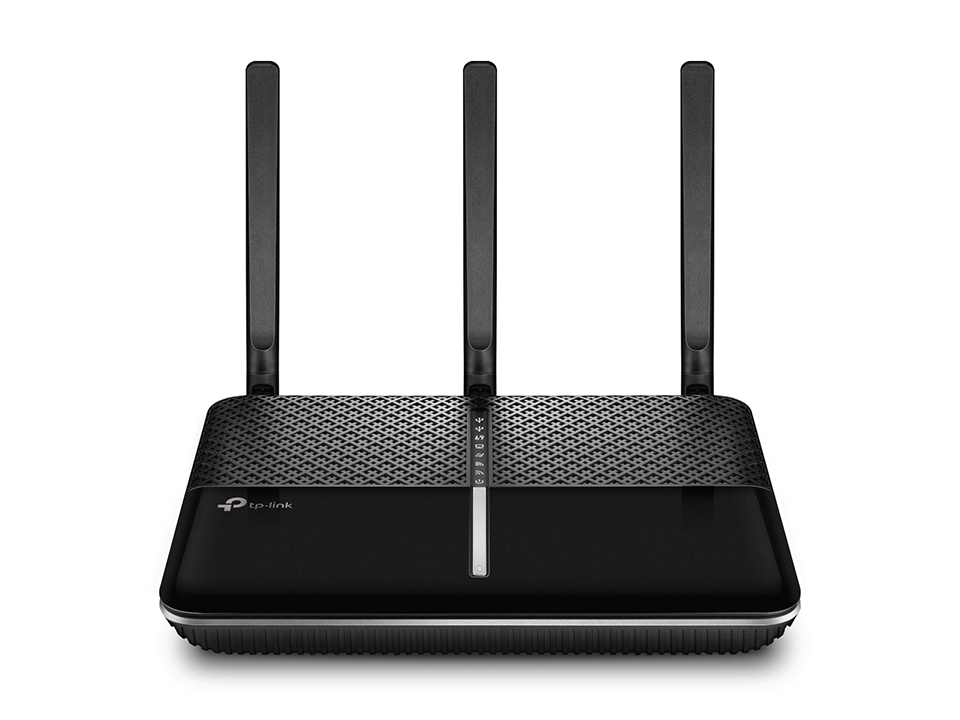

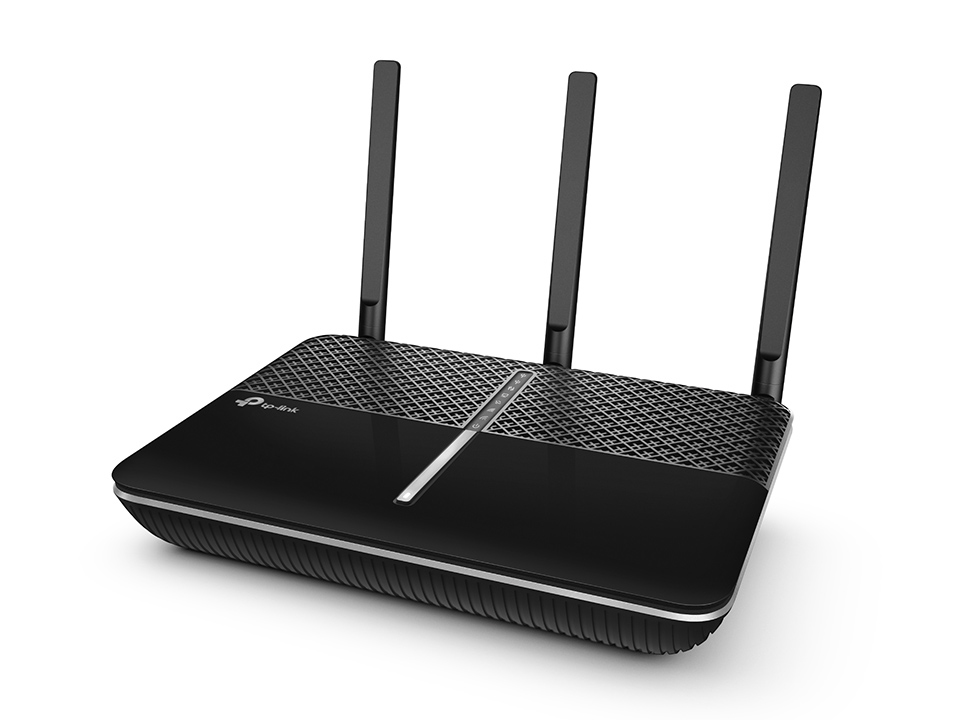

TP-Link Archer C2300

Archer C2300

Model Archer C2300Part no. ARCHER C2300

69 specifications

Memory256 MB
SpeedWi-Fi 5 (802.11ac)
TypeTabletop router
ColourBlack
Ethernet WANYes
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)

See all specifications

Overview

Memory: 256 MB
Speed: Wi-Fi 5 (802.11ac)
Type: Tabletop router
Colour: Black
Ethernet WAN: Yes
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)

Brand: TP-Link
Category: Wireless Router
Model: Archer C2300
Part number: ARCHER C2300
Also known as: TP-Link Archer C2300 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black

Specifications

69 specifications in 19 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	Yes
SIM card slot	No
3G/4G USB modem compatibility	No
WAN connection type	RJ-45

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1733 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rate (first band)	600 Mbit/s
WLAN data transfer rate (second band)	1733 Mbit/s

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Port forwarding	Yes
Dynamic DNS (DDNS)	Yes
Receiver sensitivity	5GHz: 11ac80M MCS11: -58dBm, 11ac80M MCS0: -88dBm 11ac40M MCS11: -61dBm, 11ac40M MCS0: -91dBm 11ac20M MCS11: -63dBm, 11ac20M MCS0: -95dBm 54M: -76dBm, 6M: -95dBm 2.4GHz: 11n40M MCS9: -63dBm, 11n40M MCS0: -89dBm 11n20M MCS8: -67dBm, 11n20M MCS0: -92dBm 54M: -75dBm, 11M : -90dBm, 6M: -93dBm, 1M: -98dB

Mobile network

Specification	Value
3G	No
4G	No

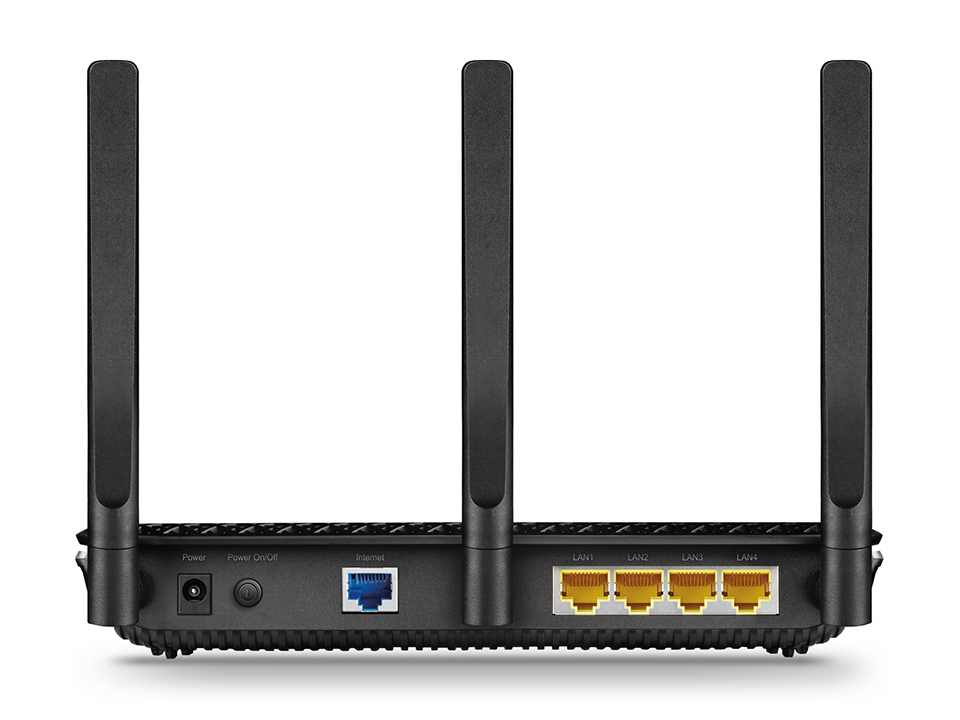

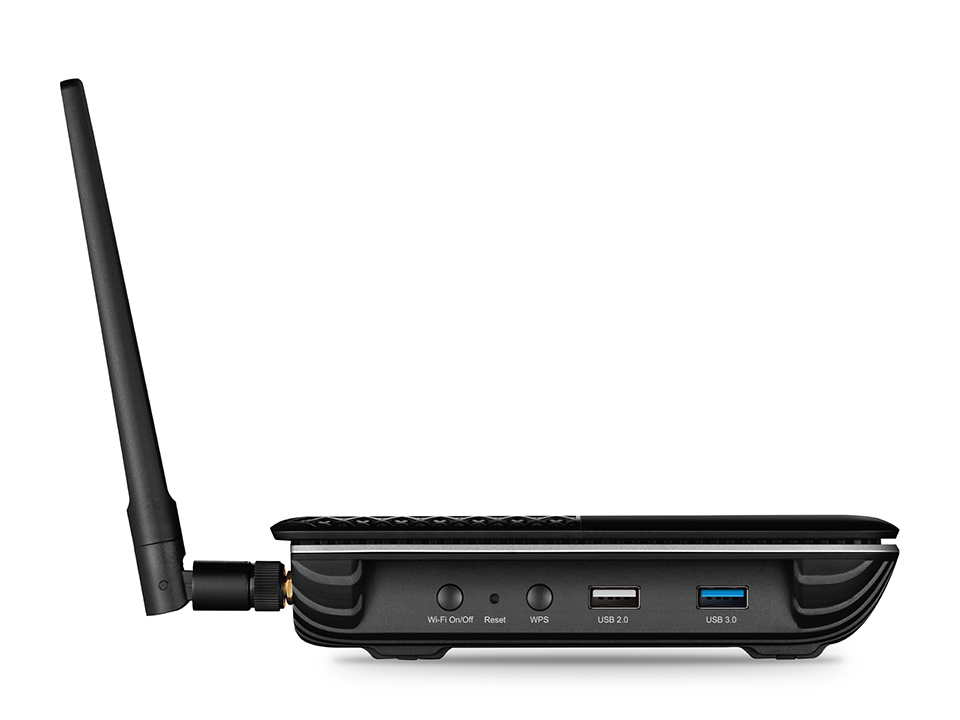

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
DC-in jack	Yes

Management features

Specification	Value
Quality of Service (QoS) support	Yes
Reset button	Yes
WPS push button	Yes

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, WEP, WPA, WPA-PSK, WPA2
Firewall	Yes
Firewall security	DoS, SPI Firewall, IP and MAC Address Binding
Guest access	Yes
Port-based Network Access Control (PNAC)	Yes
DMZ support	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes
Supported network protocols	IPv4, IPv6

Design

Specification	Value
Product type	Tabletop router
Product colour	Black
LED indicators	LAN, Power, Status, System, WAN, WLAN
On/off switch	Yes

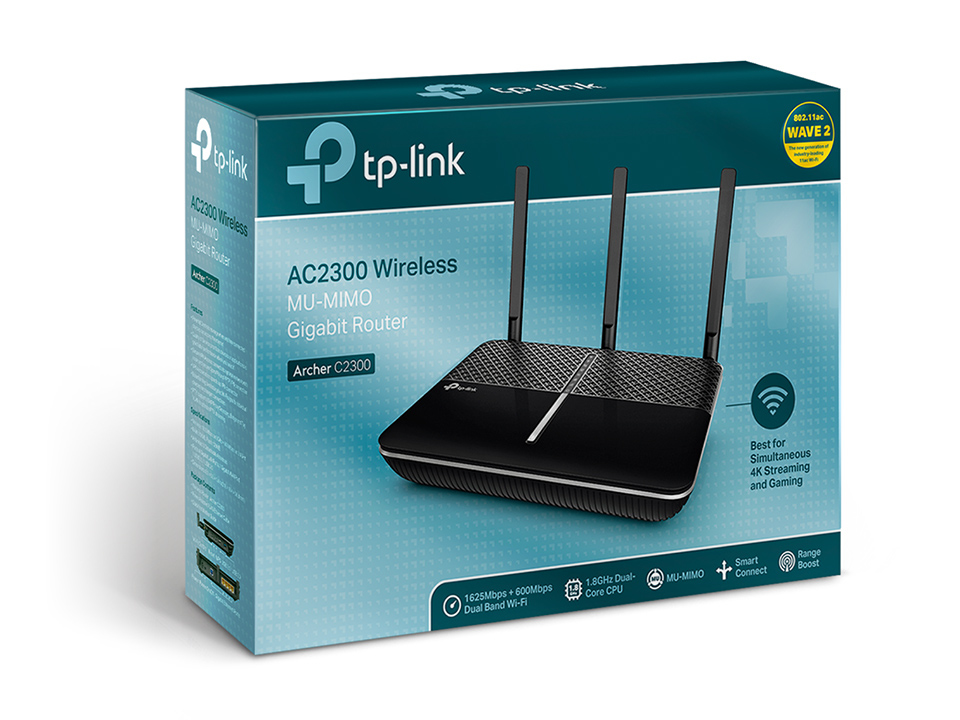

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick installation guide	Yes

Certificates

Specification	Value
Certification	CE, FCC, RoHS

Antenna

Specification	Value
Antenna design	External
Antenna gain level (max)	3 dBi
Detachable antenna(s)	Yes
Transmit power	2.4G≤30dBm, 5G≤30dBm

Features

Specification	Value
Built-in processor	Yes
Processor frequency	1800 MHz
Processor cores	2
Internal memory	256 MB
Flash memory	128 MB

Power

Specification	Value
Power source type	DC
Output voltage	12 V
Output current	2 A

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 90 °C

Weight & dimensions

Specification	Value
Depth	164 mm
Height	36.8 mm
Width	216 mm

Packaging data

Specification	Value
Package type	Box

Logistics data

Specification	Value
Harmonized System (HS) code	85176990

Other features

Specification	Value
Maximum data transfer rate	1 Mbit/s
