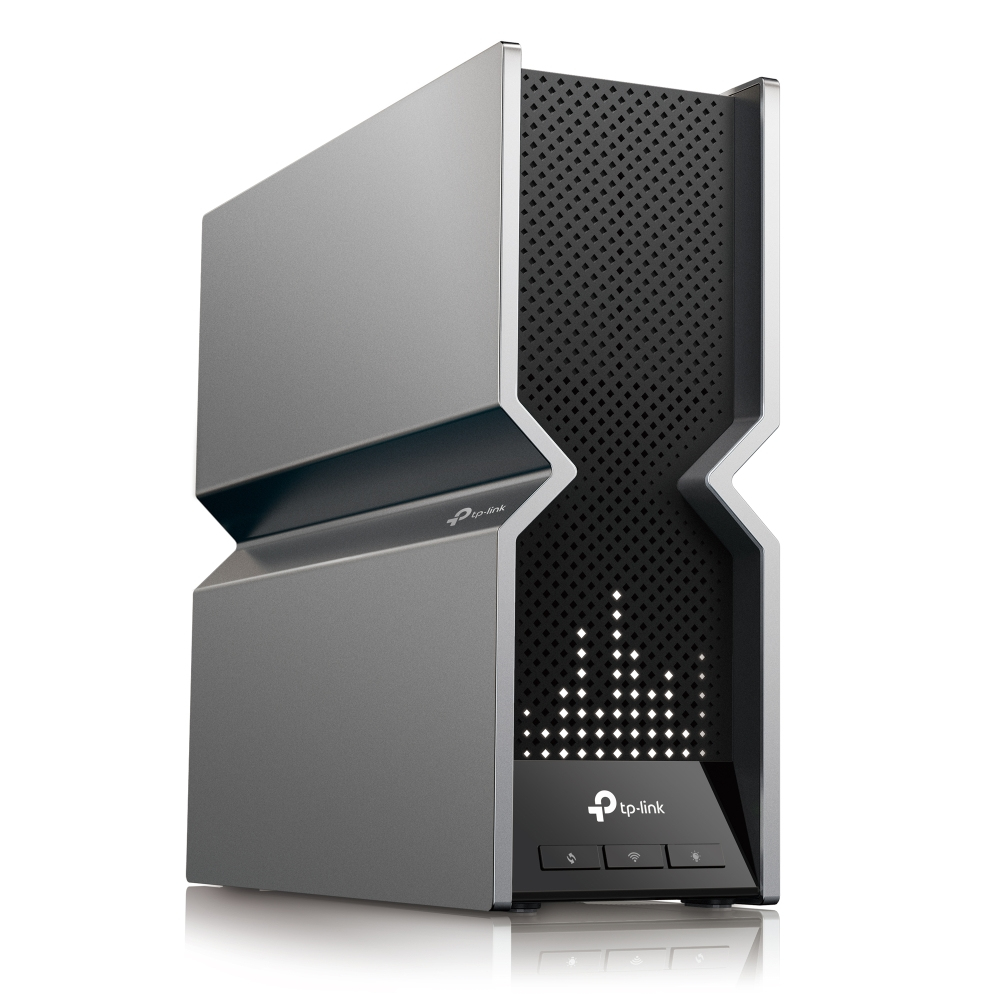

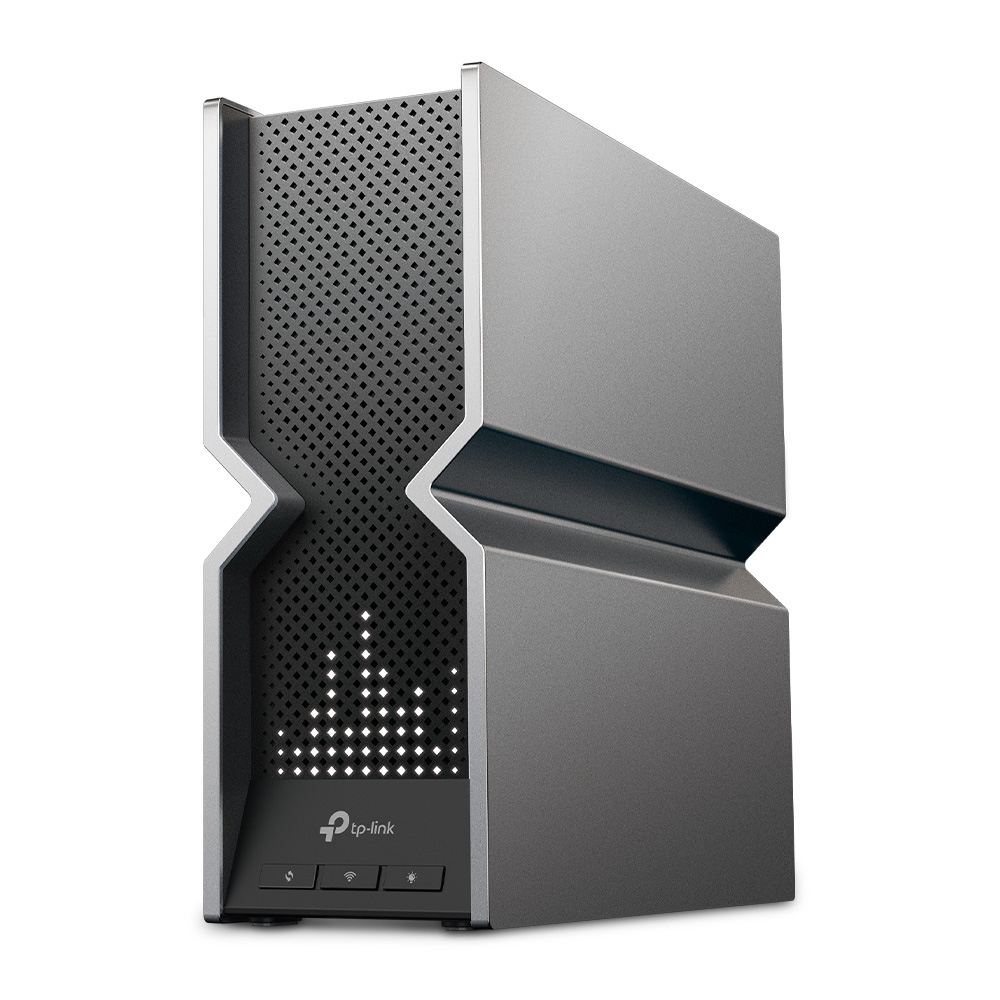

Archer BE800
Model Archer BE800Part no. ARCHER BE800EAN 840030706974
66 specifications
- SpeedWi-Fi 7 (802.11be)
- TypeTabletop router
- ColourBlack, Stainless steel
- Ethernet WANYes
- Ethernet LAN (RJ-45) ports4
- Antenna designInternal
Overview
- Speed
- Wi-Fi 7 (802.11be)
- Type
- Tabletop router
- Colour
- Black, Stainless steel
- Ethernet WAN
- Yes
- Ethernet LAN (RJ-45) ports
- 4
- Antenna design
- Internal
- Brand
- TP-Link
- Category
- Wireless Router
- Model
- Archer BE800
- Part number
- ARCHER BE800
- EAN / UPC
- 840030706974, 840030710032, 4895252502183, 4895252502190
- Also known as
- TP-Link Archer BE19000 Tri-Band Wi-Fi 7 Router
Specifications
66 specifications in 17 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (max) | 19000 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (first band) | 1376 Mbit/s |
| WLAN data transfer rate (second band) | 5760 Mbit/s |
| WLAN data transfer rate (third band) | 11520 Mbit/s |
| Modulation | 4096-QAM |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Multi-Gigabit Ethernet |
| Networking standards | IEEE 802.1x |
| Port forwarding | Yes |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| Number of guest networks (6 GHz) | 1 |
| Built-in FTP server | Yes |
| Media server | Yes |
| VPN server | OpenVPN, PPTP, L2TP, WireGuard |

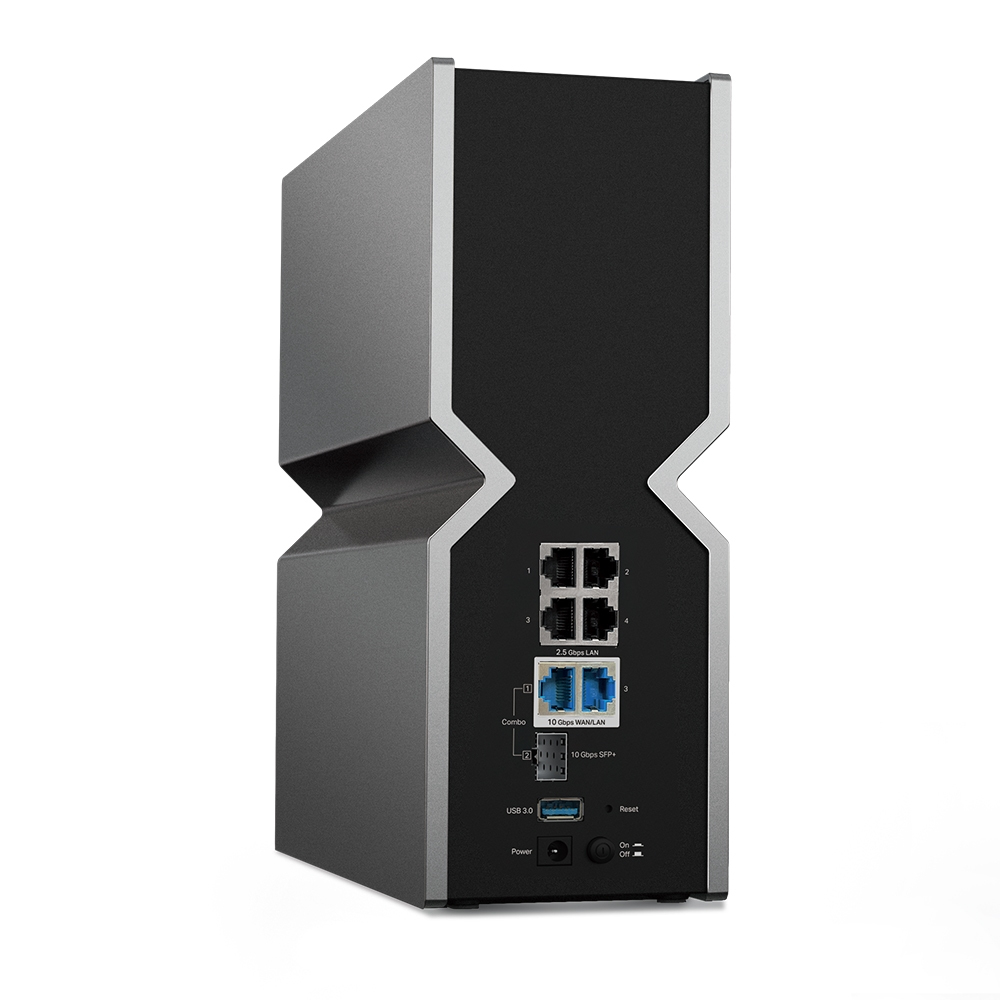

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Intelligent Mesh technology | Yes |
| WPS push button | Yes |
| MU-MIMO technology | Yes |
| Number of data streams | 4x4 |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3 |
| Firewall | Yes |
| Guest access | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| DoS attack prevention | Yes |
| Parental control | Yes |
| Filtering | Yes |
| DMZ support | Yes |
| Network address translation (NAT) | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| Universal Plug and Play (UPnP) | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | Black, Stainless steel |

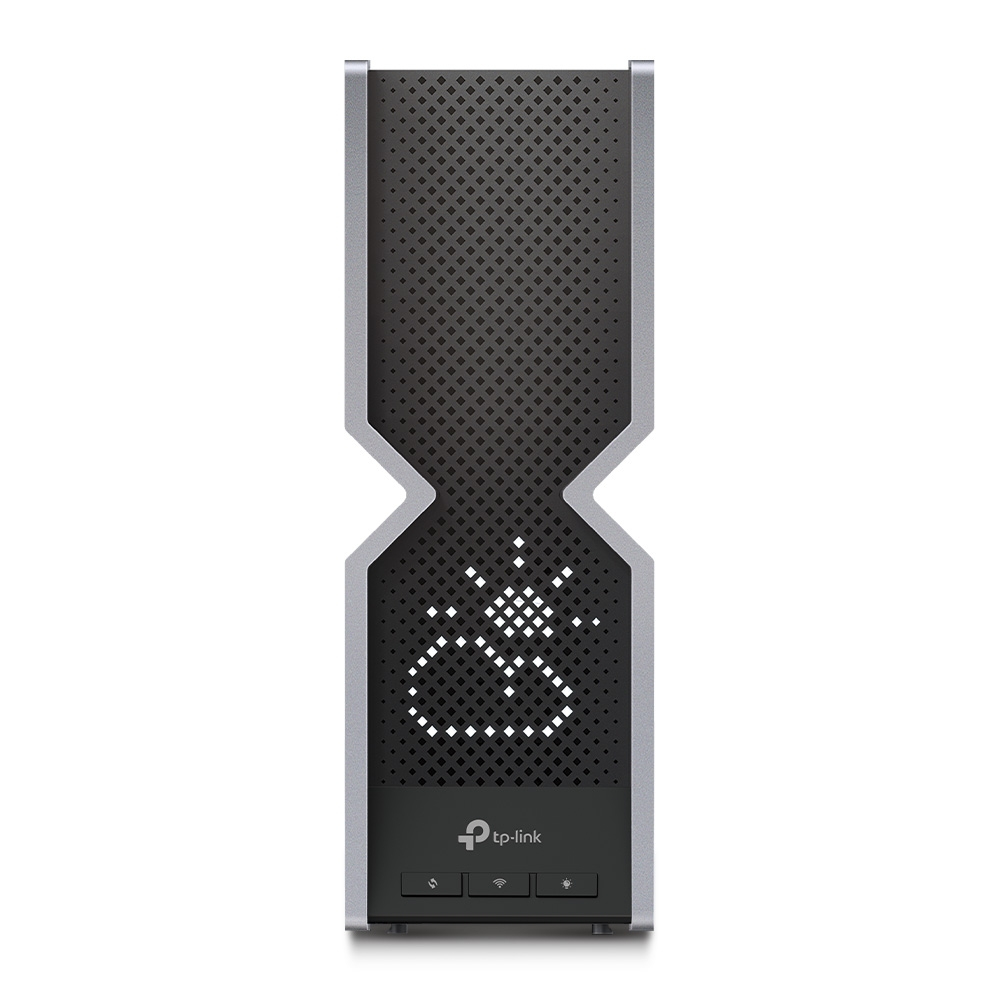

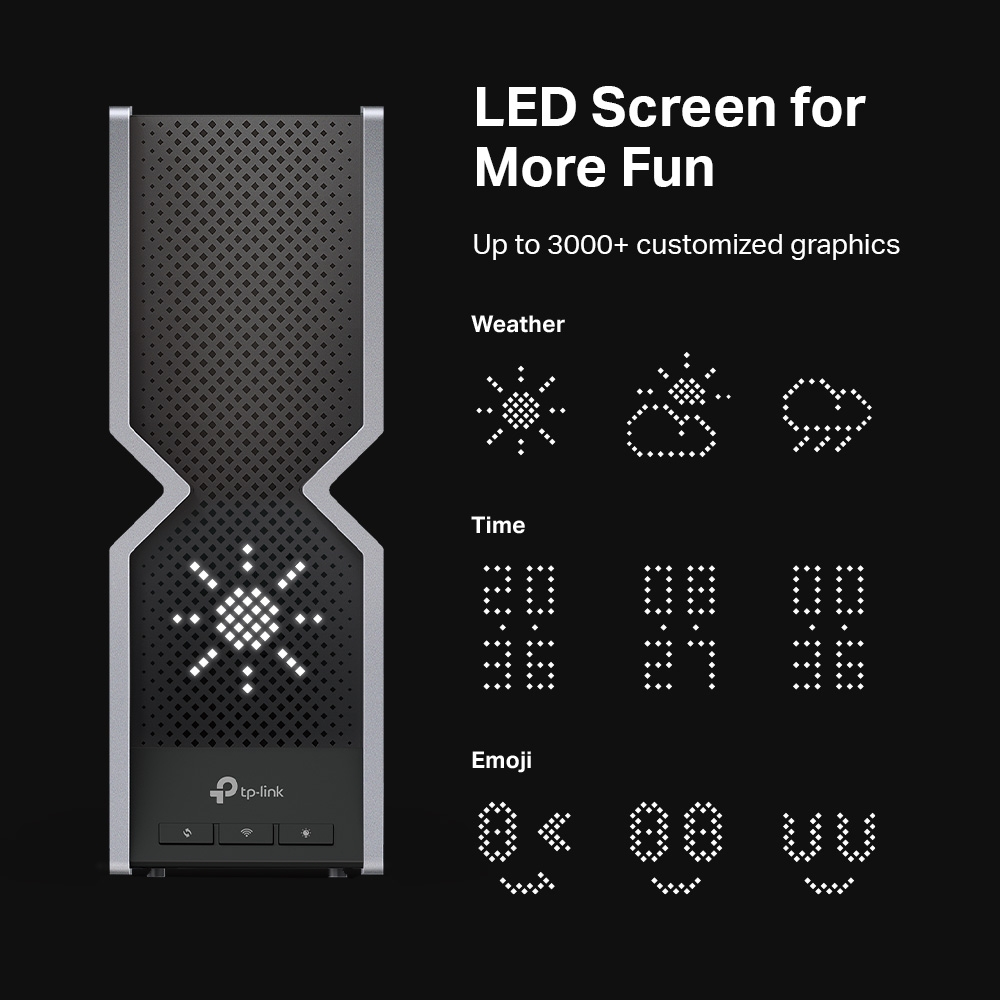

| Built-in display | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, RoHS |
Antenna
| Specification | Value |
|---|---|
| Antenna design | Internal |
| Antennas quantity | 8 |
Features
| Specification | Value |
|---|---|
| Number of simultaneously connected devices (max) | 100 |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Output voltage | 15 V |
| Output current | 5 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
System requirements
| Specification | Value |
|---|---|
| Browser supported | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+ |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 262.5 mm |
| Height | 96 mm |
| Width | 302 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Number of products included | 1 pc(s) |
