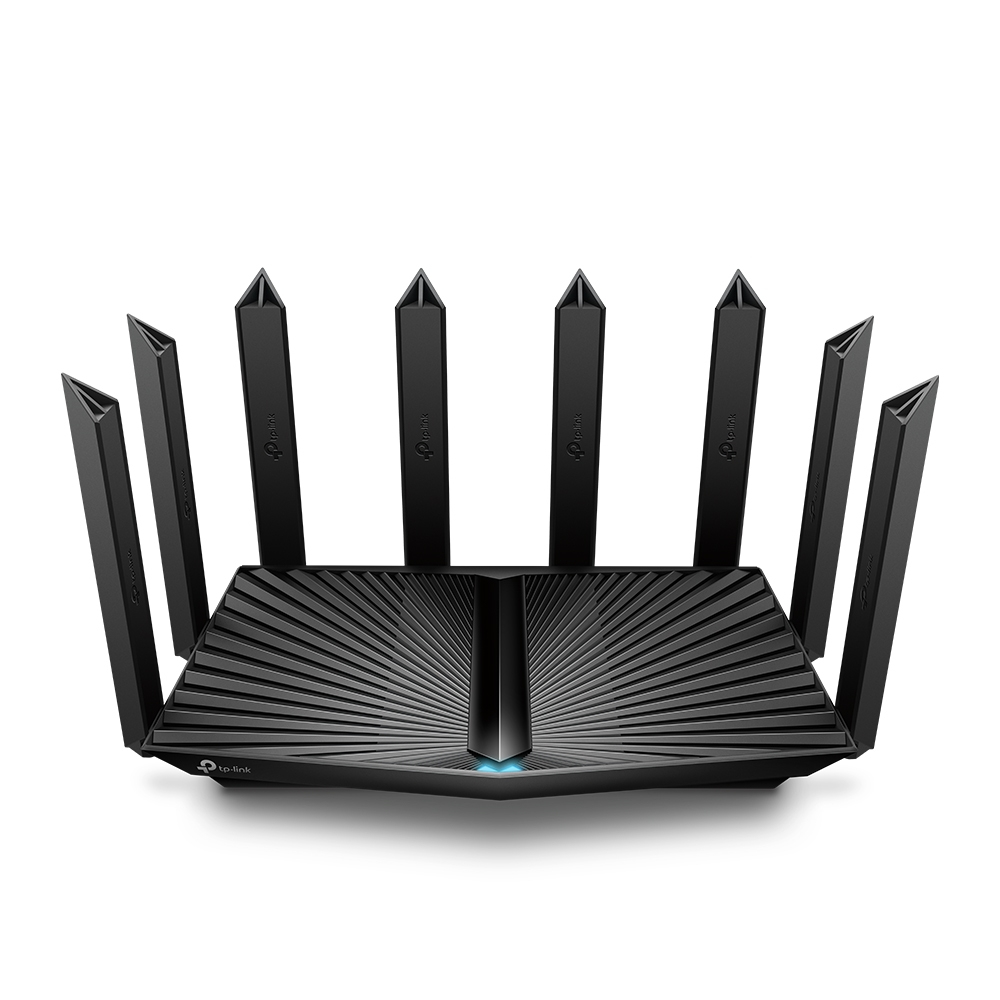

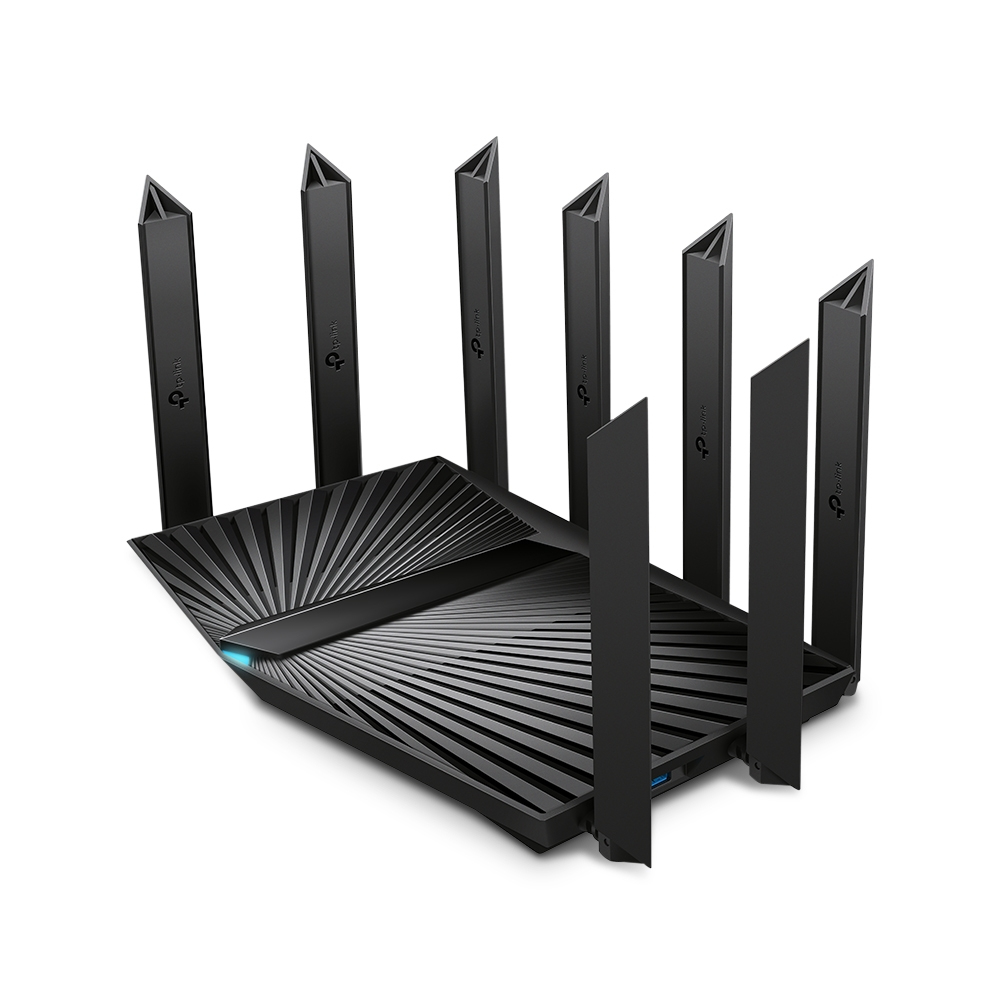

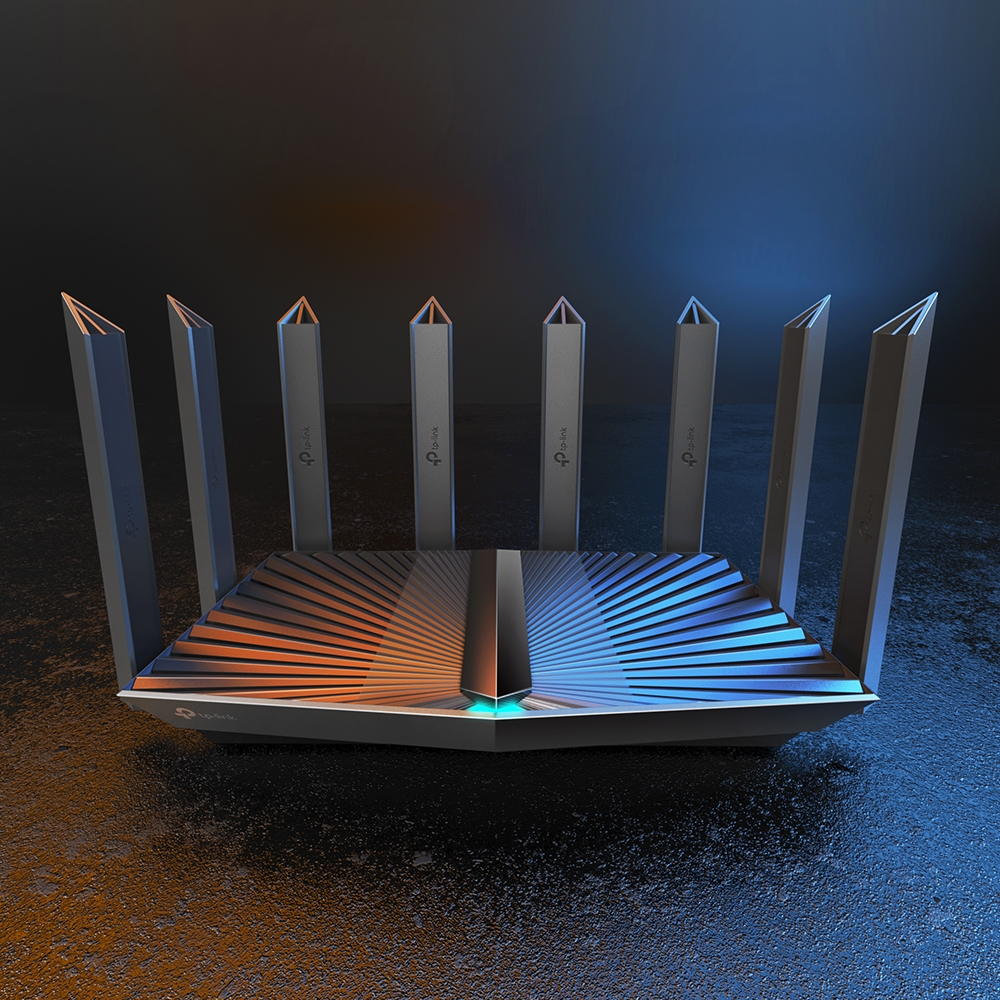

Archer AX95
Model Archer AX95Part no. ARCHER AX95EAN 840030706431
75 specifications
- SpeedWi-Fi 6 (802.11ax)
- TypeTabletop router
- ColourBlack
- Ethernet WANYes
- Ethernet LAN (RJ-45) ports4
- Antenna designExternal
Overview
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Tabletop router
- Colour
- Black
- Ethernet WAN
- Yes
- Ethernet LAN (RJ-45) ports
- 4
- Antenna design
- External
- Brand
- TP-Link
- Category
- Wireless Router
- Model
- Archer AX95
- Part number
- ARCHER AX95
- EAN / UPC
- 840030706431, 4897098686348, 4897098686355
- Also known as
- TP-Link Archer AX7800 Tri-Band 8-Stream Wi-Fi 6 Router
Specifications
75 specifications in 15 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 7800 Mbit/s |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 2402 Mbit/s |
| WLAN data transfer rate (third band) | 4804 Mbit/s |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Port forwarding | Yes |
| Port triggering | Yes |
| Load balancing system | Yes |
| Automatic channel selection | Yes |
| Dynamic DNS (DDNS) | Yes |
| Static route | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 3 |
| Built-in FTP server | Yes |

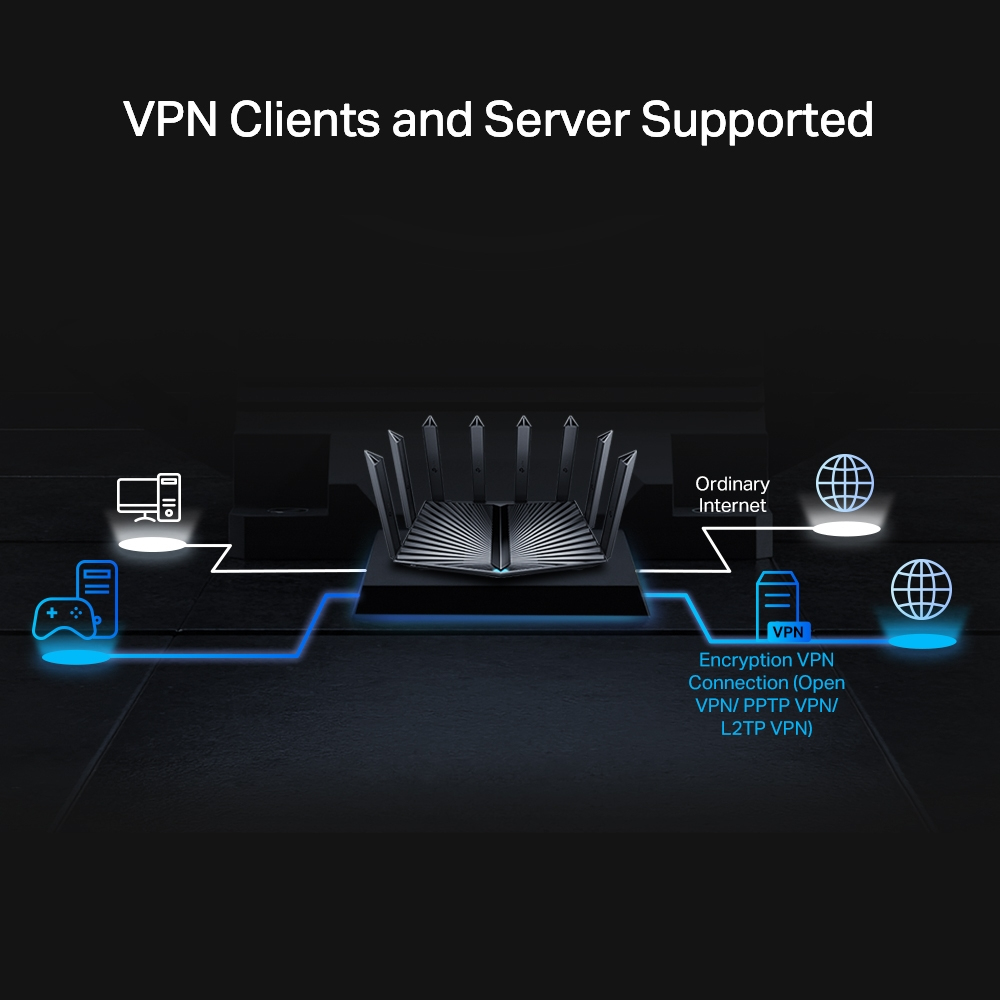

| VPN server | OpenVPN, PPTP, L2TP |

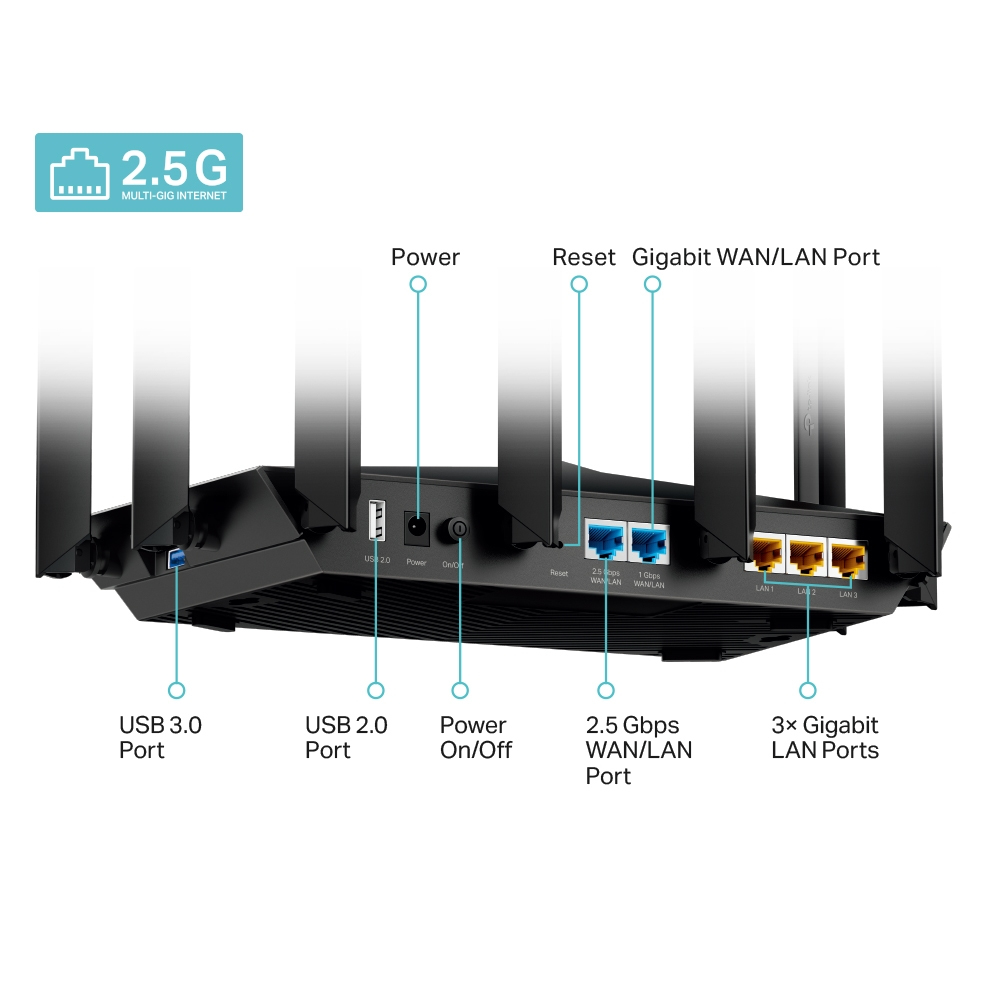

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Bandwidth control | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| MIMO | Yes |
| MU-MIMO technology | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3 |
| Firewall | Yes |
| Access Control List (ACL) | Yes |
| Firewall security | SPI Firewall |
| Guest access | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| Schedule access | Yes |
| DDoS protection | Yes |
| DoS attack prevention | Yes |
| Parental control | Yes |
| Filtering | Yes |
| MAC address filtering | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | Black |
| Indication light | Yes |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Antenna included | Yes |
| Manual | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antennas quantity | 8 |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 1700 MHz |
| Processor cores | 4 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| External power adapter | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 183.9 mm |
| Height | 57.3 mm |
| Width | 277.3 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Number of products included | 1 pc(s) |
