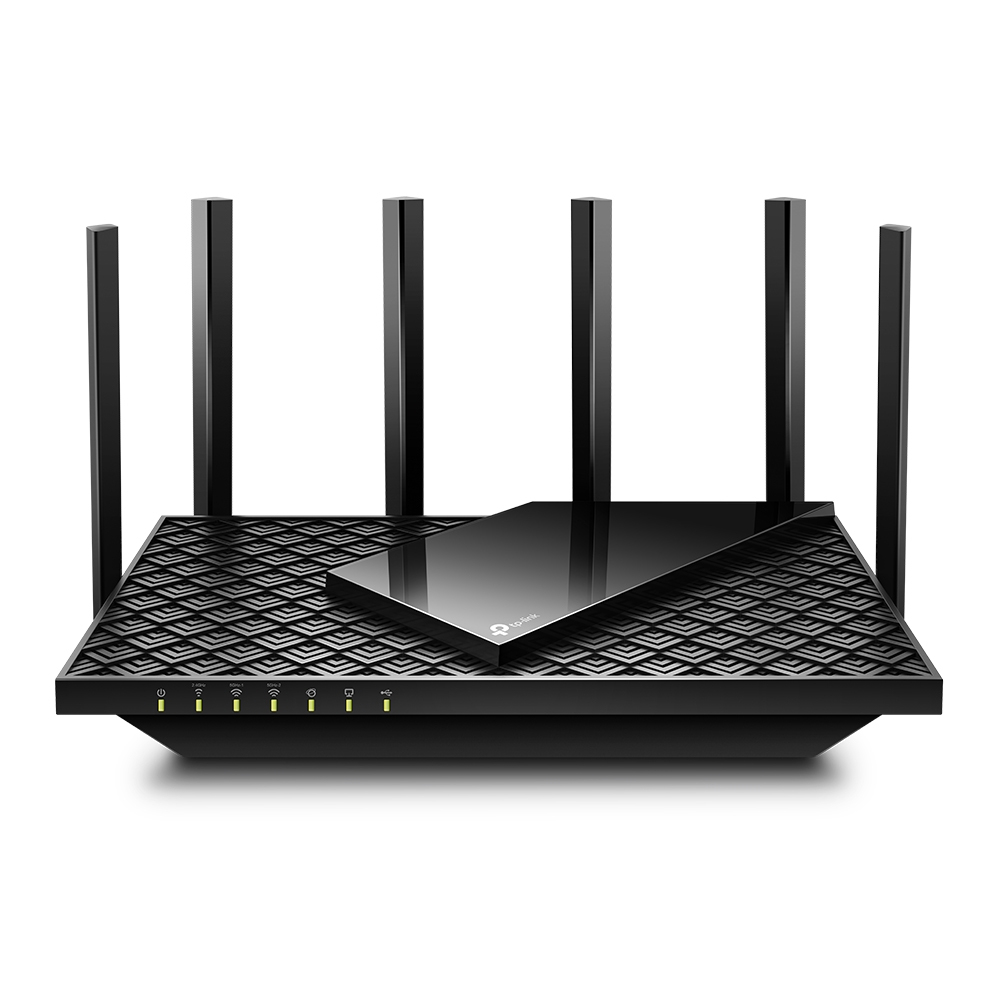

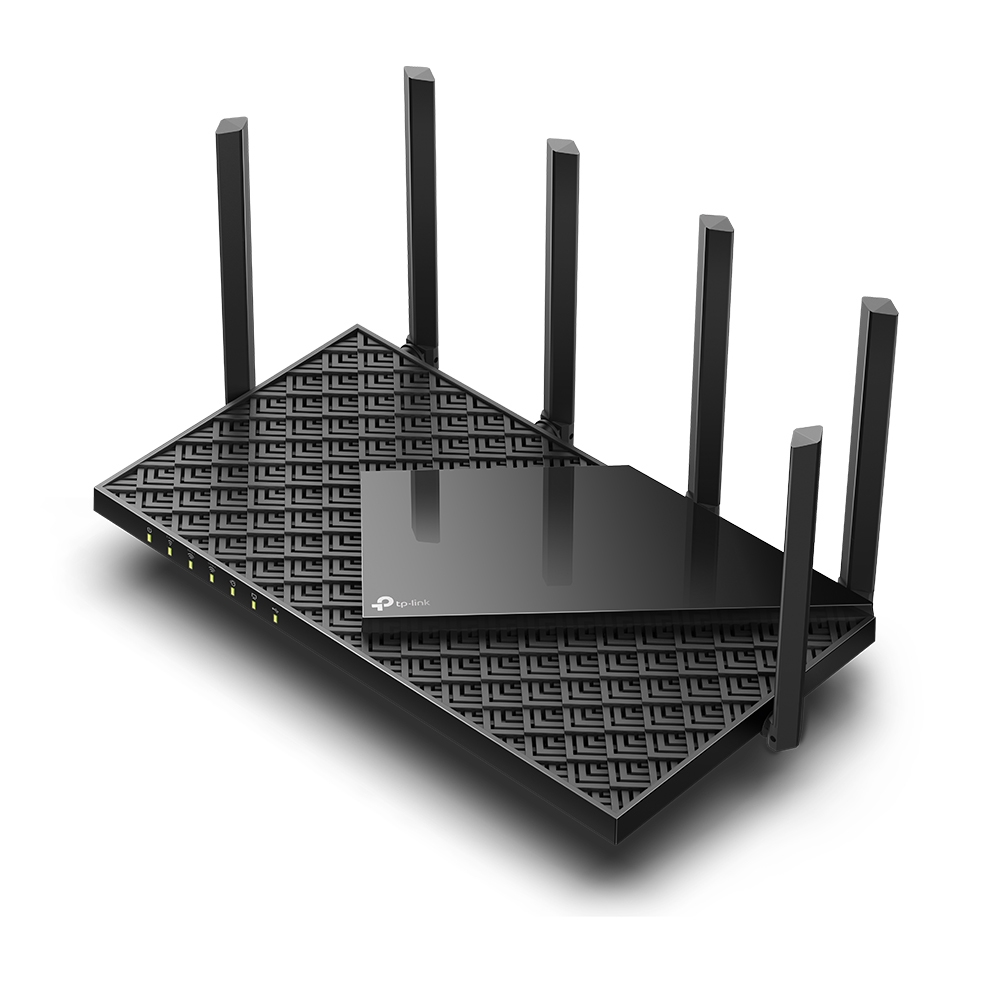

Archer AX75
Model Archer AX75Part no. ARCHER AX75EAN 840030703096
81 specifications
- Memory512 MB
- SpeedWi-Fi 6 (802.11ax)
- TypeTabletop router
- ColourBlack
- Ethernet WANYes
- 3GNo
Overview
- Memory
- 512 MB
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Tabletop router
- Colour
- Black
- Ethernet WAN
- Yes
- 3G
- No
- Brand
- TP-Link
- Category
- Wireless Router
- Model
- Archer AX75
- Part number
- ARCHER AX75
- EAN / UPC
- 840030703096
- Also known as
- TP-Link Archer AX75 wireless router Gigabit Ethernet Tri-band (2.4 GHz / 5 GHz / 5 GHz) Black
Specifications
81 specifications in 17 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 2402 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 2402 Mbit/s |
| WLAN data transfer rate (third band) | 2402 Mbit/s |
| Modulation | OFDM |
| High power | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Port forwarding | Yes |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 2 |
| Support Samba (storage) | Yes |
| Built-in FTP server | Yes |
| Media server | Yes |
| VPN server | OpenVPN, PPTP, L2TP |
| Receiver sensitivity | 2.4 GHz: 11ac VHT20 MCS0 -97dBm, 11ac VHT20 MCS11 -66dBm, 11ac VHT40 MCS0 -95dBm, 11ac VHT40 MCS11 -64dBm, 11ax HE20 MCS0 -95dBm, 11ax HE20 MCS11 -64dBm, 11ax HE40 MCS0:-92dBm, 11ac HE40 MCS11:-62dBm 5 GHz: 11ac VHT20 MCS0-91dBm, 11ac VHT20 MCS11-60dBm, 11ac VHT40 MCS0 -89dBm, 11ac VHT40 MCS11 -57dB |
Mobile network
| Specification | Value |
|---|---|
| 3G | No |
| 4G | No |
| 5G | No |

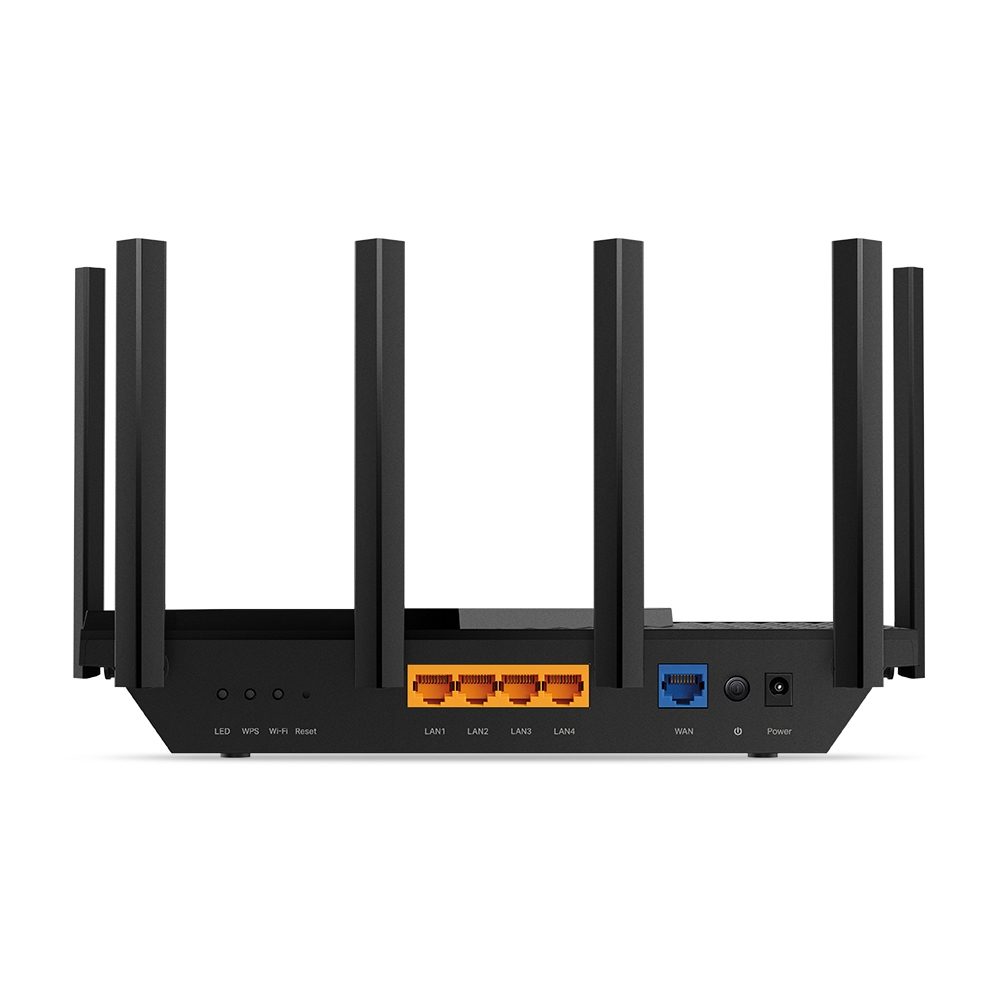

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Bandwidth control | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Intelligent Mesh technology | Yes |
| WPS push button | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA2, WPA2-Enterprise, WPA3 |
| Firewall | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| DoS attack prevention | Yes |
| Parental control | Yes |
| Filtering | Yes |
| DMZ support | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | Black |
| LED indicators | Power, WLAN, WPS |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antennas quantity | 6 |
| Detachable antenna(s) | No |
| Transmit power | <24dBm (5.25GHz~5.35GHz&5.47GHz~5.725GHz), <28dBm (5.15GHz~5.25GHz&5.725GHz~5.825GHz), <29dBm (2.4GHz) |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Broadcom |
| Processor frequency | 1700 MHz |
| Processor cores | 4 |
| Internal memory | 512 MB |
| Works with Amazon Alexa | Yes |
| 4K streaming | Yes |
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Output voltage | 12 V |
| Output current | 2.5 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
System requirements
| Specification | Value |
|---|---|
| Browser supported | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 147.2 mm |
| Height | 49.2 mm |
| Width | 272.5 mm |
