Archer AX55 Pro
Model Archer AX55 ProPart no. ARCHER AX55 PROEAN 840030706806
65 specifications
- SpeedWi-Fi 6 (802.11ax)
- TypeDesktop/pole router
- ColourBlack
- Ethernet WANYes
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
- Ethernet LAN (RJ-45) ports5
Overview
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Desktop/pole router
- Colour
- Black
- Ethernet WAN
- Yes
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Ethernet LAN (RJ-45) ports
- 5
- Brand
- TP-Link
- Category
- Wireless Router
- Model
- Archer AX55 Pro
- Part number
- ARCHER AX55 PRO
- EAN / UPC
- 840030706806, 4897098686805, 4897098686812
- Also known as
- TP-Link Archer AX3000 Multi-Gigabit Wi-Fi 6 Router with 2.5G Port
Specifications
65 specifications in 15 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 2402 Mbit/s |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 2402 Mbit/s |
| WLAN data transfer rate (second band) | 574 Mbit/s |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Port forwarding | Yes |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| Support Samba (storage) | Yes |
| USB sharing | Yes |
| Built-in FTP server | Yes |
| Media server | Yes |
| VPN server | OpenVPN, PPTP, L2TP |
| VPN support | OpenVPN, PPTP, L2TP |

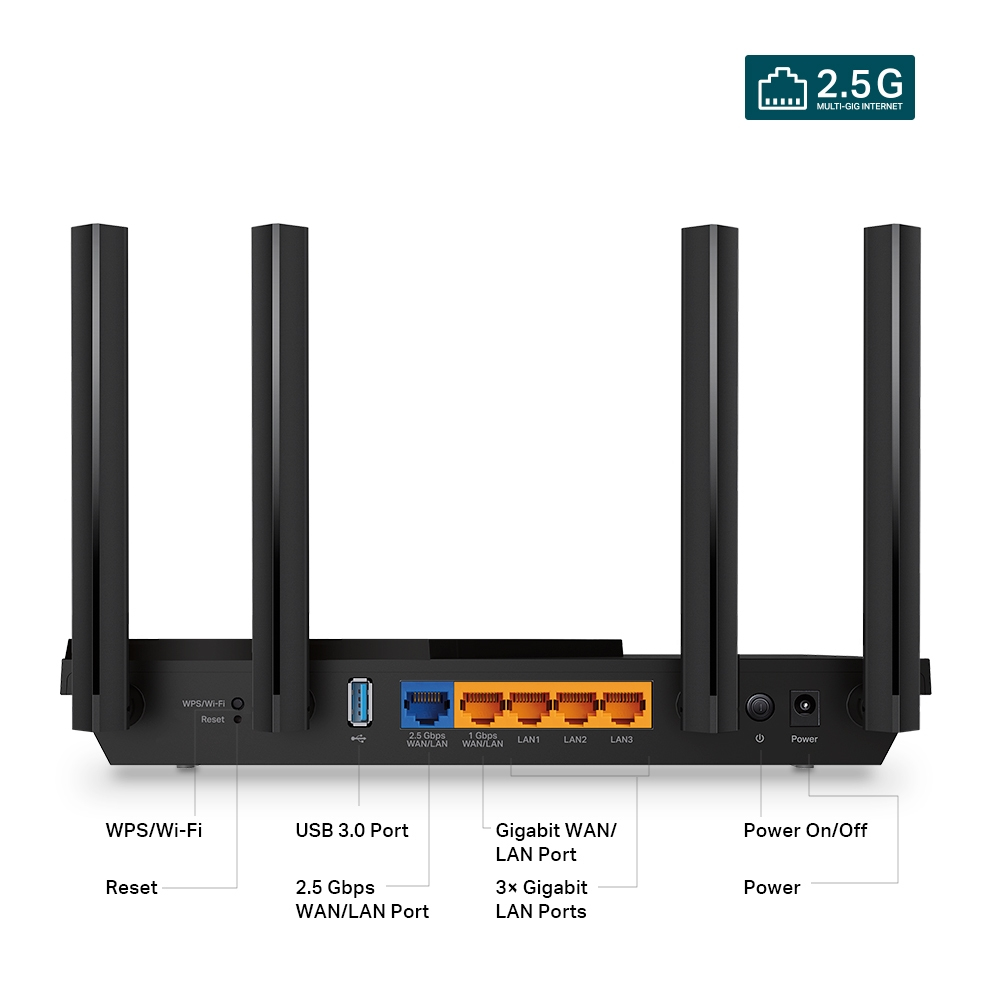

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
Management features
| Specification | Value |
|---|---|
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| WPS push button | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA2, WPA3 |
| Firewall | Yes |
| Firewall security | SPI Firewall |
| Guest access | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| DoS attack prevention | Yes |
| Parental control | Yes |
| DMZ support | Yes |
| Network address translation (NAT) | Yes |
| NAT functionality | • Port Forwarding • Port Triggering • DMZ • UPnP |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Desktop/pole router |
| Product colour | Black |
| Indication light | Yes |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Antenna included | Yes |
| Quick installation guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, RoHS |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antenna type | 2x2 |
| Antennas quantity | 4 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 134.5 mm |
| Height | 41 mm |
| Width | 261.1 mm |
Packaging data
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
