TP-Link Archer AX53

Archer AX53

Model Archer AX53Part no. ARCHER AX53EAN 840030703089

69 specifications

SpeedWi-Fi 6 (802.11ax)
TypeTabletop router
ColourBlack
Ethernet WANYes
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Ethernet LAN (RJ-45) ports4

See all specifications

Overview

Speed: Wi-Fi 6 (802.11ax)
Type: Tabletop router
Colour: Black
Ethernet WAN: Yes
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Ethernet LAN (RJ-45) ports: 4

Brand: TP-Link
Category: Wireless Router
Model: Archer AX53
Part number: ARCHER AX53
EAN / UPC: 840030703089, 840460603218, 4897098683088
Also known as: TP-Link Archer AX53 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black

Specifications

69 specifications in 18 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	No
WAN connection type	RJ-45

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)

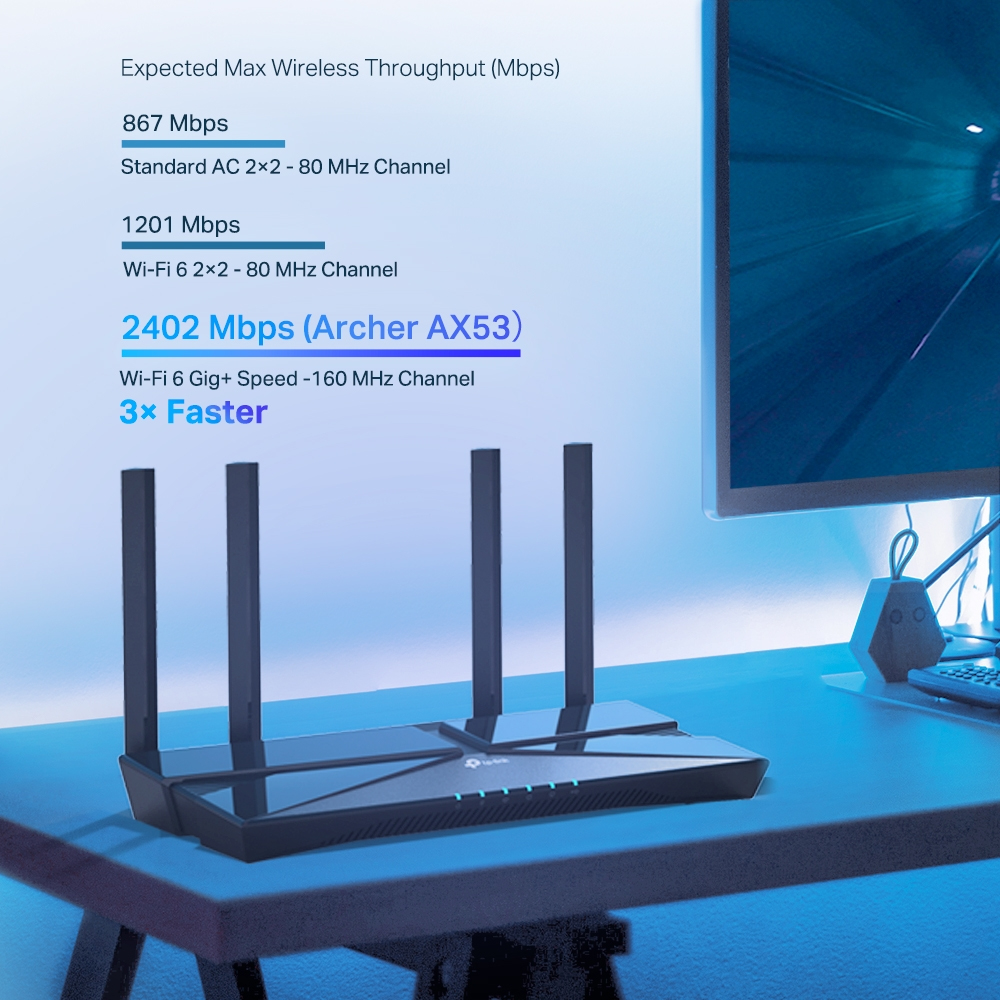

WLAN data transfer rate (max)	2402 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band)	574 Mbit/s
WLAN data transfer rate (second band)	2402 Mbit/s

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Port forwarding	Yes
Port triggering	Yes
Dynamic DNS (DDNS)	Yes
Number of guest networks (2.4 GHz)	1
Number of guest networks (5 GHz)	1
VPN server	OpenVPN, PPTP VPN

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	No

Management features

Specification	Value
Quality of Service (QoS) support	Yes
Reset button	Yes
Intelligent Mesh technology	Yes
WPS push button	Yes

Security

Specification	Value
Security algorithms	WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3
Firewall	Yes
DoS attack prevention	Yes
Parental control	Yes
Filtering	Yes
DMZ support	Yes
Network address translation (NAT)	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes
Supported network protocols	IPv4, IPv6

Design

Specification	Value
Product type	Tabletop router
Product colour	Black
On/off switch	Yes

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick installation guide	Yes

Certificates

Specification	Value
Compliance certificates	CE, RoHS

Sustainability

Specification	Value
Sustainability compliance	Yes

Antenna

Specification	Value
Antenna design	External
Antennas quantity	4

Features

Specification	Value
Built-in processor	Yes
Processor cores	2
Works with Amazon Alexa	Yes
Firmware upgradeable	Yes

Power

Specification	Value
Power source type	DC
Output voltage	12 V
Output current	2 A
External power adapter	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C

System requirements

Specification	Value
Browser supported	Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+

Weight & dimensions

Specification	Value
Depth	135 mm
Height	41.6 mm
Width	260.2 mm

Packaging data

Specification	Value
Package width	330 mm
Package depth	240 mm
Package height	73 mm
Package weight	840 g
Number of products included	1 pc(s)
