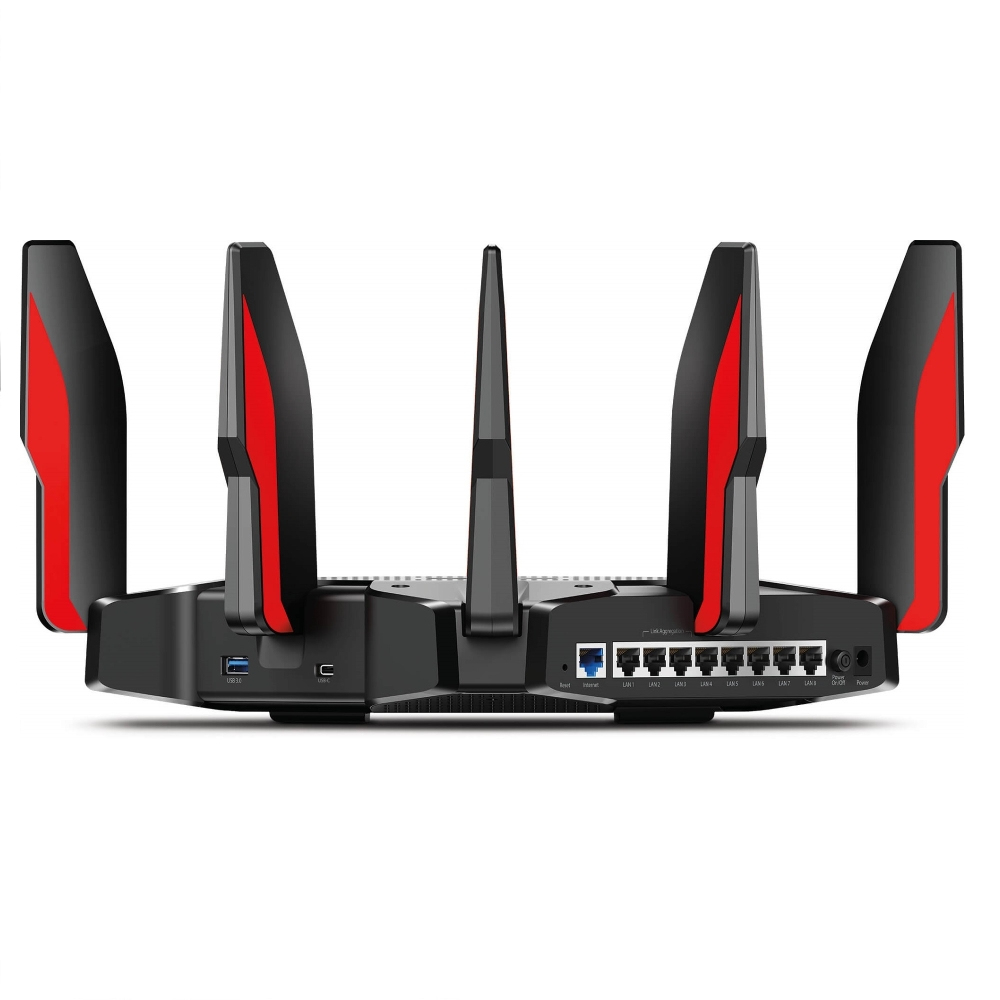

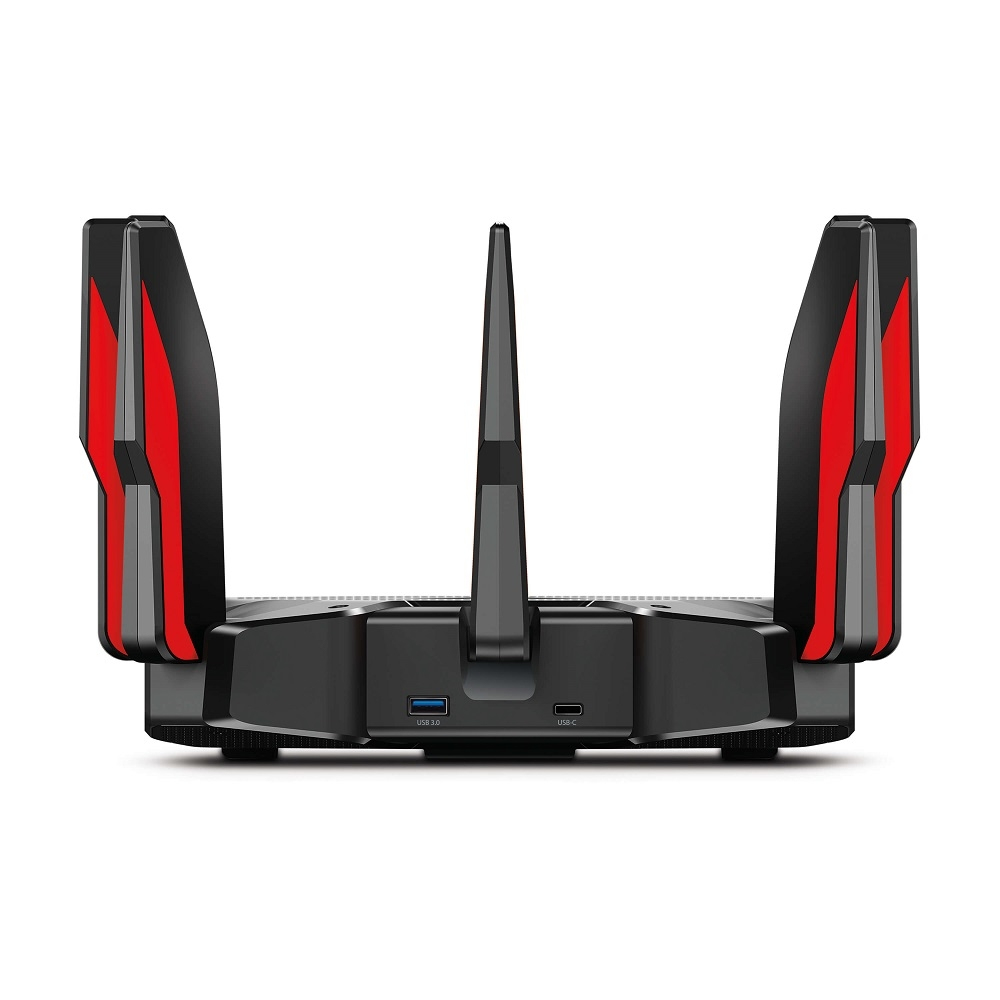

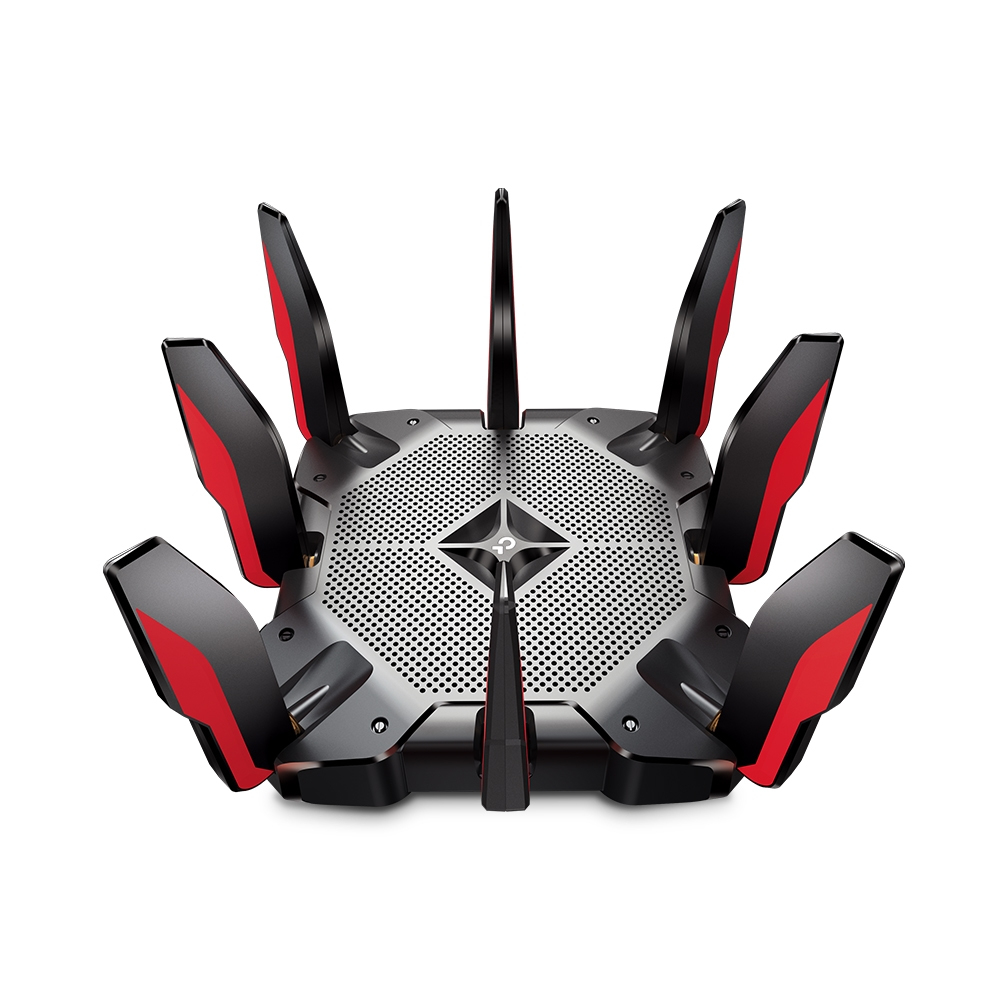

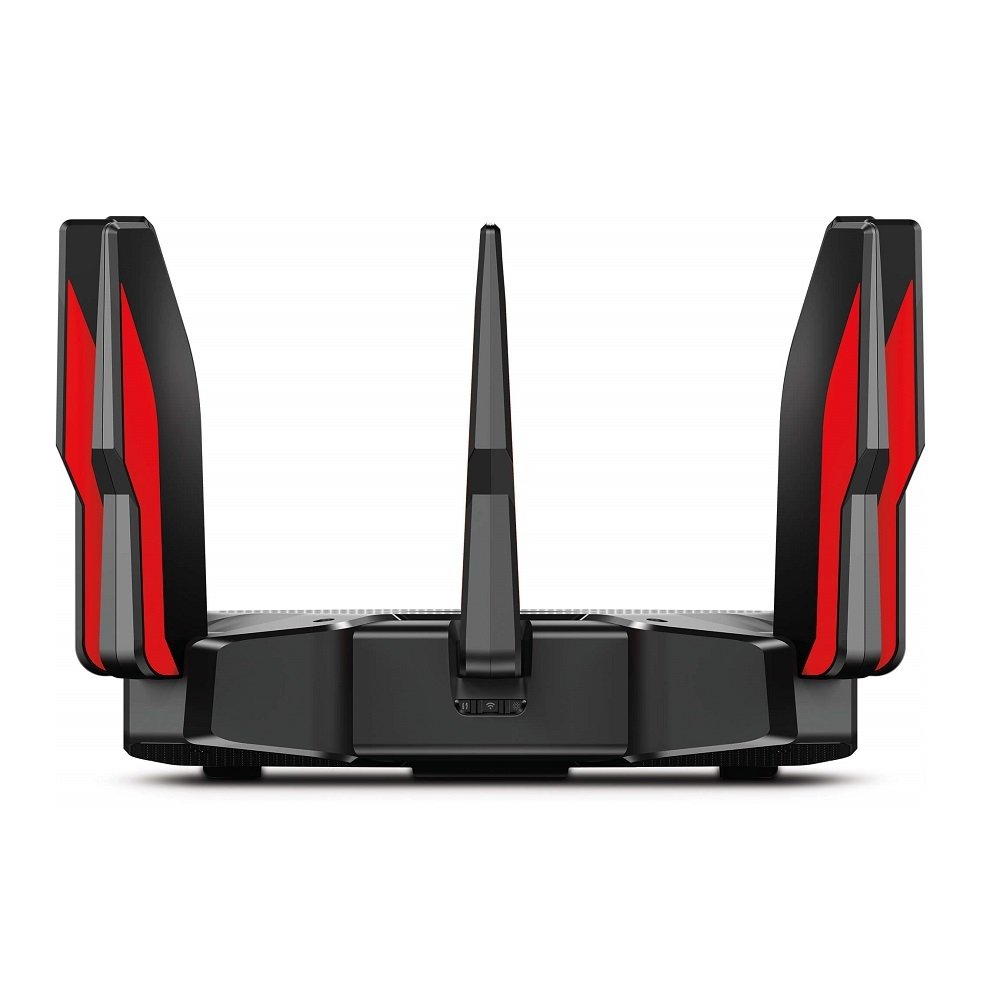

Archer AX10000
Model Archer AX10000Part no. ARCHER AX10000EAN 840030707537
86 specifications
- SpeedWi-Fi 6 (802.11ax)
- TypeTabletop router
- ColourBlack, Red
- Ethernet WANYes
- 3GNo
- Ethernet LAN (RJ-45) ports8
Overview
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Tabletop router
- Colour
- Black, Red
- Ethernet WAN
- Yes
- 3G
- No
- Ethernet LAN (RJ-45) ports
- 8
- Brand
- TP-Link
- Category
- Wireless Router
- Model
- Archer AX10000
- Part number
- ARCHER AX10000
- EAN / UPC
- 840030707537
- Also known as
- TP-Link Archer AX10000 wireless router Gigabit Ethernet Tri-band (2.4 GHz / 5 GHz / 6 GHz) Black, Red
Specifications
86 specifications in 17 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 4804 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 918 Mbit/s |
| WLAN data transfer rate (second band) | 4804 Mbit/s |
| WLAN data transfer rate (third band) | 4804 Mbit/s |
| Modulation | OFDM |
| High power | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Port forwarding | Yes |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| Support Samba (storage) | Yes |
| Built-in FTP server | Yes |
| Media server | Yes |
| VPN server | OpenVPN, PPTP |
Mobile network
| Specification | Value |
|---|---|
| 3G | No |
| 4G | No |
| 5G | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 8 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Bandwidth control | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Intelligent Mesh technology | Yes |
| WPS push button | Yes |
| MIMO | Yes |
| MU-MIMO technology | Yes |
| Number of data streams | 4x4 |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA2, WPA2-Enterprise, WPA3 |
| Firewall | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| Schedule access | Yes |
| Parental control | Yes |
| Filtering | Yes |
| URL filtering | Yes |
| System event log | Yes |
| DMZ support | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | Black, Red |
| LED indicators | Power, Status |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antennas quantity | 8 |
| Detachable antenna(s) | Yes |
| Transmit power | <30dBm(2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz), <24dBm(5.25GHz-5.35GHz & 5.47GHz-5.725 GHz) |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 1800 MHz |
| Processor cores | 4 |
| Works with Amazon Alexa | Yes |
| 4K streaming | Yes |
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Output voltage | 12 V |
| Output current | 5 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
System requirements
| Specification | Value |
|---|---|
| Browser supported | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 288 mm |
| Height | 184 mm |
| Width | 288 mm |
