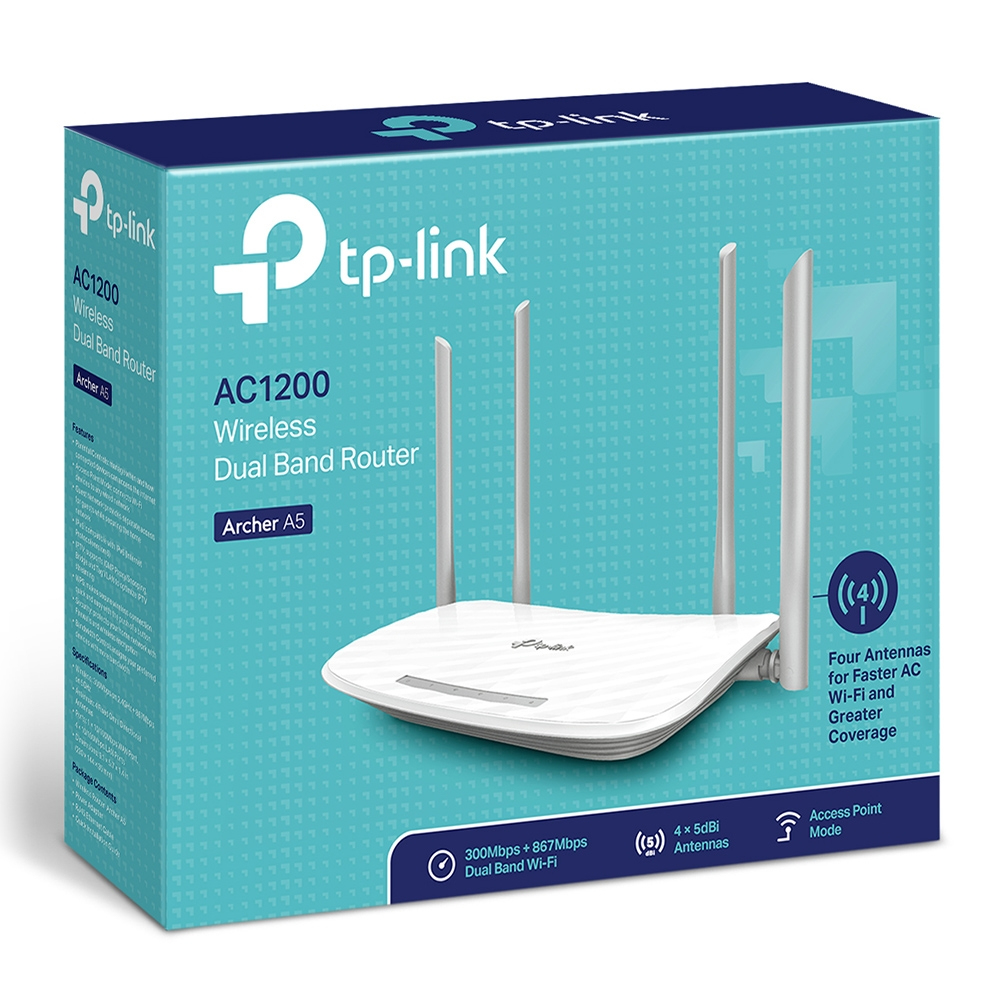

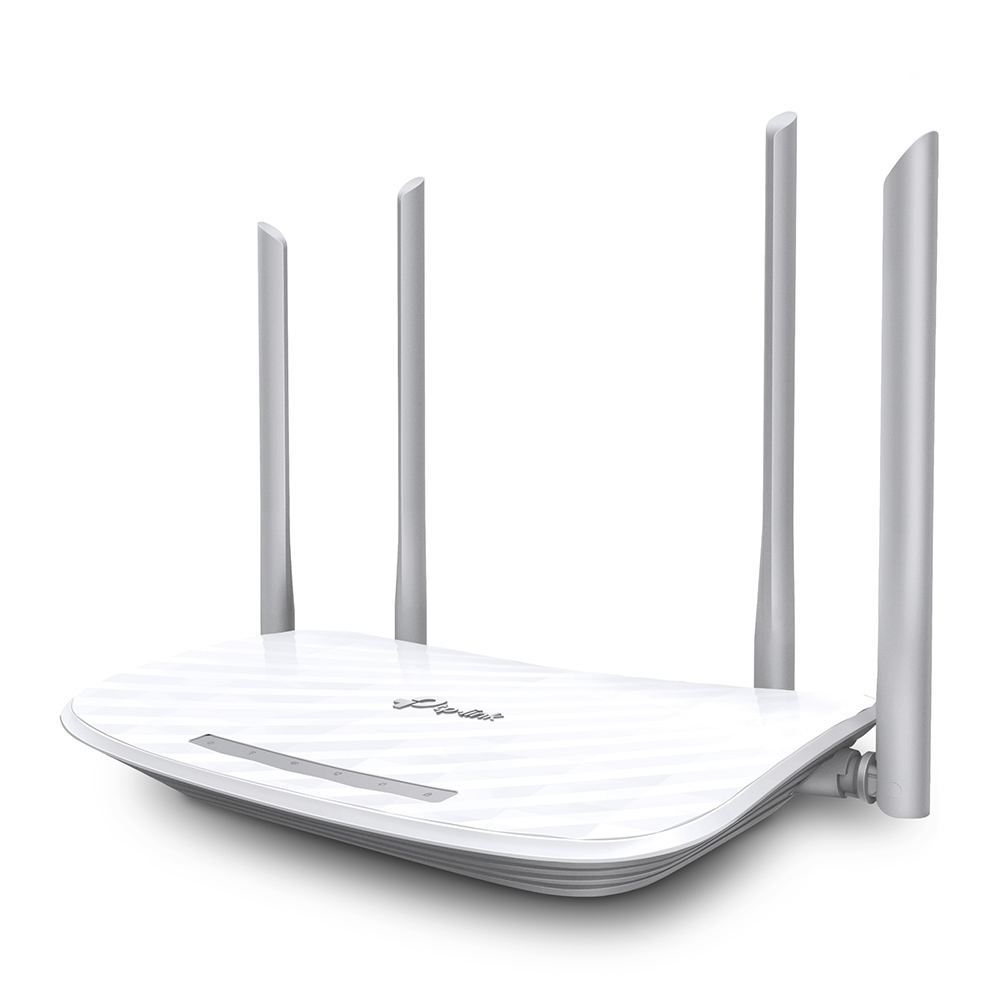

TP-Link Archer A5

Archer A5

Model Archer A5Part no. ARCHER A5 V4EAN 845973099916

67 specifications

SpeedWi-Fi 5 (802.11ac)
TypeTabletop router
ColourWhite
Ethernet WANYes
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
3GNo

See all specifications

Overview

Speed: Wi-Fi 5 (802.11ac)
Type: Tabletop router
Colour: White
Ethernet WAN: Yes
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
3G: No

Brand: TP-Link
Category: Wireless Router
Model: Archer A5
Part number: ARCHER A5 V4
EAN / UPC: 845973099916, 1210002615716, 6935364083137, 6935364084134
Also known as: TP-Link AC1200 Wireless Dual Band WiFi Router

Specifications

67 specifications in 18 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	No
WAN connection type	RJ-45

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u
Port forwarding	Yes
Dynamic DNS (DDNS)	Yes
Static route	Yes
VPN Passthrough	Yes
Receiver sensitivity	5GHz: 11a 54M: -73dBm 11ac VHT20 MCS8: -68dBm 11ac VHT40 MCS9: -64dBm 11ac VHT80 MCS9: -60dBm 2.4GHz: 11g 54M: -76dBm 11n HT20 MCS7: -74dBm 11n HT40 MCS7: -71dBm

Mobile network

Specification	Value
3G	No
4G	No

Ports & interfaces

Specification	Value

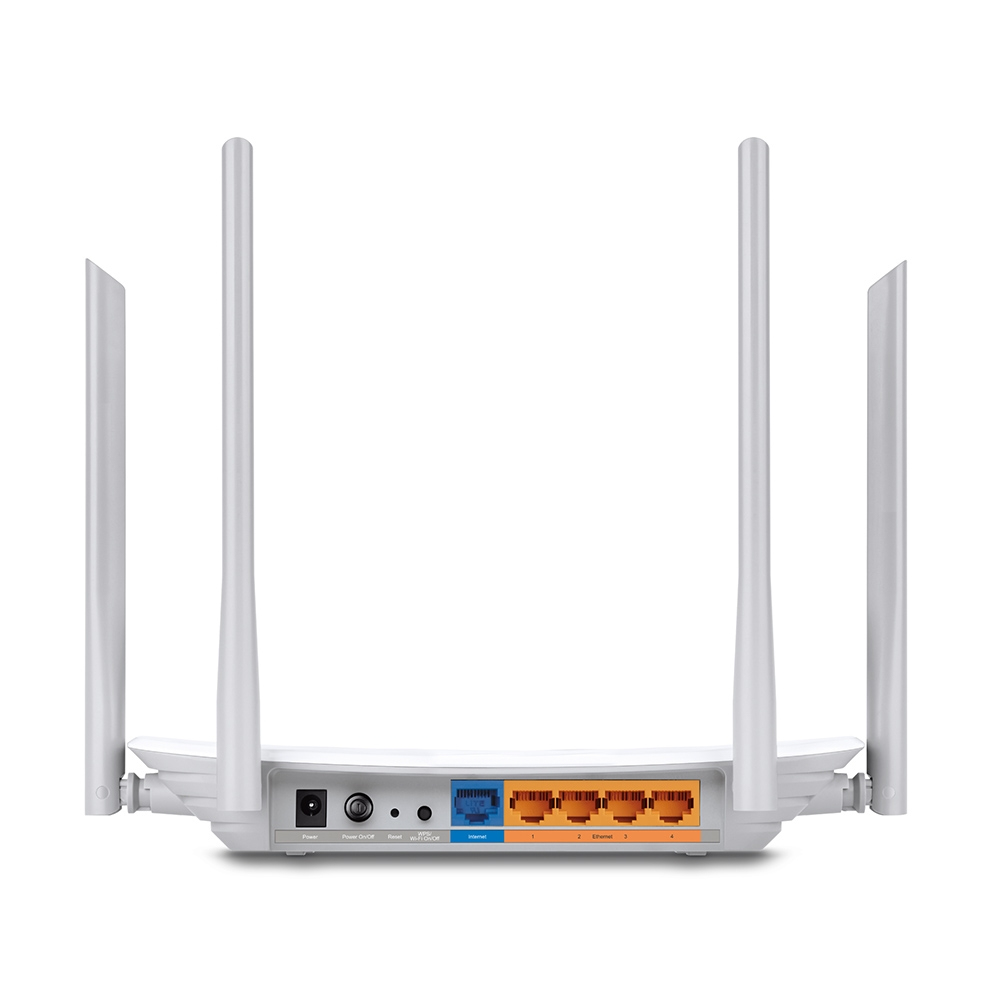

Ethernet LAN (RJ-45) ports	4
USB port	No
Memory card slot(s)	No

Management features

Specification	Value
Reset button	Yes
WPS push button	Yes

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Firewall	Yes
Access Control List (ACL)	Yes
DoS attack prevention	Yes
Filtering	Yes
MAC address filtering	Yes
IP address filtering	Yes
DMZ support	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes
Supported network protocols	IPv4, IPv6

Design

Specification	Value
Product type	Tabletop router
Product colour	White

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick installation guide	Yes

Certificates

Specification	Value
Certification	CE, FCC, RoHS

Antenna

Specification	Value
Antenna design	External
Antennas quantity	4

Power

Specification	Value
Power source type	DC
Output voltage	9 V
Output current	0.85 A

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C

System requirements

Specification	Value
Windows operating systems supported	Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows Vista, Windows XP
Linux operating systems supported	Yes
Mac operating systems supported	macOS
Mac compatibility	Yes

Weight & dimensions

Specification	Value
Depth	144.2 mm
Height	36.9 mm
Width	229.9 mm

Packaging data

Specification	Value
Package width	290 mm
Package depth	240 mm
Package height	76 mm
Package weight	682 g

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
