Archer A10
Model Archer A10Part no. ARCHER A10EAN 845973084226
51 specifications
- SpeedWi-Fi 5 (802.11ac)
- TypeTabletop router
- ColourBlack
- Ethernet WANYes
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
- Ethernet LAN (RJ-45) ports4
Overview
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Tabletop router
- Colour
- Black
- Ethernet WAN
- Yes
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Ethernet LAN (RJ-45) ports
- 4
- Brand
- TP-Link
- Category
- Wireless Router
- Model
- Archer A10
- Part number
- ARCHER A10
- EAN / UPC
- 845973084226, 6935364084226
- Also known as
- TP-Link Archer A10 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black
Specifications
51 specifications in 15 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 1733 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |

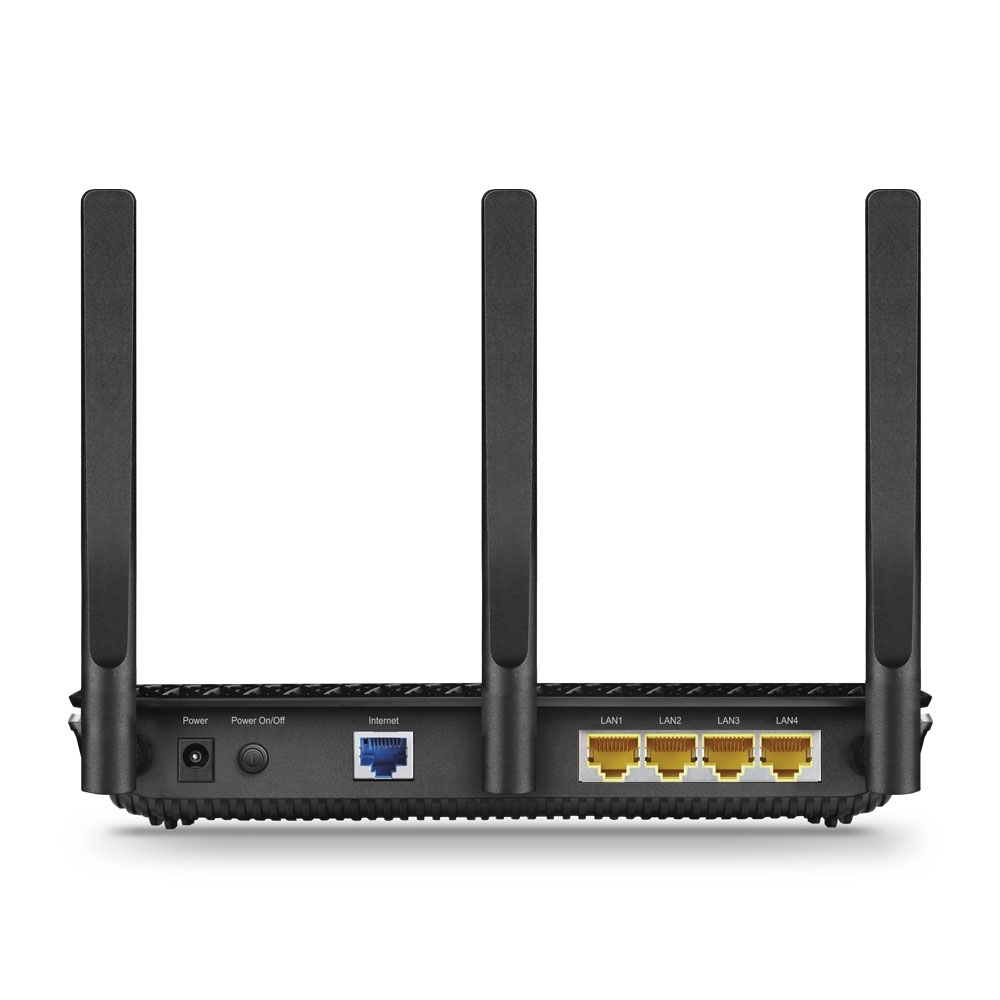

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |

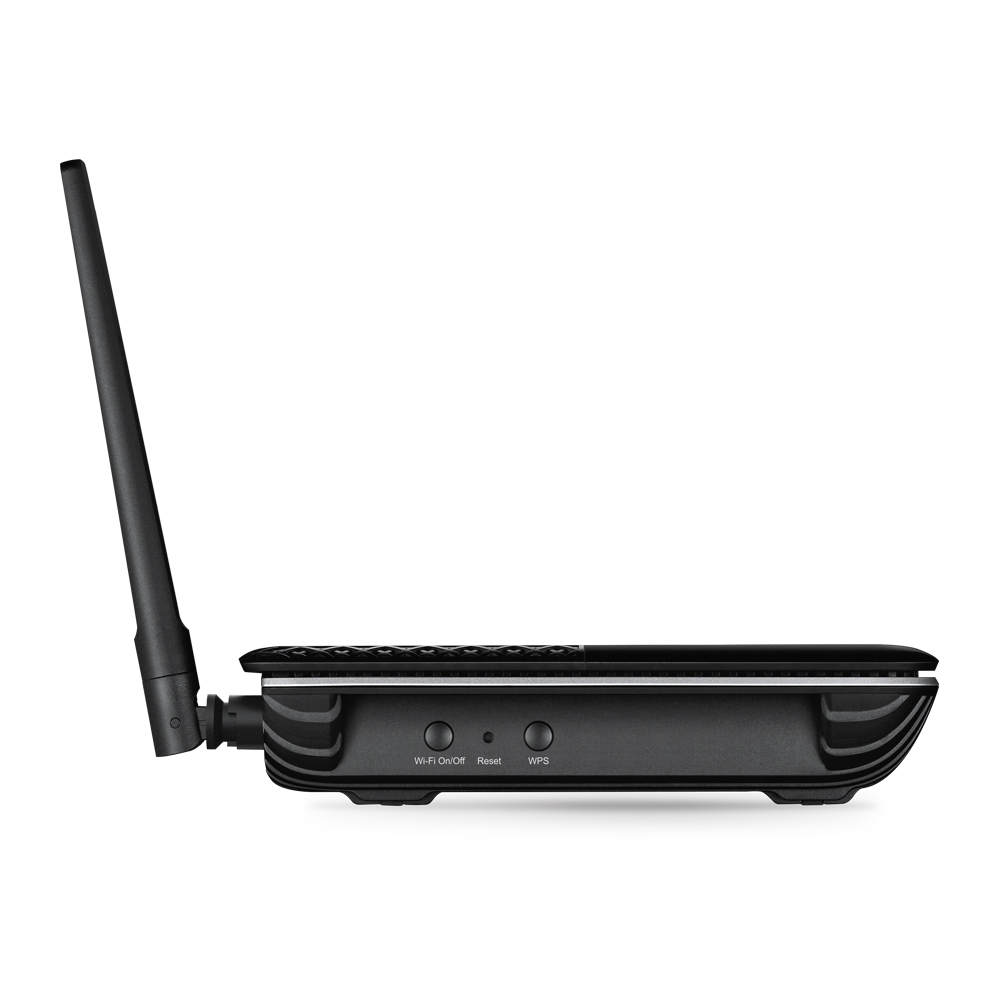

| Reset button | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 64-bit WEP, 128-bit WEP, SSID, WEP, WPA, WPA-PSK, WPA2 |
| Firewall | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| DoS attack prevention | Yes |
| Filtering | Yes |
| MAC address filtering | Yes |
| IP address filtering | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Switching protocols | IPv4, IPv6 |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | Black |
| LED indicators | LTE, Link, Power |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | DC |
| Manual | Yes |
| Quick installation guide | Yes |
| Quick start guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, RoHS, RCM, IC, NCC, BSMI |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antennas quantity | 3 |
| Detachable antenna(s) | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Output voltage | 12 V |
| Output current | 1.5 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 164 mm |
| Height | 36.8 mm |
| Width | 216 mm |
