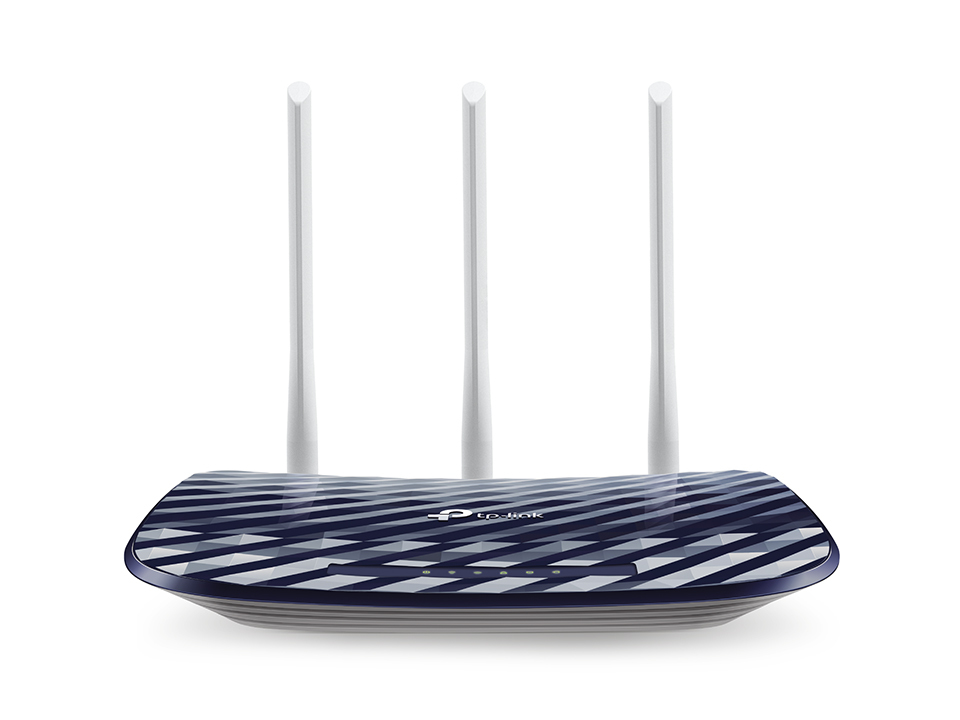

Archer A2 wireless router Fast Ethernet Dual-band (2.4 GHz
5 GHz)
Model A2Part no. ARCHERA2EAN 6935364086961
46 specifications
- SpeedWi-Fi 5 (802.11ac)
- TypeTabletop router
- Ethernet WANYes
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
- Ethernet LAN (RJ-45) ports4
- Antenna designExternal
Overview
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Tabletop router
- Ethernet WAN
- Yes
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Ethernet LAN (RJ-45) ports
- 4
- Antenna design
- External
- Brand
- TP-Link
- Category
- Wireless Router
- Model
- A2
- Part number
- ARCHERA2
- EAN / UPC
- 6935364086961
- Also known as
- TP-Link Archer A2 wireless router Fast Ethernet Dual-band (2.4 GHz / 5 GHz)
Specifications
46 specifications in 14 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 733 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (second band) | 433 Mbit/s |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Dynamic DNS (DDNS) | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| Maximum Tx power (2.4 GHz) | 20 dBmW |
| Maximum Tx power (5 GHz) | 23 dBmW |
| Receiver sensitivity | 5GHz: 11a 54M: -76dBm; 11ac VHT20 MCS8: -71dBm; 11ac VHT40 MCS9: -66dBm; 11ac VHT80 MCS9: -62dBm 2.4GHz: 11g 54M: -76dBm11n; HT20 MCS7: -73dBm; 11n HT40 MCS7: -71dBm |

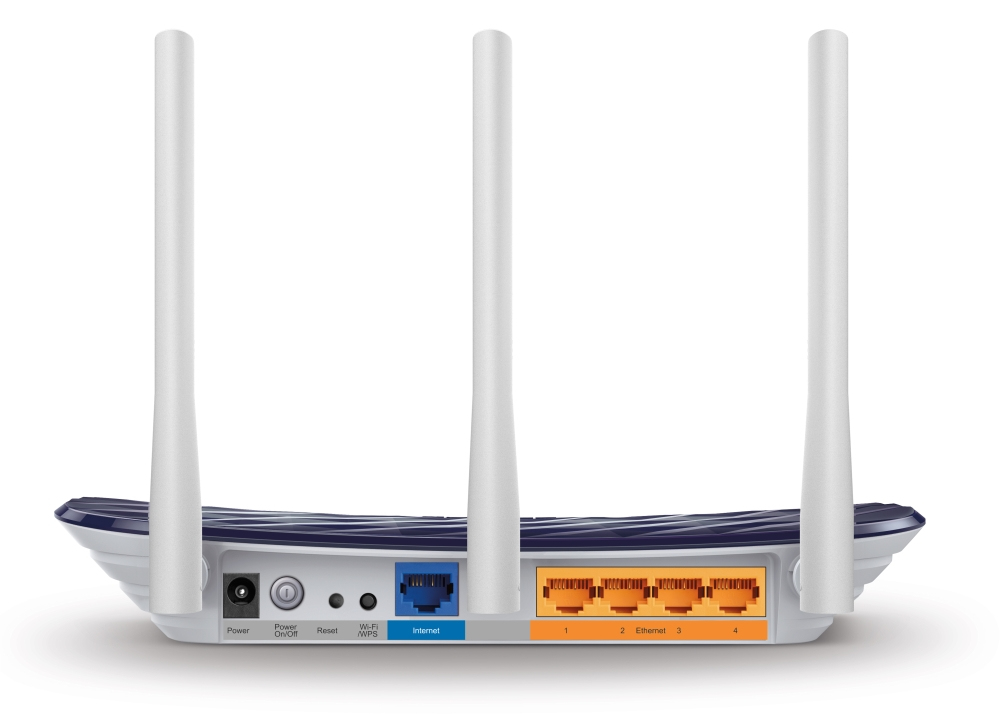

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | No |
Management features
| Specification | Value |
|---|---|
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| WPS push button | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise |
| Firewall | Yes |
| Firewall security | SPI Firewall, Access Control, IP & MAC Binding Application Layer Gateway |
| NAT functionality | Virtual Server Port Forwarding Auto-Discovery DMZ UPnP |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| Quick start guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, RoHS |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antennas quantity | 3 |
Power
| Specification | Value |
|---|---|
| Power source type | AC, DC |
| Output voltage | 9 V |
| Output current | 0.6 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 144 mm |
| Height | 35 mm |
| Width | 230 mm |
