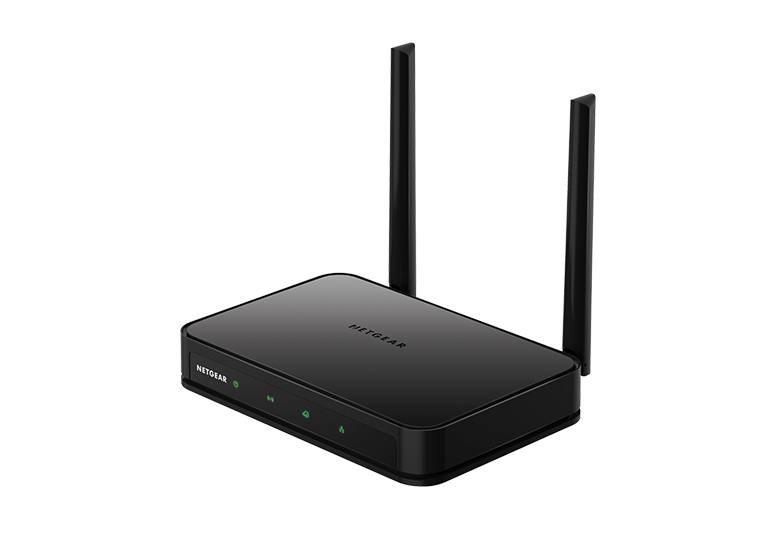

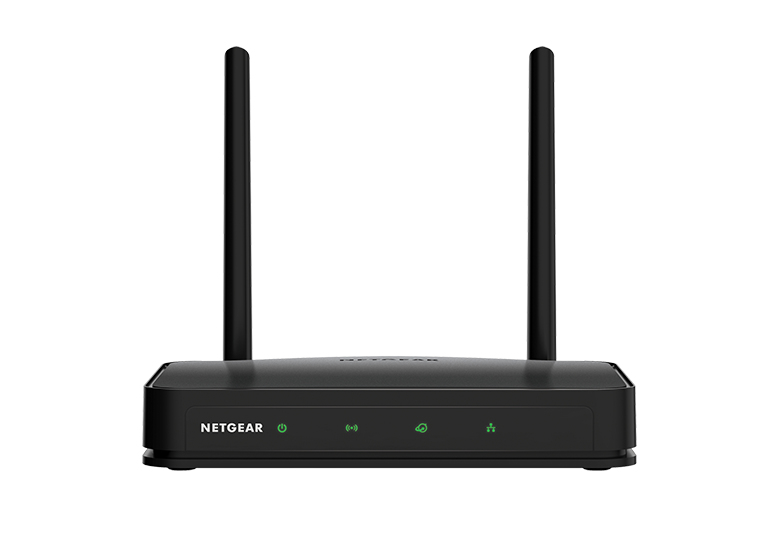

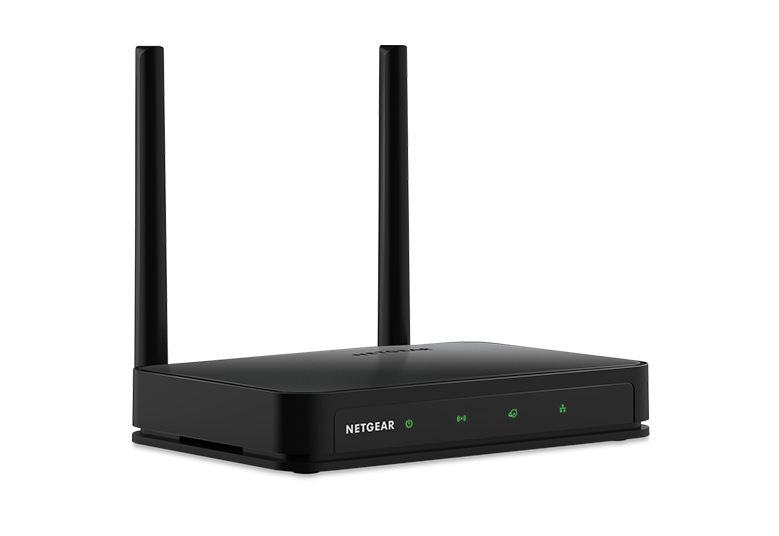

R6020 wireless router Fast Ethernet Dual-band (2.4 GHz
5 GHz) Black
Model R6020
41 specifications
- SpeedWi-Fi 5 (802.11ac)
- TypeTabletop router
- Weight250 g
- ColourBlack
- Ethernet WANYes
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Overview
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Tabletop router
- Weight
- 250 g
- Colour
- Black
- Ethernet WAN
- Yes
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Brand
- NETGEAR
- Category
- Wireless Router
- Model
- R6020
- Part number
- R6020
- Also known as
- NETGEAR R6020 wireless router Fast Ethernet Dual-band (2.4 GHz / 5 GHz) Black
Specifications
41 specifications in 15 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 750 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (second band) | 450 Mbit/s |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Networking standards | IEEE 802.11i |

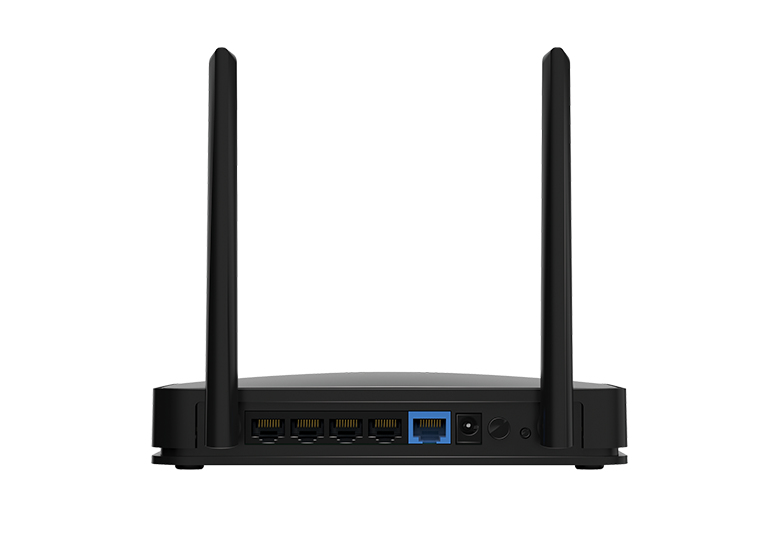

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | No |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 128-bit AES, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS |
| Firewall | Yes |
| Firewall security | NAT |
| Guest access | Yes |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | TCP/IP, RIP-1, RIP-2, DHCP, PPPoE, UPnP, SMB |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | Black |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick start guide | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antennas quantity | 2 |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 0 - 35 °C |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 142 mm |
| Height | 39 mm |
| Weight | 250 g |
| Width | 173 mm |
Packaging data
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
