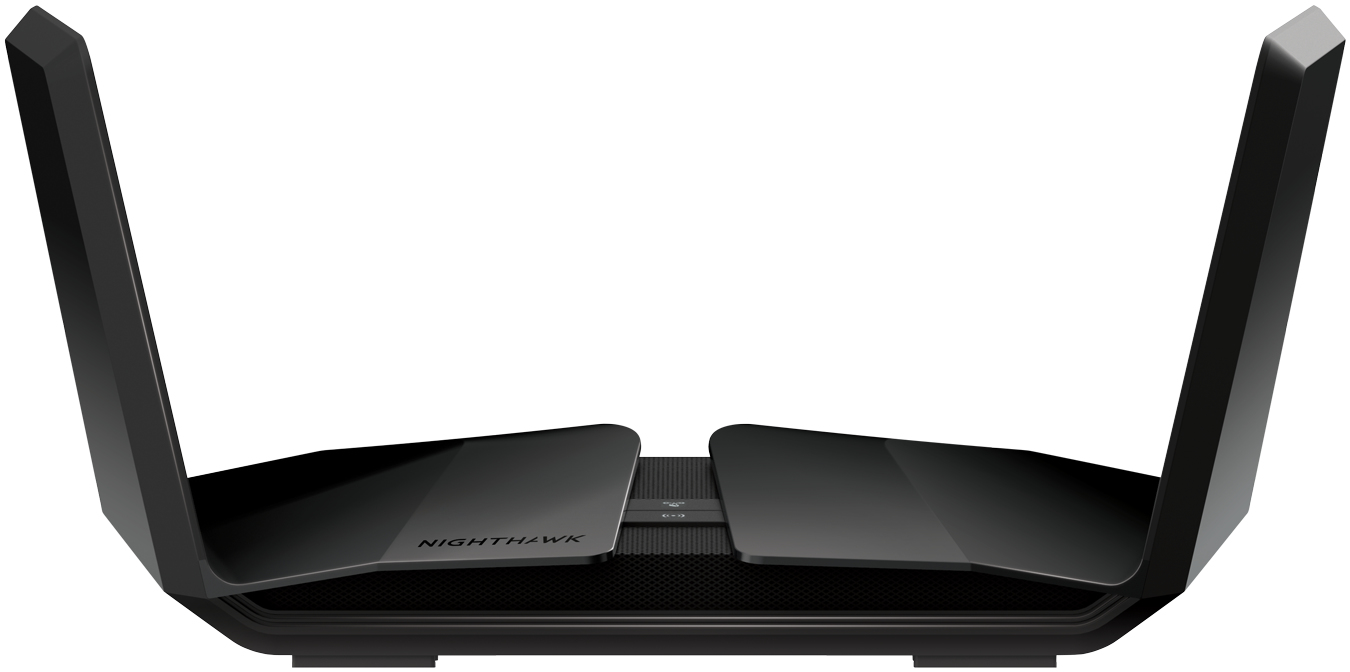

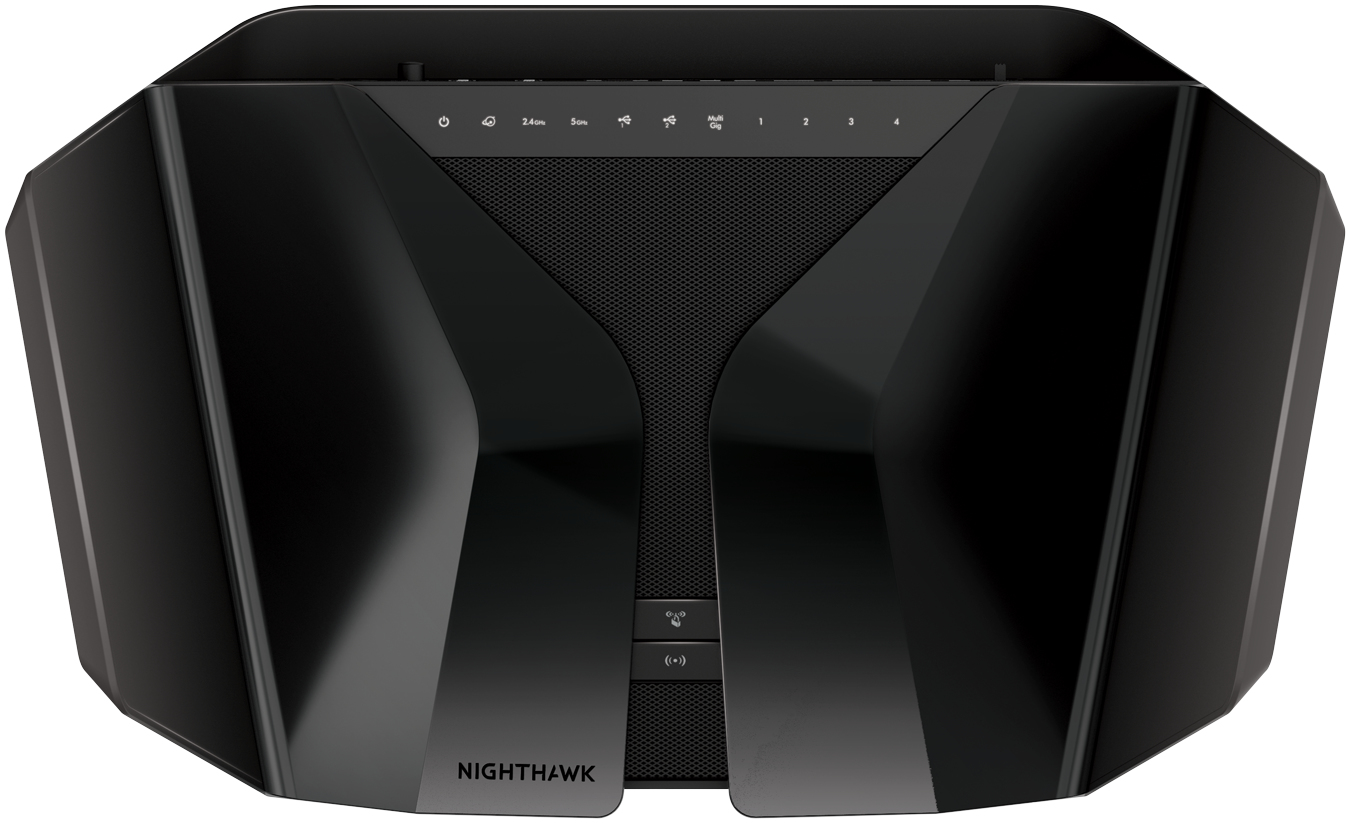

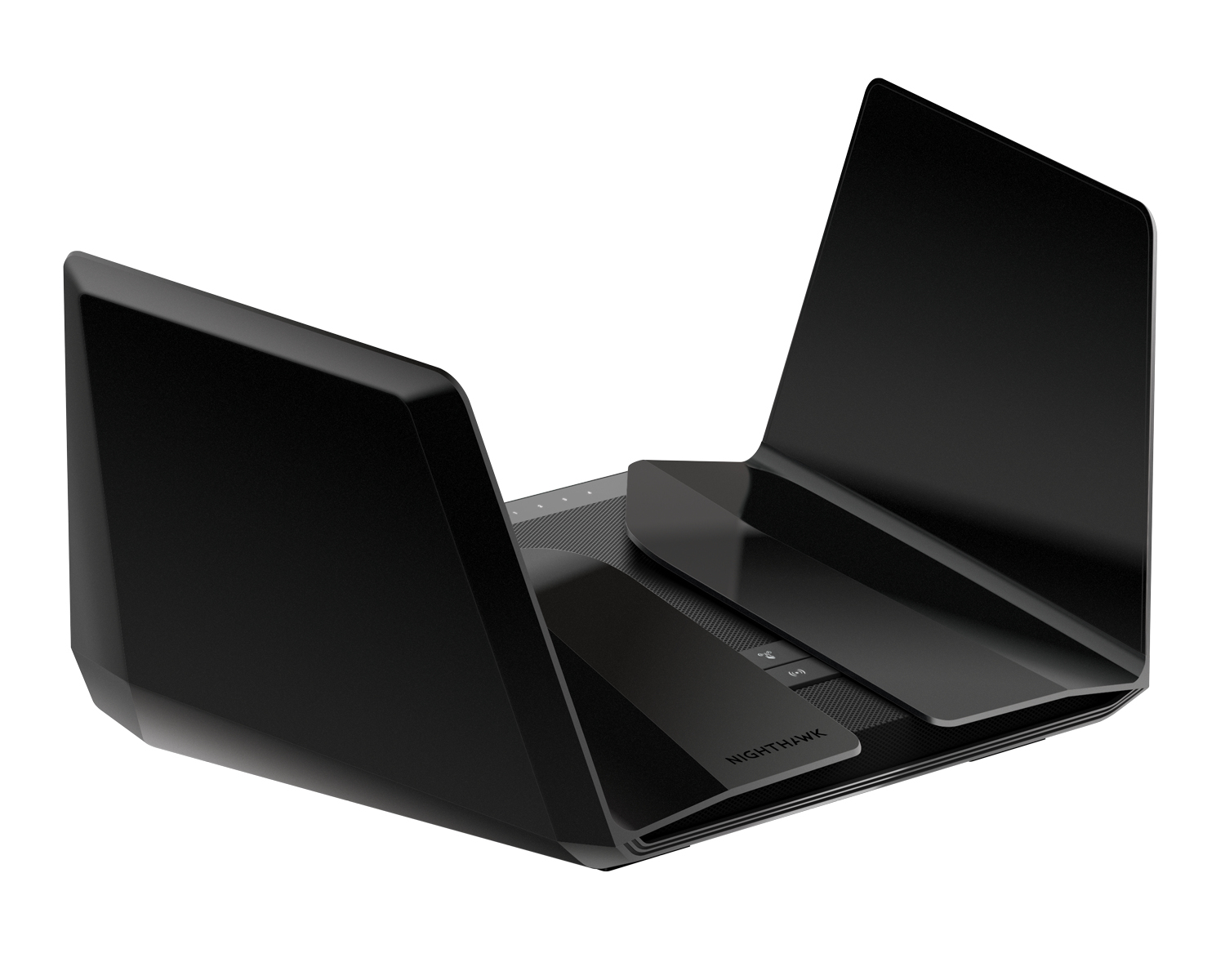

Nighthawk AX12
Model Nighthawk AX12Part no. RAX120-100EUSEAN 606449134773
62 specifications
- SpeedWi-Fi 6 (802.11ax)
- TypeTabletop router
- Weight1.36 kg
- ColourBlack
- Ethernet WANYes
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Overview
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Tabletop router
- Weight
- 1.36 kg
- Colour
- Black
- Ethernet WAN
- Yes
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Brand
- NETGEAR
- Category
- Wireless Router
- Model
- Nighthawk AX12
- Part numbers
- RAX120-100EUS, RAX120-100NAS
- EAN / UPC
- 606449134773, 606449134766
- Also known as
- NETGEAR Nighthawk AX12 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black
Specifications
62 specifications in 17 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 6000 Mbit/s |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Modulation | 1024-QAM |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Mobile network
| Specification | Value |
|---|---|
| 3G | No |
| 4G | No |
| 5G | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Memory card slot(s) | No |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Reset button | Yes |
| WPS push button | Yes |
Security
| Specification | Value |
|---|---|
| Guest access | Yes |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | IPv6 |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | Black |
| Indication light | Yes |
| LED indicators | LAN, Power, USB, WAN, WLAN |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick start guide | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antennas quantity | 8 |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 2200 MHz |
| Processor cores | 4 |
| Works with Amazon Alexa | Yes |
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
System requirements
| Specification | Value |
|---|---|
| Browser supported | Internet Explorer 11, Microsoft Edge, Chrome 55, Firefox 45, Safari 10 |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows XP |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Mac compatibility | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 70 mm |
| Height | 28.5 mm |
| Weight | 1.36 kg |
| Width | 310 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 249 mm |
| Package depth | 330 mm |
| Package height | 141 mm |
| Package weight | 2.32 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 289 mm |
| Master (outer) case length | 369 mm |
| Master (outer) case height | 387 mm |
| Master (outer) case gross weight | 6.08 kg |
| Products per master (outer) case | 2 pc(s) |
