AC2200 LTE Mesh Router (LBR20)
Model AC2200 LTE Mesh Router (LBR20)Part no. LBR20-100AUSEAN 606449148039
44 specifications
- SpeedWi-Fi 5 (802.11ac)
- TypeTabletop router
- Weight780 g
- ColourWhite
- Ethernet WANYes
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Overview
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Tabletop router
- Weight
- 780 g
- Colour
- White
- Ethernet WAN
- Yes
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Brand
- NETGEAR
- Category
- Wireless Router
- Model
- AC2200 LTE Mesh Router (LBR20)
- Part number
- LBR20-100AUS
- EAN / UPC
- 606449148039, 10606449148036
- Also known as
- NETGEAR AC2200 LTE Mesh Router (LBR20) wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) 4G White
Specifications
44 specifications in 13 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | Yes |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 2200 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Modulation | 256-QAM |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Mobile network
| Specification | Value |
|---|---|
| Mobile network generation | 4G |
| 4G standard | LTE |

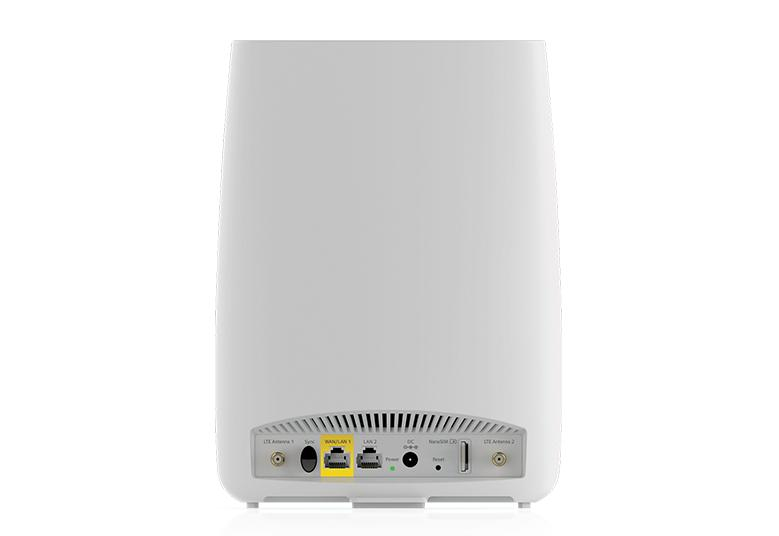

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | No |
| Memory card slot(s) | No |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Reset button | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 128-bit AES |
| Guest access | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | White |
| LED indicators | Power |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick start guide | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antenna connector type | SMA |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Output voltage | 12 V |
| Output current | 2.5 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 79 mm |
| Height | 226 mm |
| Weight | 780 g |
| Width | 170 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 203 mm |
| Package depth | 243 mm |
| Package height | 150 mm |
| Package weight | 1.52 kg |
| Package type | Box |
| Number of products included | 1 pc(s) |
