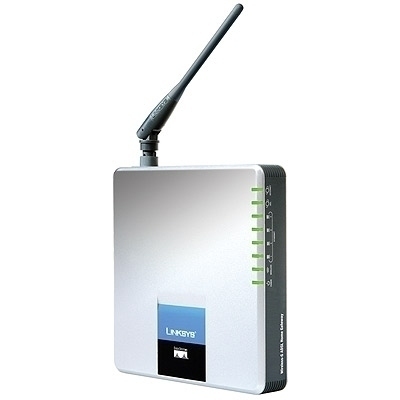

Wireless-G ADSL Home Gateway (Annex B)
Model Wireless-G ADSL Home Gateway (Annex B)Part no. WAG200G-DEEAN 4260039344544
28 specifications
- Speed0.053 Gbit/s
- Weight350 g
- Supports ISDN connectionNo
- ADSLYes
- Authentication methodPAP, CHAP
- Switching protocols4 10/100 Auto MDI/MDI-X LAN
Overview
- Speed
- 0.053 Gbit/s
- Weight
- 350 g
- Supports ISDN connection
- No
- ADSL
- Yes
- Authentication method
- PAP, CHAP
- Switching protocols
- 4 10/100 Auto MDI/MDI-X LAN
- Brand
- Linksys
- Category
- Wireless Router
- Model
- Wireless-G ADSL Home Gateway (Annex B)
- Part number
- WAG200G-DE
- EAN / UPC
- 4260039344544
- Also known as
- Linksys Wireless-G ADSL Home Gateway (Annex B) wireless router
Specifications
28 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.3, IEEE 802.3u |
| Supports ISDN connection | No |
| VPN support | VPN Passthrough: -IPSec -PPTP -L2TP |
| Receiver sensitivity | 18 dBm |
DSL features
| Specification | Value |
|---|---|
| ADSL | Yes |
| DSL specification | Annex B |
Security
| Specification | Value |
|---|---|
| Authentication method | PAP, CHAP |
| Filtering | Yes |
| MAC address filtering | Yes |
Protocols
| Specification | Value |
|---|---|
| Switching protocols | 4 10/100 Auto MDI/MDI-X LAN |
| Management protocols | NAT |
Design
| Specification | Value |
|---|---|
| LED indicators | DSL |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | -User Guide -CD-ROM -Setup Wizard -CD-ROM -Quick Installation |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 85% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 350 g |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 140 x 31.75 x 140 mm |
| Filtering description | ToD,URL,keyword, Java, ActiveX, Proxy, Cookie |
| Maximum data transfer rate | 0.053 Gbit/s |
| Minimum system requirements | -PC+ Network Adapter & TCP/IP -CD-ROM -Internet Explorer 5.0 / Netscape Navigator 4.7 -ADSL |
| Networking features | Wireless, Ethernet (1-4), DSL, Internet |
| Power supply type | 12VDC 1A |
| Supported data transfer rates | 18 dBm |
| Supported protocols | -IEEE 802.11g -IEEE 802.11b -IEEE 802.3u -IEEE 802.3, -g.992.1 (g.dmt) -g.992.2 (g.lite) -g.992.3 -g.992.5 -T1.413i2 |
| xDSL connection | Yes |
| Non-operating relative humidity (non-condensing) | 5 - 95% |
