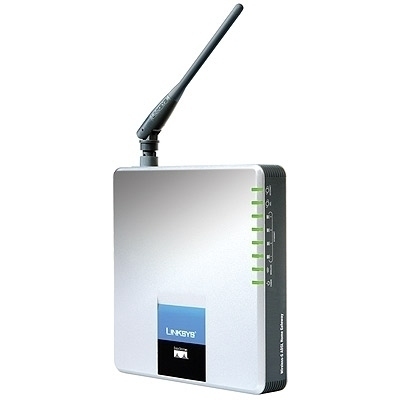

Linksys Wireless-G ADSL Home Gateway (Annex A)

Linksys Wireless-G ADSL Home Gateway (Annex A)

Model Wireless-G ADSL Home Gateway (Annex A)Part no. WAG200G-SE

28 specifications

Speed0.053 Gbit/s
Weight350 g
Supports ISDN connectionNo
ADSLYes
Authentication methodPAP, CHAP
Switching protocols4 10/100 Auto MDI/MDI-X LAN

See all specifications

Overview

Speed: 0.053 Gbit/s
Weight: 350 g
Supports ISDN connection: No
ADSL: Yes
Authentication method: PAP, CHAP
Switching protocols: 4 10/100 Auto MDI/MDI-X LAN

Brand: Linksys
Category: Wireless Router
Model: Wireless-G ADSL Home Gateway (Annex A)
Part numbers: WAG200G-SE, WAG200G, WAG200G-EW
Also known as: Linksys Wireless-G ADSL Home Gateway (Annex A) wireless router

Specifications

28 specifications in 10 groups

Network

Specification	Value
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.3, IEEE 802.3u
Supports ISDN connection	No
VPN support	VPN Passthrough: -IPSec -PPTP -L2TP
Receiver sensitivity	18 dBm

DSL features

Specification	Value
ADSL	Yes
DSL specification	Annex A

Security

Specification	Value
Authentication method	PAP, CHAP
Filtering	Yes
MAC address filtering	Yes

Protocols

Specification	Value
Switching protocols	4 10/100 Auto MDI/MDI-X LAN
Management protocols	NAT

Design

Specification	Value
LED indicators	DSL

Packaging content

Specification	Value
Bundled software	-User Guide -CD-ROM -Setup Wizard -CD-ROM -Quick Installation

Power

Specification	Value
Power over Ethernet (PoE)	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 85%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C

Weight & dimensions

Specification	Value
Weight	350 g

Other features

Specification	Value
Dimensions (WxDxH)	140 x 31.75 x 140 mm
Filtering description	ToD,URL,keyword, Java, ActiveX, Proxy, Cookie
Maximum data transfer rate	0.053 Gbit/s
Minimum system requirements	-PC+ Network Adapter & TCP/IP -CD-ROM -Internet Explorer 5.0 / Netscape Navigator 4.7 -ADSL
Networking features	Wireless, Ethernet (1-4), DSL, Internet
Power supply type	12VDC 1A
Supported data transfer rates	18 dBm
Supported protocols	-IEEE 802.11g -IEEE 802.11b -IEEE 802.3u -IEEE 802.3, -g.992.1 (g.dmt) -g.992.2 (g.lite) -g.992.3 -g.992.5 -T1.413i2
xDSL connection	Yes
Non-operating relative humidity (non-condensing)	5 - 95%
