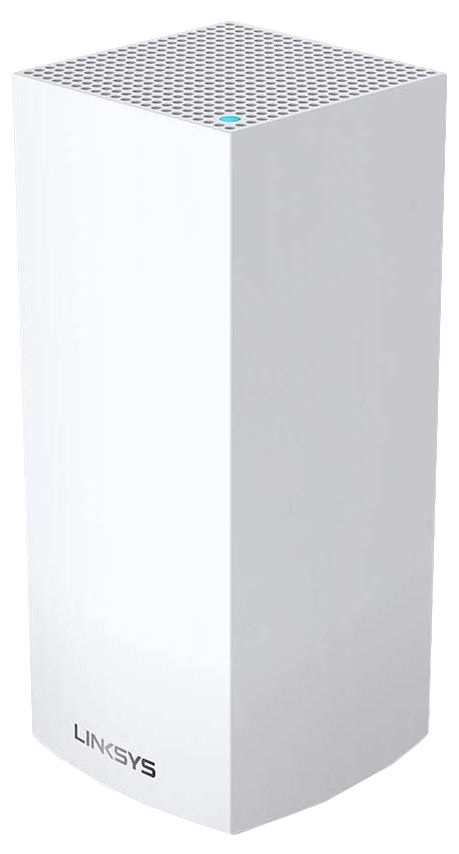

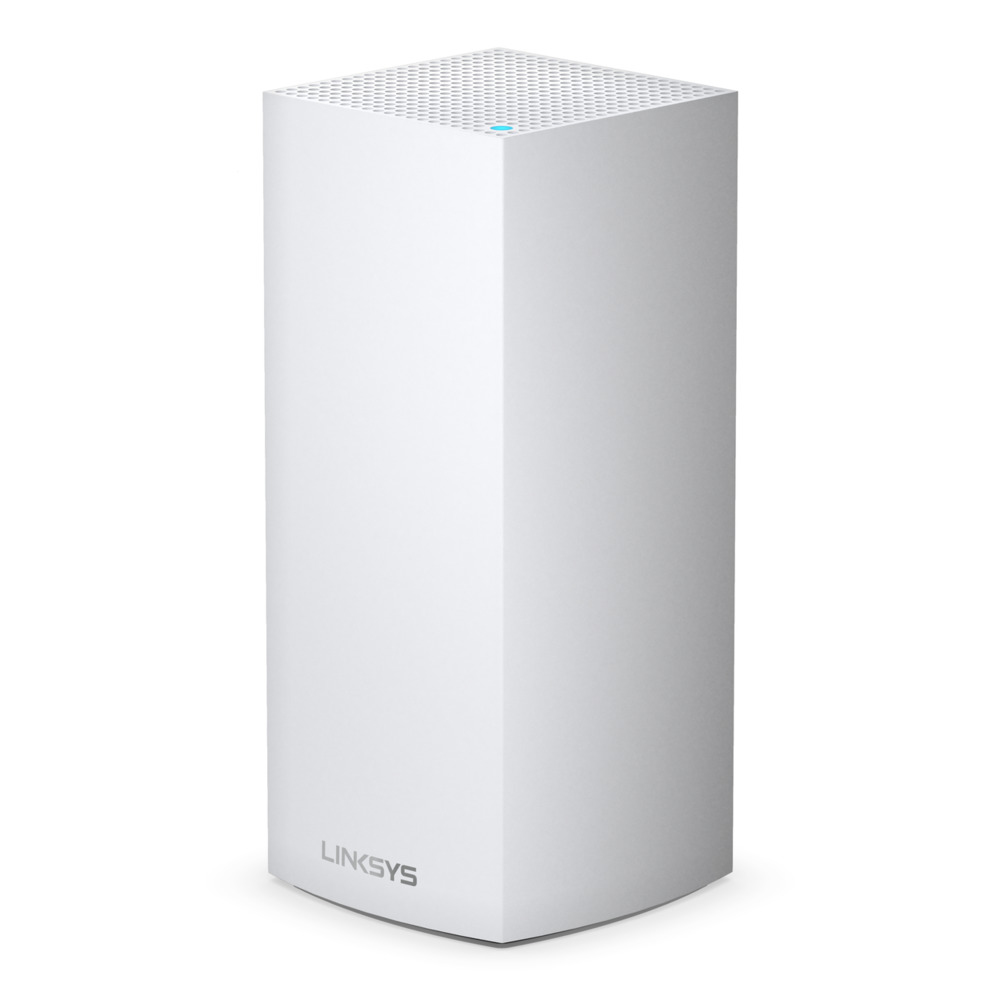

MX5300 wireless router Gigabit Ethernet Tri-band (2.4 GHz
5 GHz / 5 GHz) White
Model MX5300EAN 745883782932
55 specifications
- Memory1000 MB
- SpeedWi-Fi 6 (802.11ax)
- TypeTabletop router
- Weight1.59 kg
- ColourWhite
- Ethernet WANYes
Overview
- Memory
- 1000 MB
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Tabletop router
- Weight
- 1.59 kg
- Colour
- White
- Ethernet WAN
- Yes
- Brand
- Linksys
- Category
- Wireless Router
- Model
- MX5300
- Part numbers
- MX5300, MX5300-ME
- EAN / UPC
- 745883782932
- Also known as
- Linksys MX5300 wireless router Gigabit Ethernet Tri-band (2.4 GHz / 5 GHz / 5 GHz) White
Specifications
55 specifications in 14 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 5300 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 1147 Mbit/s |
| WLAN data transfer rate (second band) | 2402 Mbit/s |
| WLAN data transfer rate (third band) | 1733 Mbit/s |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Mobile network
| Specification | Value |
|---|---|
| 3G | No |
| 4G | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Memory card slot(s) | No |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Reset button | Yes |
| Intelligent Mesh technology | Yes |
| WPS push button | Yes |
| MU-MIMO technology | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA2, WPA3 |
| Firewall | Yes |
| Guest access | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| Parental control | Yes |
Protocols
| Specification | Value |
|---|---|
| Universal Plug and Play (UPnP) | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | White |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC |
Antenna
| Specification | Value |
|---|---|
| Antenna design | Internal |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 2200 MHz |
| Processor cores | 4 |
| Internal memory | 1000 MB |
| Flash memory | 512 MB |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 12 V |
| Output current | 4 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 114.3 mm |
| Height | 243.8 mm |
| Weight | 1.59 kg |
| Width | 114.3 mm |
