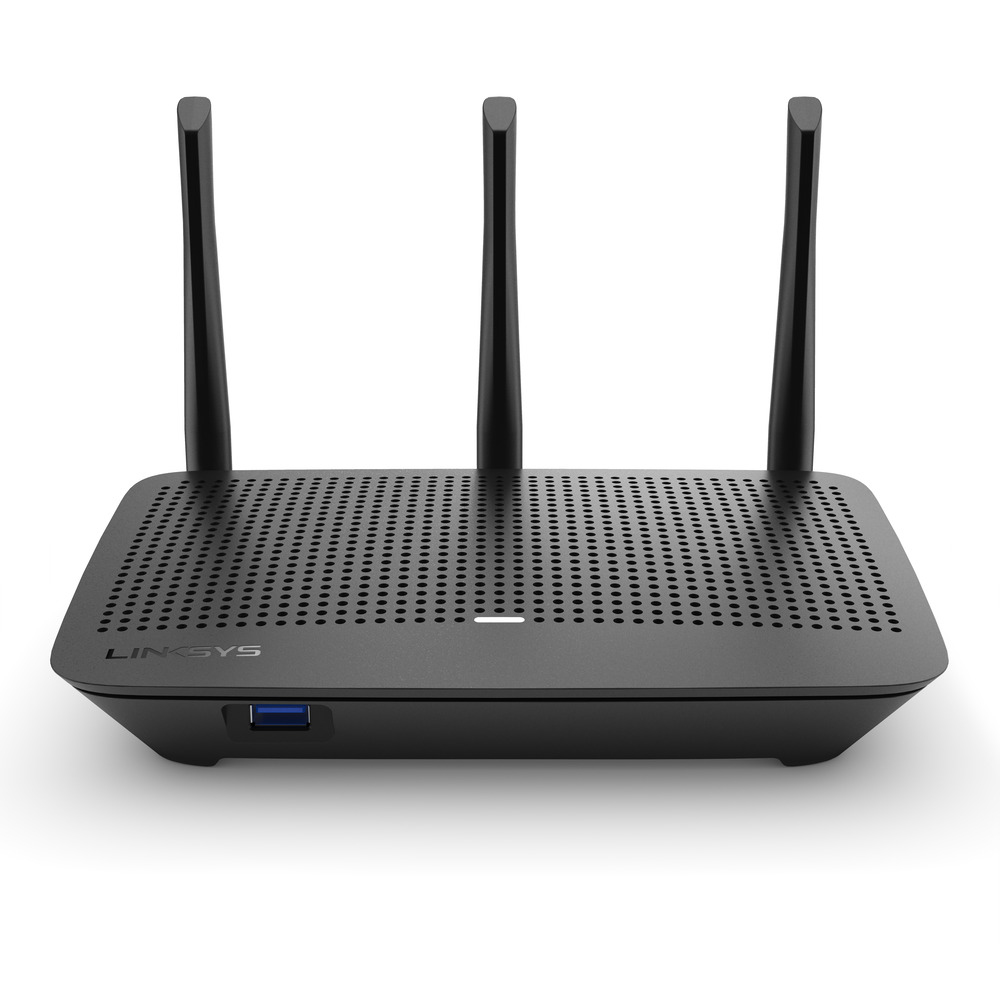

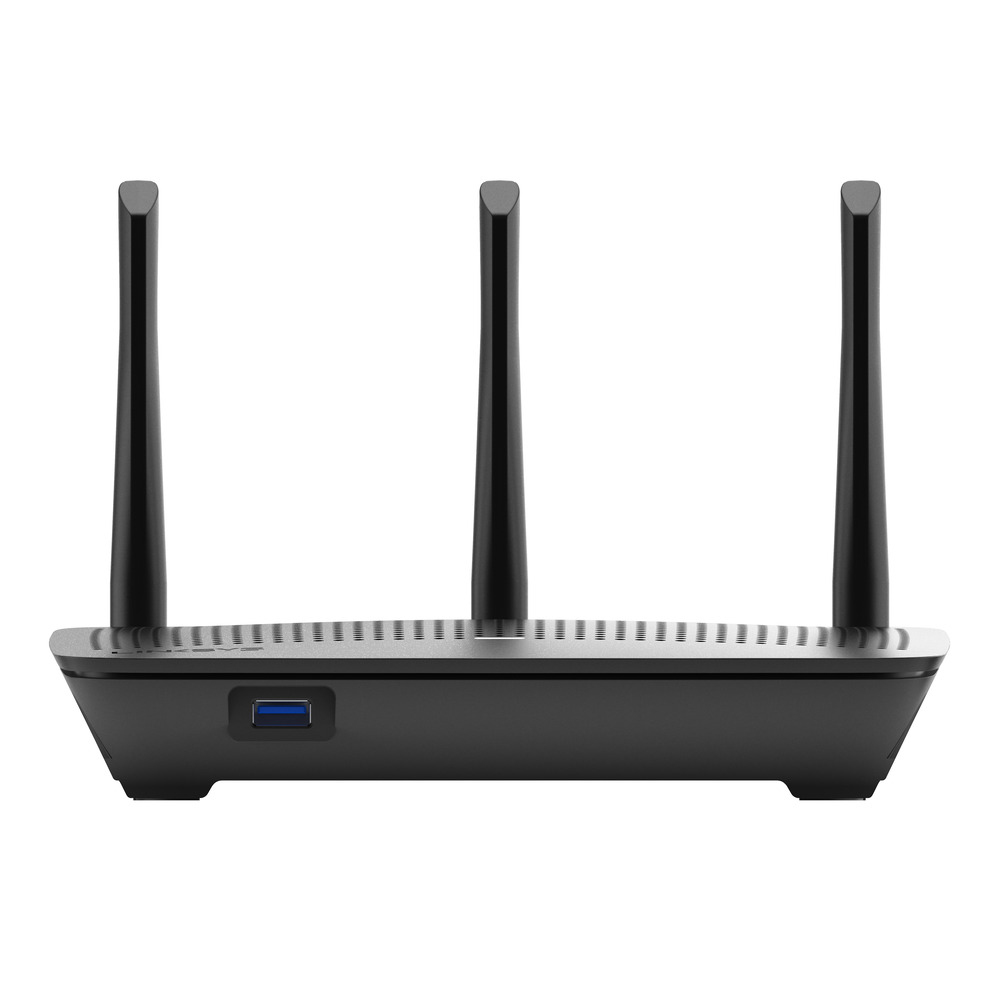

Linksys EA7500 MAX-STREAM Dual-Band WiFi 5 Router

EA7500 MAX-STREAM Dual-Band WiFi 5 Router

Model EA7500V3Part no. EA7500V3-EUEAN 745883791446

49 specifications

SpeedWi-Fi 5 (802.11ac)
TypeTabletop router
Weight558 g
ColourBlack
Ethernet WANYes
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)

See all specifications

Overview

Speed: Wi-Fi 5 (802.11ac)
Type: Tabletop router
Weight: 558 g
Colour: Black
Ethernet WAN: Yes
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)

Brand: Linksys
Category: Wireless Router
Model: EA7500V3
Part number: EA7500V3-EU
EAN / UPC: 745883791446, 4260184669486
Also known as: Linksys EA7500 MAX-STREAM Dual-Band WiFi 5 Router

Specifications

49 specifications in 17 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	No

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1900 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Mobile network

Specification	Value
Mobile network generation	Not supported

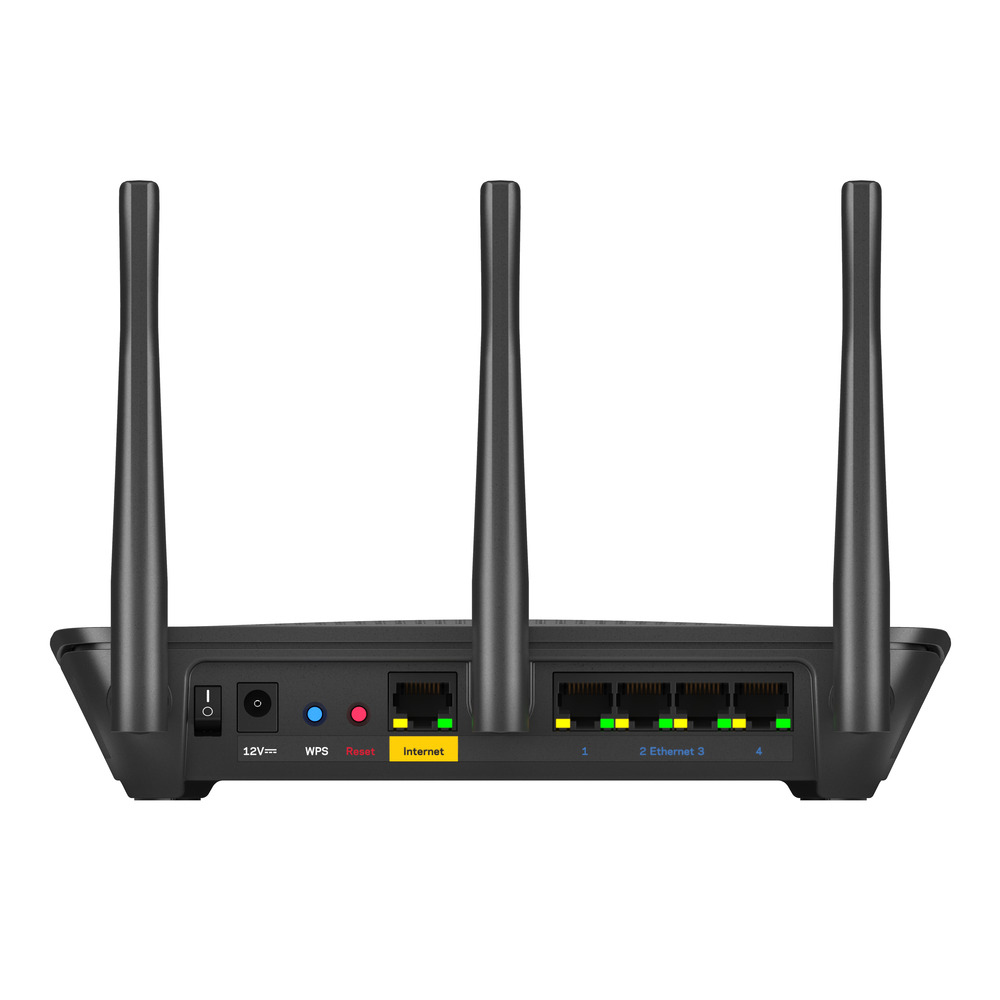

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Memory card slot(s)	No
DC-in jack	Yes

Management features

Specification	Value
Web-based management	Yes
Reset button	Yes
MU-MIMO technology	Yes

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, WPA2-Enterprise, WPA2-PSK

Design

Specification	Value
Product type	Tabletop router
Product colour	Black
LED indicators	LAN, WPS
On/off switch	Yes

Certificates

Specification	Value
Certification	FCC B

Antenna

Specification	Value
Antenna design	External
Antennas quantity	3
Detachable antenna(s)	Yes

Features

Specification	Value
Built-in processor	Yes
Processor cores	2

Power

Specification	Value
Power source type	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Output voltage	12 V
Output current	2 A

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 80%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-20 - 60 °C

System requirements

Specification	Value
Windows operating systems supported	Windows 10, Windows 7, Windows 8.1
Mac operating systems supported	Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5

Weight & dimensions

Specification	Value
Depth	257 mm
Height	56 mm
Weight	558 g
Width	184 mm

Packaging data

Specification	Value
Number of products included	1 pc(s)

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
