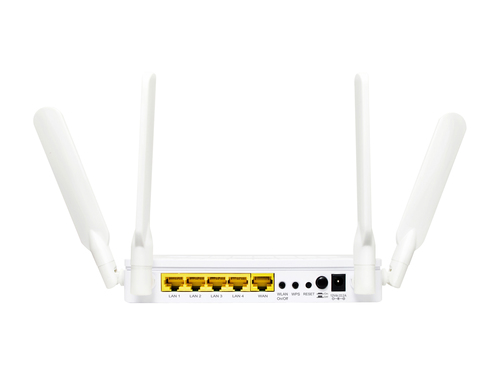

LevelOne WGR-8032 wireless router Gigabit Ethernet Dual-band (2.4 GHz

5 GHz) White

Model WGR-8032EAN 4015867199381

70 specifications

Memory128 MB
SpeedWi-Fi 5 (802.11ac)
TypeTabletop router
Weight355 g
ColourWhite
Ethernet WANYes

See all specifications

Overview

Memory: 128 MB
Speed: Wi-Fi 5 (802.11ac)
Type: Tabletop router
Weight: 355 g
Colour: White
Ethernet WAN: Yes

Brand: LevelOne
Category: Wireless Router
Model: WGR-8032
Part number: WGR-8032
EAN / UPC: 4015867199381
Also known as: LevelOne WGR-8032 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) White

Specifications

70 specifications in 18 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	No

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1300 Mbit/s
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	165 channels
Maximum indoor range	50 m

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Automatic channel selection	Yes
VPN support	PPTP, IPSec, L2TP Passthrough
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11b)	20 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11g)	20 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n)	17 dBmW
Receiver sensitivity	2.4G 802.11n (20MHZ_MSC0): (-85) dBm 802.11n (40MHZ_MCS0): (-82) dBm 802.11g 6Mbps: (-85) dBm 802.11g 54Mbps: (-68) dBm 802.11b 1Mbps: (-83) dBm 802.11b 11Mbps: (-76) dBm 5GHz: 802.11a 6Mbps: (-85) dBm 802.11a 54Mbps: (-65) dBm 802.11n (20MHZ_MCS0): (-82) dBm 802.11n (40MHZ_MCS0): (-79) dBm 802.11ac

Mobile network

Specification	Value
3G	No
4G	No

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	No
Memory card slot(s)	No
DC-in jack	Yes

Management features

Specification	Value
Web-based management	Yes
Quality of Service (QoS) support	Yes
Reset button	Yes
WPS push button	Yes

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, 802.1x RADIUS, AES, TKIP, WPA, WPA-RADIUS, WPA2, WPA2-PSK
Firewall	Yes
Firewall security	Virtual Server
Filtering	Yes
MAC address table	20 entries
DMZ support	Yes
Network address translation (NAT)	Yes

Design

Specification	Value
Product type	Tabletop router
Product colour	White
LED indicators	Activity, Link, Power, WLAN

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
Quick start guide	Yes

Certificates

Specification	Value
Certification	CE

Antenna

Specification	Value
Antenna design	External
Antennas quantity	4

Features

Specification	Value
Internal memory	128 MB
Flash memory	8 MB

Power

Specification	Value
Output voltage	12 V

Operational conditions

Specification	Value
Operating relative humidity (H-H)	20 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	20 - 95%
Storage temperature (T-T)	-20 - 70 °C

Weight & dimensions

Specification	Value
Depth	118 mm
Height	30 mm
Weight	355 g
Width	174 mm

Packaging data

Specification	Value
Package width	220 mm
Package depth	245 mm
Package height	71 mm
Package weight	710 g
Package type	Box

Logistics data

Specification	Value
Country of origin	Taiwan
Master (outer) case width	264 mm
Master (outer) case length	475 mm
Master (outer) case height	384 mm
Master (outer) case gross weight	7.8 kg
Products per master (outer) case	10 pc(s)

Other features

Specification	Value
Frequency band	2.4 ~ 2.4835, 5.15 ~ 5.25, 5.25 ~ 5.825 GHz
Input current	1.5 A
WLAN data transfer rates supported	11,54,450,1300 Mbit/s
