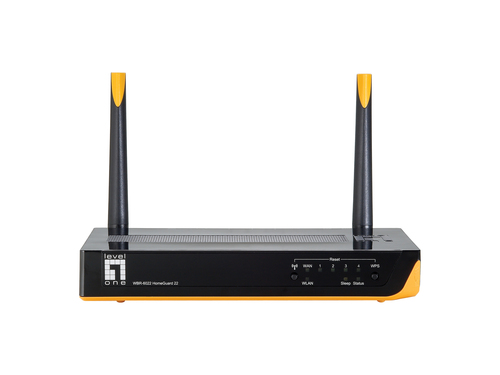

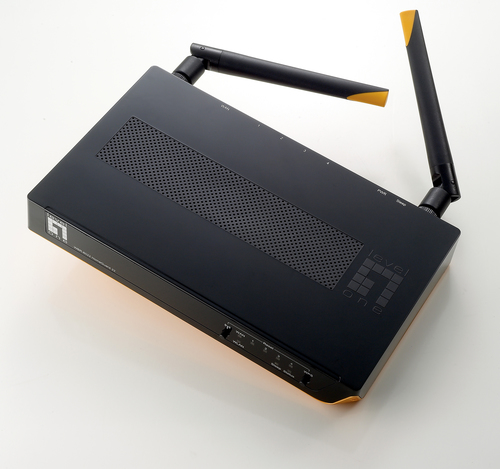

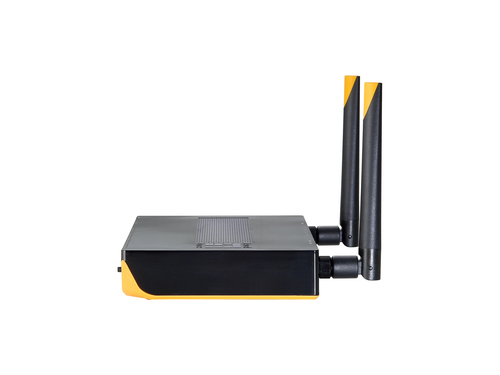

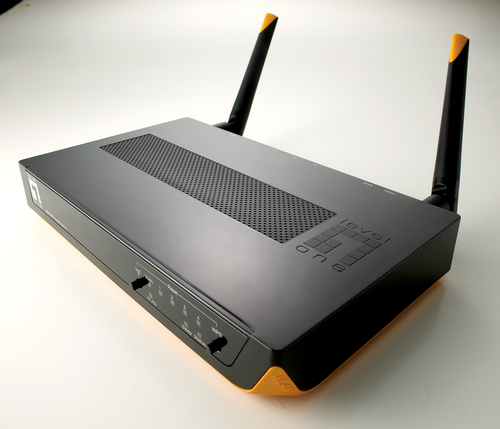

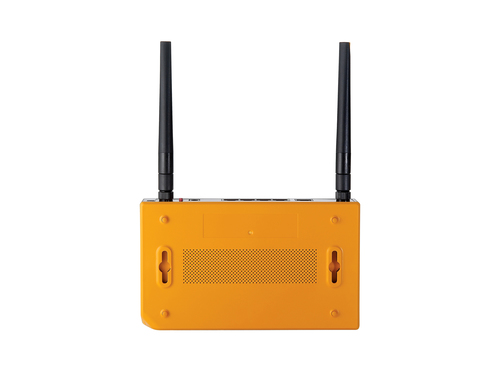

LevelOne 300Mbps Wireless HomeGuard 22 Router

Model WBR-6022EAN 878742007386

69 specifications

SpeedWi-Fi 4 (802.11n)
TypePortable router
ColourBlack, Yellow
Ethernet WANYes
Wi-Fi bandSingle-band (2.4 GHz)
3GNo

See all specifications

Overview

Speed: Wi-Fi 4 (802.11n)
Type: Portable router
Colour: Black, Yellow
Ethernet WAN: Yes
Wi-Fi band: Single-band (2.4 GHz)
3G: No

Brand: LevelOne
Category: Wireless Router
Model: WBR-6022
Part number: WBR-6022
EAN / UPC: 878742007386, 4015867150450
Also known as: LevelOne 300Mbps Wireless HomeGuard 22 Router

Specifications

69 specifications in 18 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	Yes
SIM card slot	No
3G/4G USB modem compatibility	No
WAN connection type	RJ-45

Wireless LAN features

Specification	Value
Wi-Fi band	Single-band (2.4 GHz)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rate (first band)	11 Mbit/s
WLAN data transfer rate (second band)	54 Mbit/s
WLAN data transfer rate (third band)	300 Mbit/s
Channels quantity	13 channels

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Auto MDI/MDI-X	Yes

Mobile network

Specification	Value
3G	No
4G	No

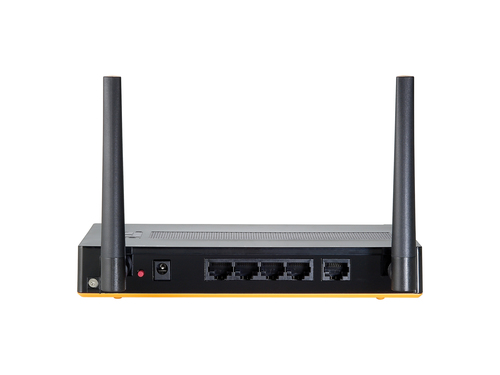

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	No
DC-in jack	Yes

Management features

Specification	Value
Quality of Service (QoS) support	Yes
Reset button	Yes

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, TKIP, WPA-PSK, WPA2-PSK
DoS attack prevention	Yes
DMZ support	Yes
Network address translation (NAT)	Yes

Protocols

Specification	Value
DHCP client	Yes
Universal Plug and Play (UPnP)	Yes
Supported network protocols	PPPoE, PPTP, L2TP, HTTP

Design

Specification	Value
Product type	Portable router
Product colour	Black, Yellow
Indication light	Yes
LED indicators	Yes
On/off switch	Yes

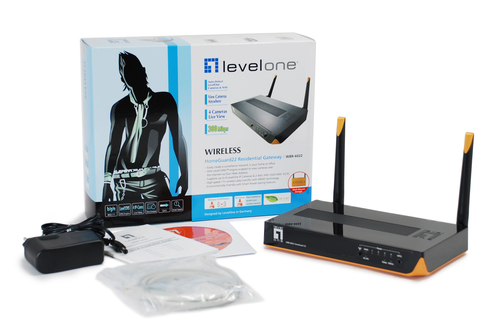

Packaging content

Specification	Value
Manual	Yes
Quick installation guide	Yes
Quick start guide	Yes

Certificates

Specification	Value
Certification	CE, FCC

Antenna

Specification	Value
Antenna design	Internal & external
Antenna gain level (max)	2 dBi
Antennas quantity	3
Detachable antenna(s)	Yes

Power

Specification	Value
Power source type	DC
Output voltage	5 V
Output current	1.2 A

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C

System requirements

Specification	Value
Windows operating systems supported	Windows 2000
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Mac compatibility	Yes

Weight & dimensions

Specification	Value
Depth	112 mm
Height	29 mm
Width	187 mm

Packaging data

Specification	Value
Package width	200 mm
Package depth	260 mm
Package height	75 mm
Package weight	840 g
Number of products included	1 pc(s)

Logistics data

Specification	Value
Country of origin	China
Master (outer) case width	405 mm
Master (outer) case length	425 mm
Master (outer) case height	290 mm
Master (outer) case gross weight	4.9 kg
Products per master (outer) case	10 pc(s)
